Dalian International Conference Center
Dalian, China
© Shu He
© Coop Himmelb(l)au
Dalian International Conference Center
Dalian, China

project description

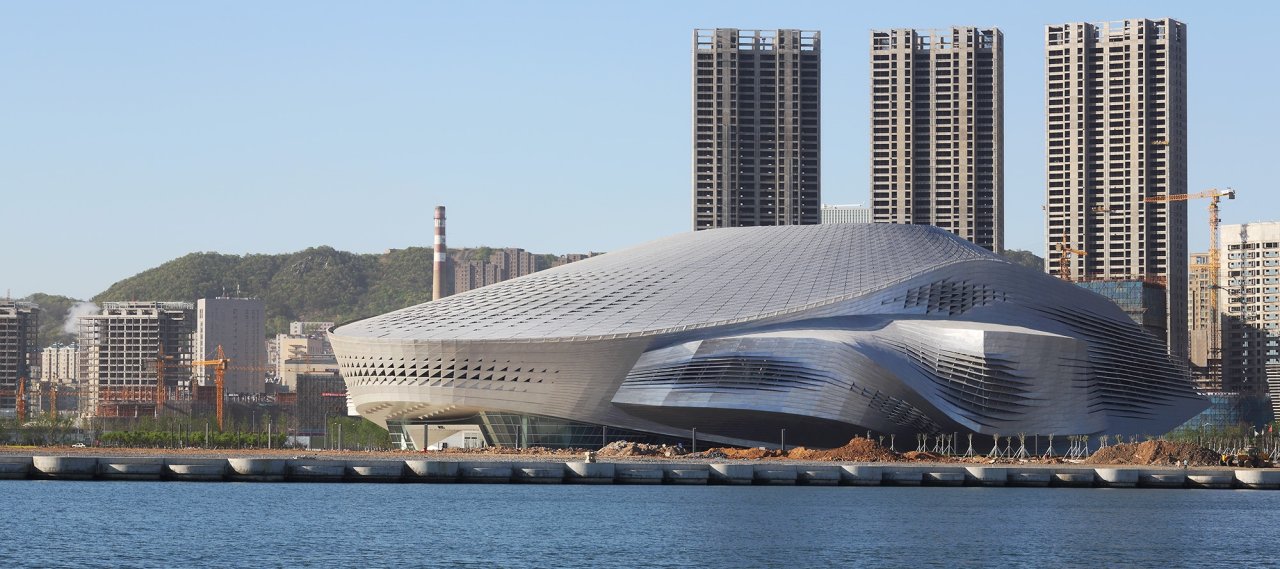

The Dalian Conference Center combines various different functions on a total floor area of 100,000 m² in a hybrid building, including a 7,000-capacity, state-of-the-art conference centre, a 1,800-seat opera and an exhibition centre. The free-formed main conference hall is the core of the DCC, envisaged as a reinforced-concrete shell. Six smaller, box-shaped conference halls of various sizes are arranged around the main conference hall.

structure

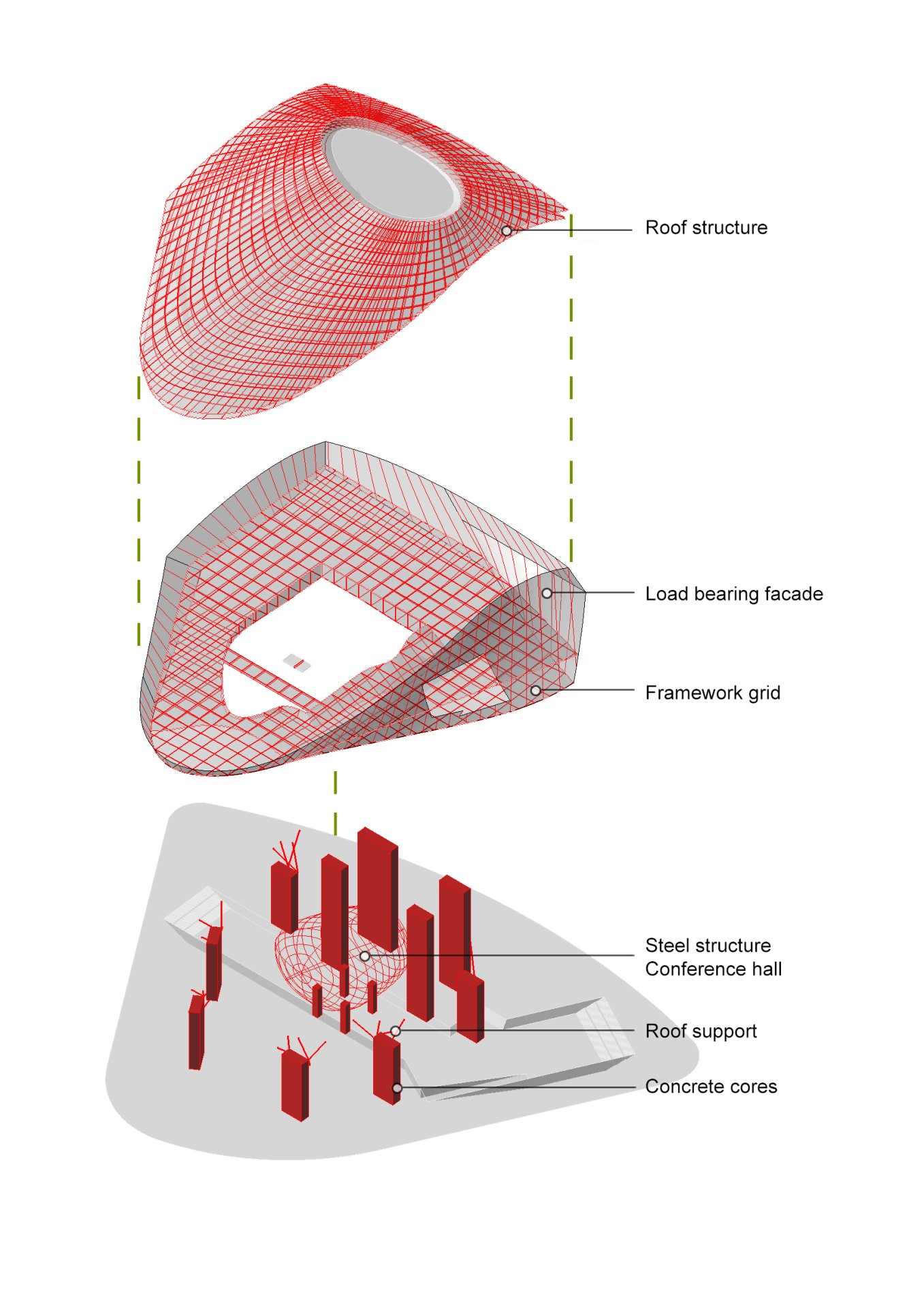

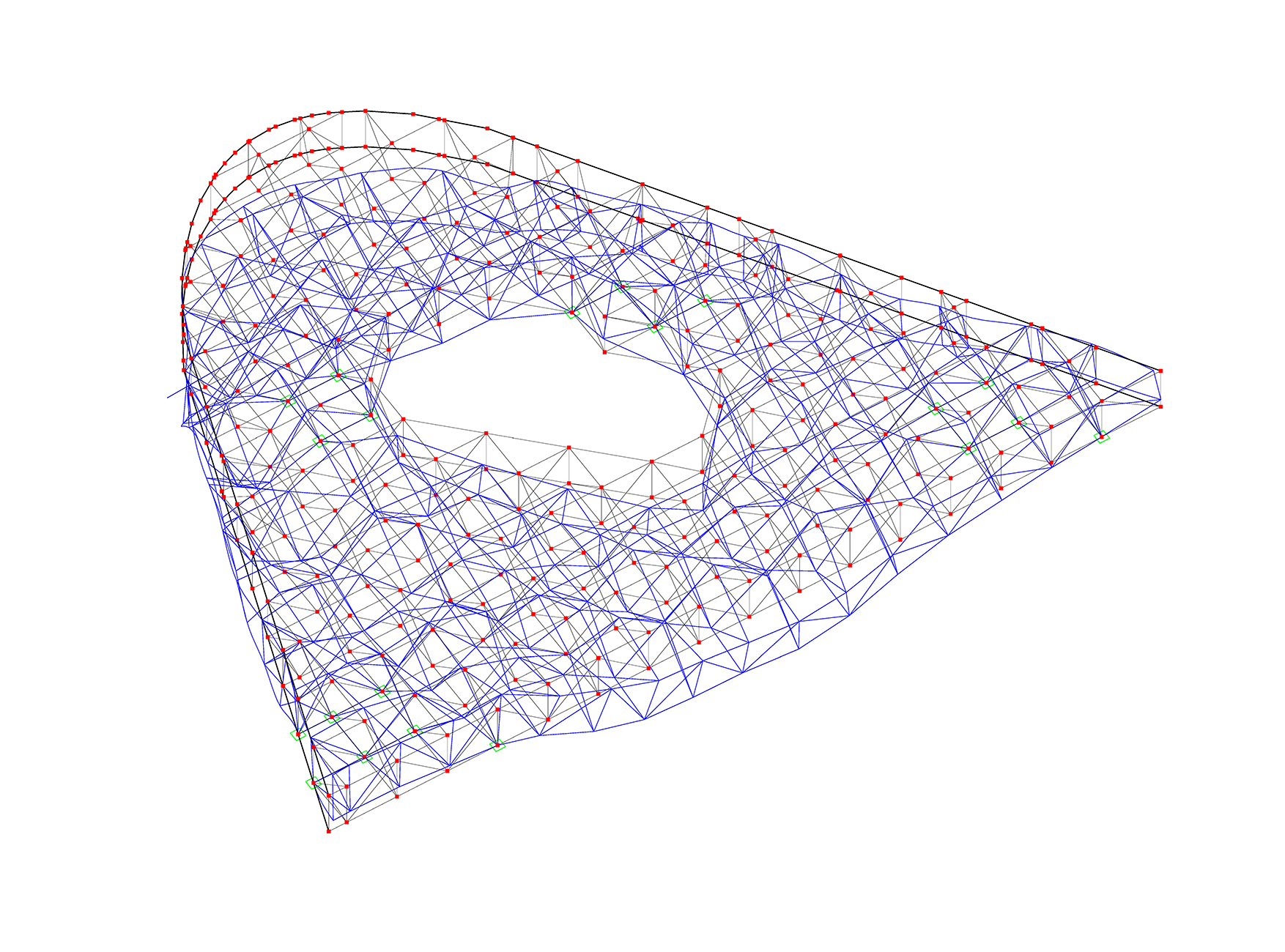

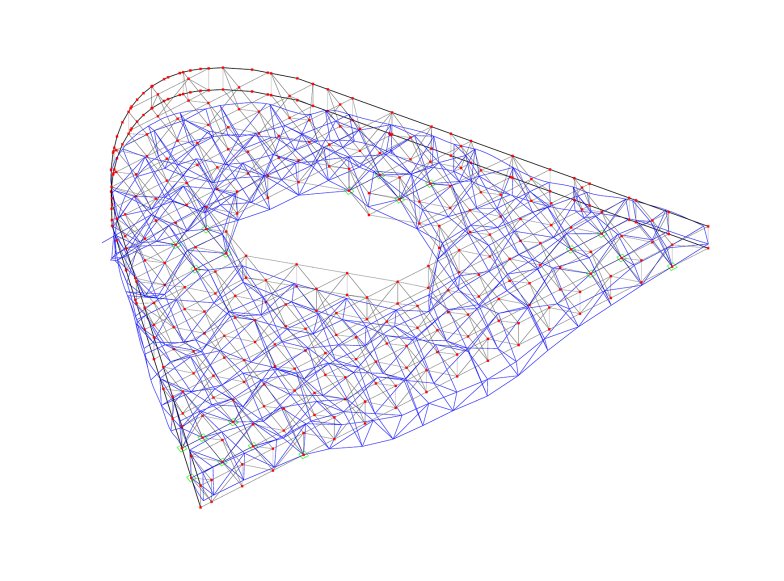

The load-bearing structure of the Dalian International Conference Centre (DCC) comprises a horizontal and a cone-shaped spatial steel framework, which are mainly supported by 10 concrete cores. A sophisticated climate control concept, which, for instance, aims to utilise seawater for cooling, will achieve energy savings and reduce carbon dioxide emissions by about 30%.

Data


Client: City of Dalian, China
Architect: Coop Himmelb(l)au, Vienna, Austria
Competition: 1st prize
Completion: 2012


GFA: 100,000 m² | Dimensions: ~210m x 180m x 54m

Classification: Stretched steel structure on massive construction cores with reinforcedconcrete shell conference hall

Service: Structural Design (Conceptual design)

Awards

Architizer A+ Jury Award 2013
