Estrel Tower
Berlin, Germany
© Barkow Leibinger
© Barkow Leibinger

project description


Located at the edge of Berlin’s suburb Neukölln the 175 m tall Estrel Tower will be Germany’s tallest hotel building.
The tower is part of a building ensemble consisting of the hotel tower, an office building, a parking garage and a convention centre.

structure


The proposed gravity structure for the hotel tower comprises a flat slab system supported by concrete columns and core walls. The core walls are an inner circumferential support for the flat slabs that typically span 8.50 m. The columns shall be arranged to allow a flexible and efficient floor space and a continuous and direct load transfer. The foundation for the high-rise tower shall be a combined pile raft foundation (CPRF).
The multiple use tower podium is designed as a conventional reinforced concrete structure. The atrium roof structure will be constructed of steel beams and girders covered by point supported glass panels. The structure of the exhibition and convention centre consists of a long-span steel roof structure which houses below mixed usage areas, including the ballroom, large hall and the foyer. The lateral system comprises concrete walls and columns.

façade

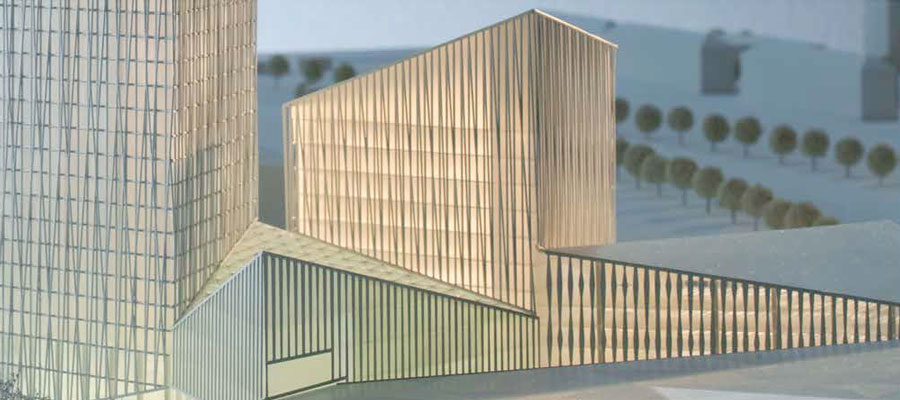

In addition to the structural design and building physics consultancy B+G is responsible for the design of the facades. The total area of the various façades sums up to approx. 42,000 m². The concept is to develop a system of façades that react to the differing needs of these buildings but still creating a family of façades in a corresponding architectural language. The highly glazed façades will meet high energy standards while creating spectacular views for the guests. A series of external fins providing additional external sun shading creates an additional layer of texture to the façade, giving it its unique appearance.
Sound protection plays a key role in the design phase due to a motorway to be built in the vicinity of the complex.

Data


Client:
Estrel Hotel-Betriebs-GmbH, Berlin, Germany

Architect:
Barkow Leibinger Architekten, Berlin, Germany

Competition:1st prize (2014)

Start of planning: 2015

GFA High-rise: approx. 54,000 m² | Height High-rise: approx. 176 m | Surface area façade: 42,000 m²

Service:
Structural engineering, Façade engineering, Building physics
