Merck Campus

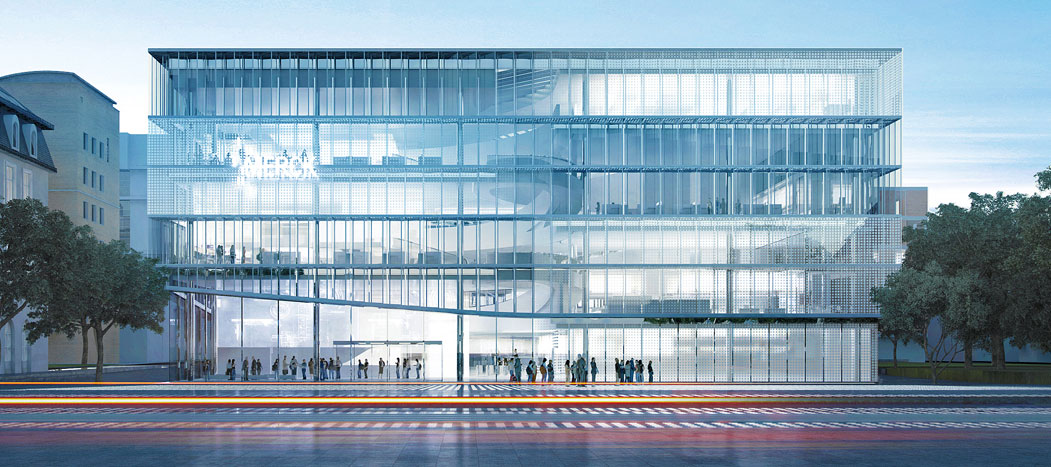

Innovation Centre and Company Restaurant
Darmstadt, Germany

project description

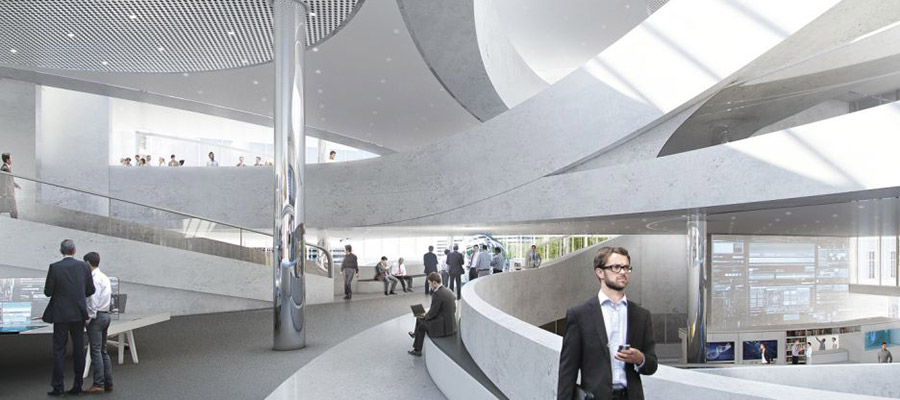

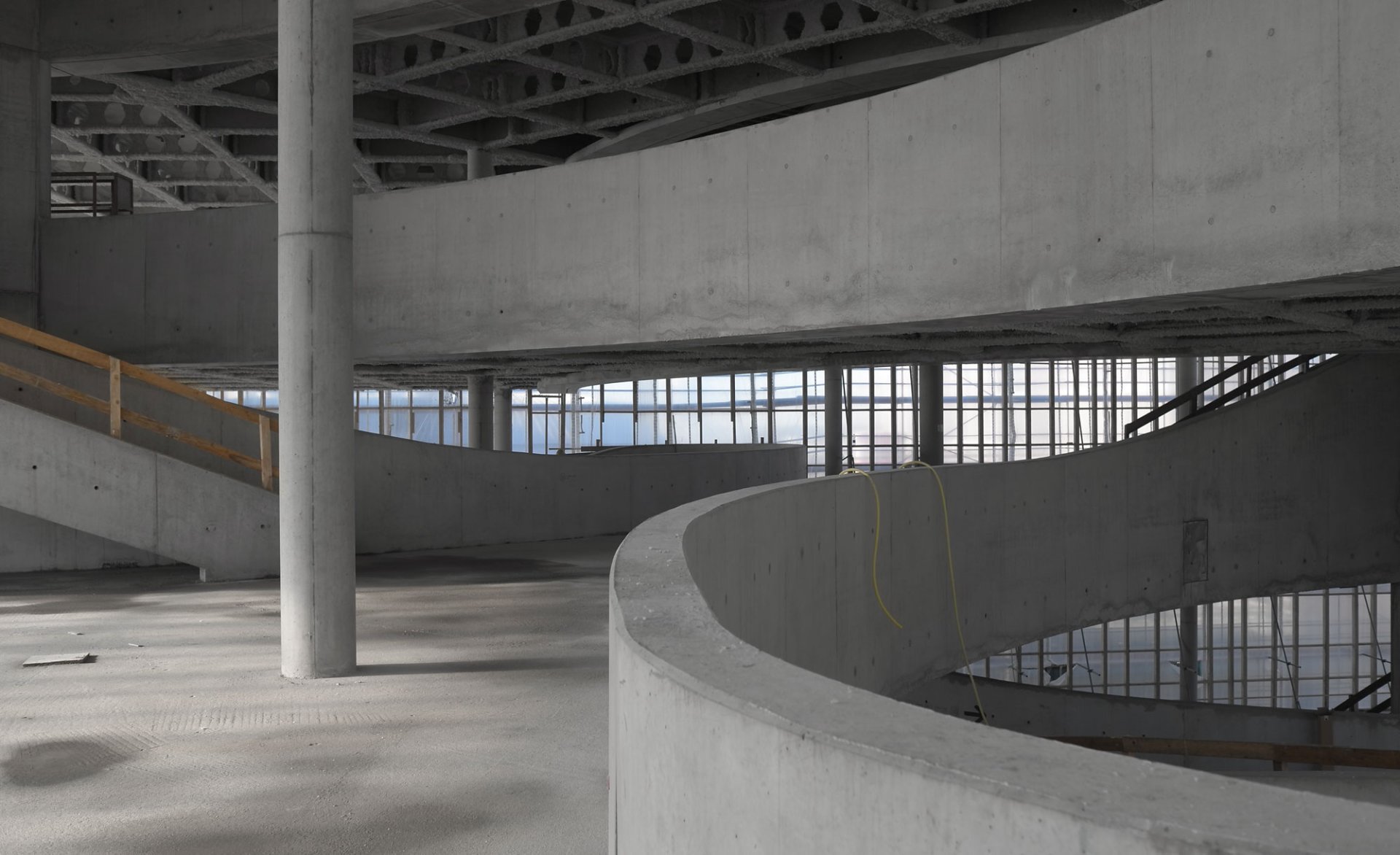

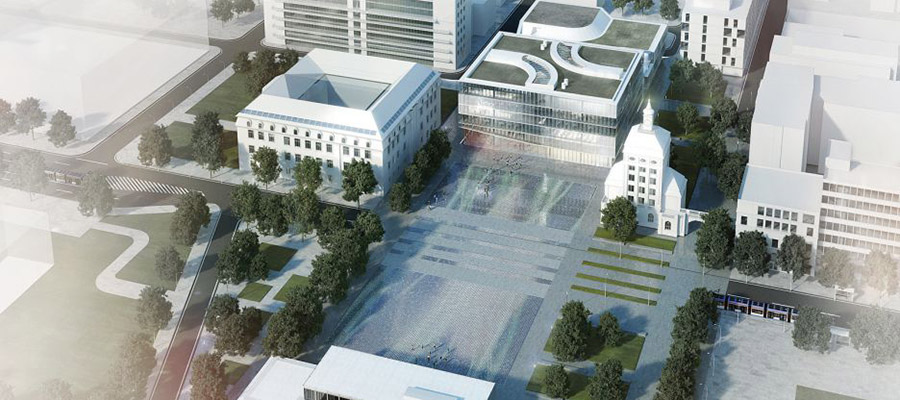

The Innovation Center with the adjoining employee restaurant is the centerpiece of the rearranged company’s site and serves both as the public image as well as for the research and development. The staggered floor levels create an open spatial structure with flowing spaces and flexibly usable project areas, allowing diverse perspectives between different zones and facilitating interdisciplinary work.

structure

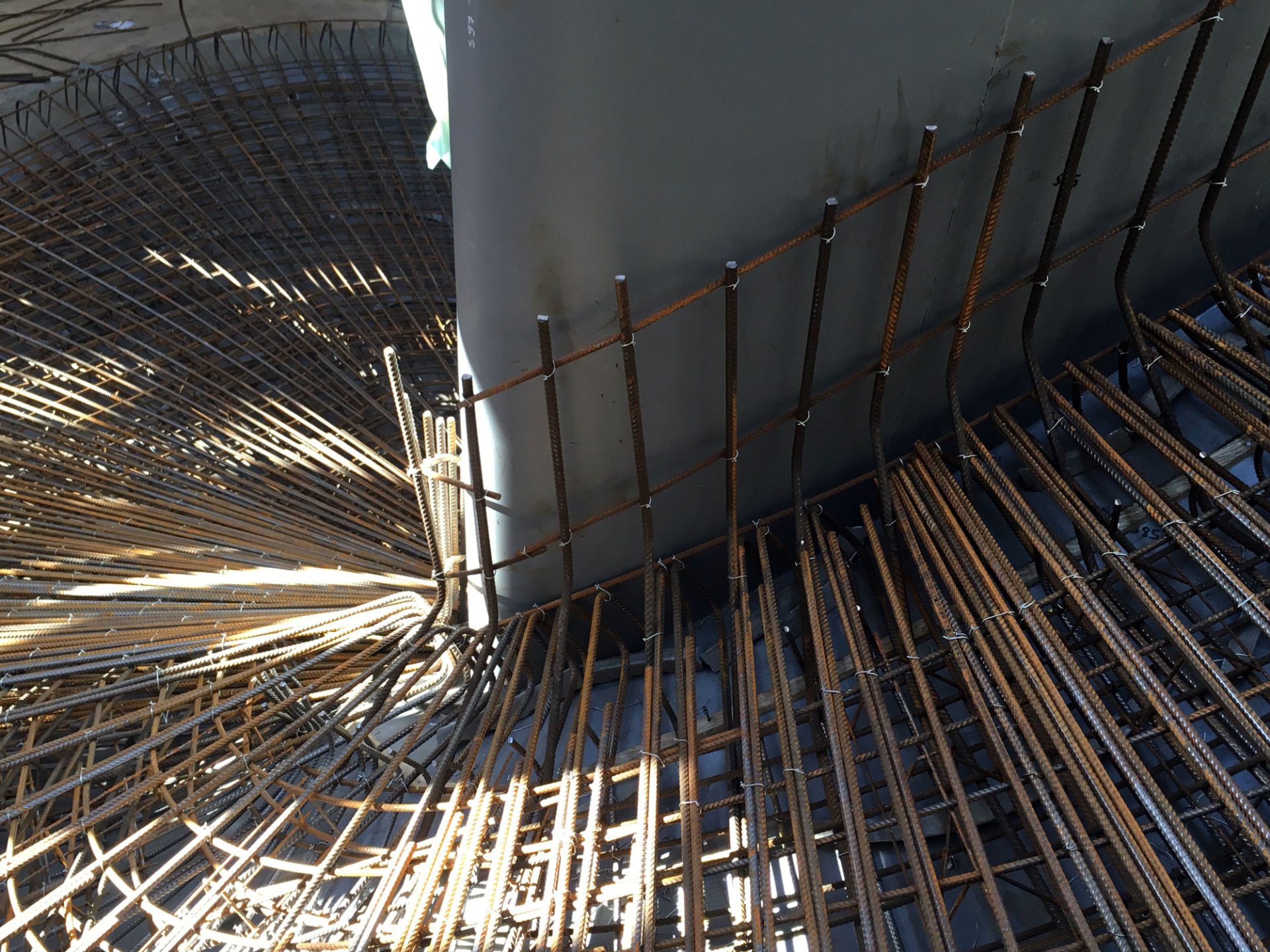

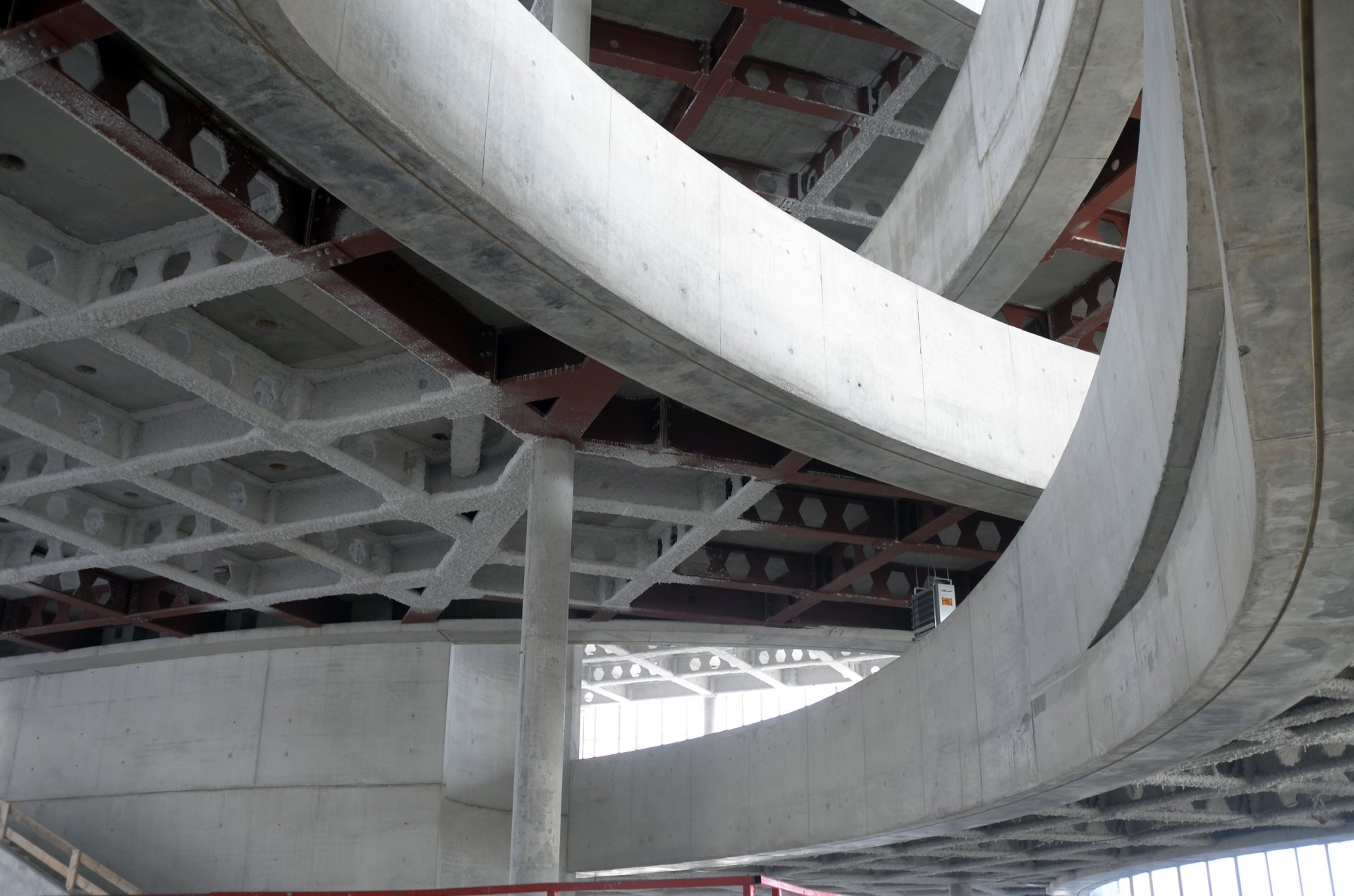

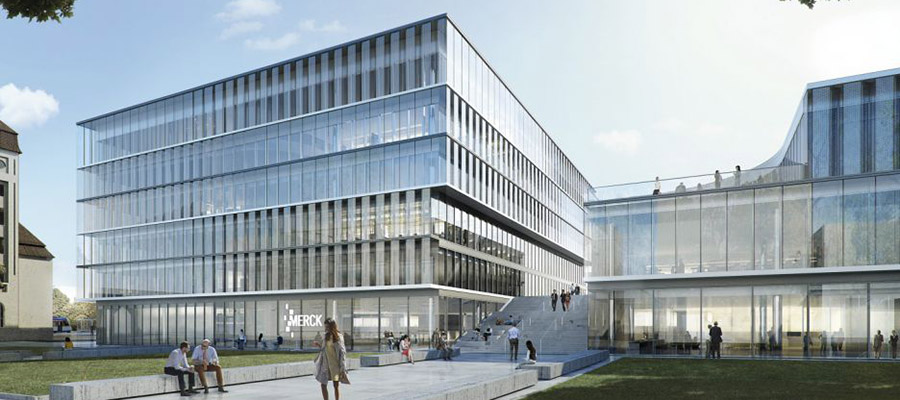

The 6-storey Innovation Center has a footprint of 43m x 52m and a height of 24m. The floor area of the standard floors corresponds only to about half of the gross floor area and their geometry resembles two opposite quadrants with a bridge-like connection. The slabs are designed as composite structures with a steel support frame and a reinforced concrete slab with a span of approximately 17m x 20m. The balustrades of the bridge elements are in addition used structurally to achieve a higher span. The floor slabs are connected via self-supporting, double-curved concrete stairs.

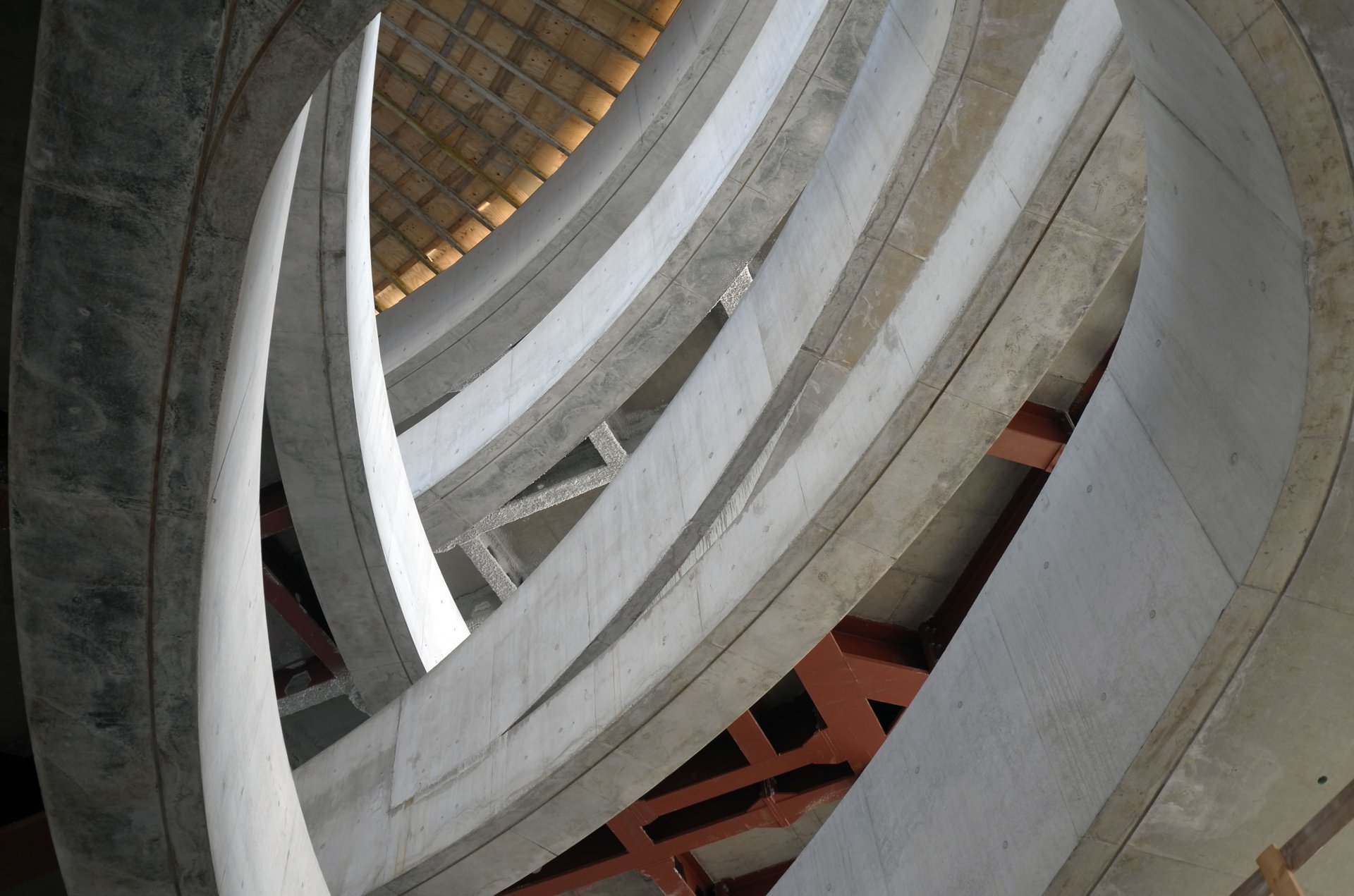

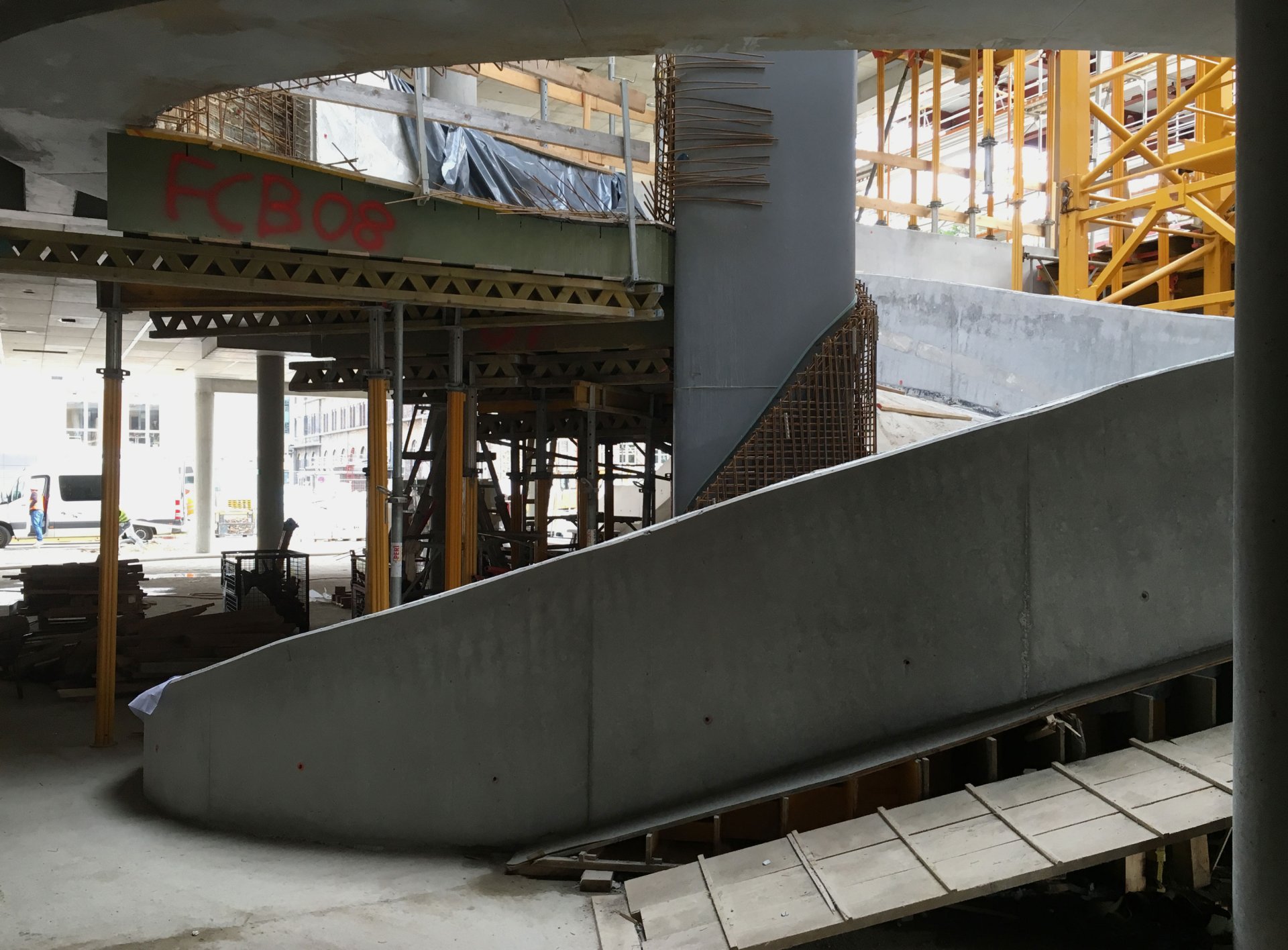

The three-storey employee restaurant has a footprint of 40m x 52m with a 10m x 10m column grid. The floor structure consists of reinforced concrete flat slabs with integrated hollow blocks. A self-supporting triangular spiral staircase is located in the atrium and spans over two floors. The balustrade, walking surface and lower landing are realised in exposed concrete and form a box section, which acts as a doubly curved spatial load-bearing structure.

Data


Client:
Merck, Darmstadt, Germany

Architect:
HENN Architekten, Berlin, Germany

Start of planning: 2013
Start of construction: 2015

GFA: 22,000 m²

Additional service: Structural design excavation

Service:
Structural engineering
