Retirement Home "Am Weinfass"

en | de | fr
City, Country Mainz, Germany
Year 2012–2014
Client Gemeinnütziges Siedlungswerk GmbH
Architect Gemeinnütziges Siedlungswerk GmbH
Services Structural Engineering
Building Physics
Facts Flats: 32 | Living area total: approx. 1,750 m² | Passive house standard

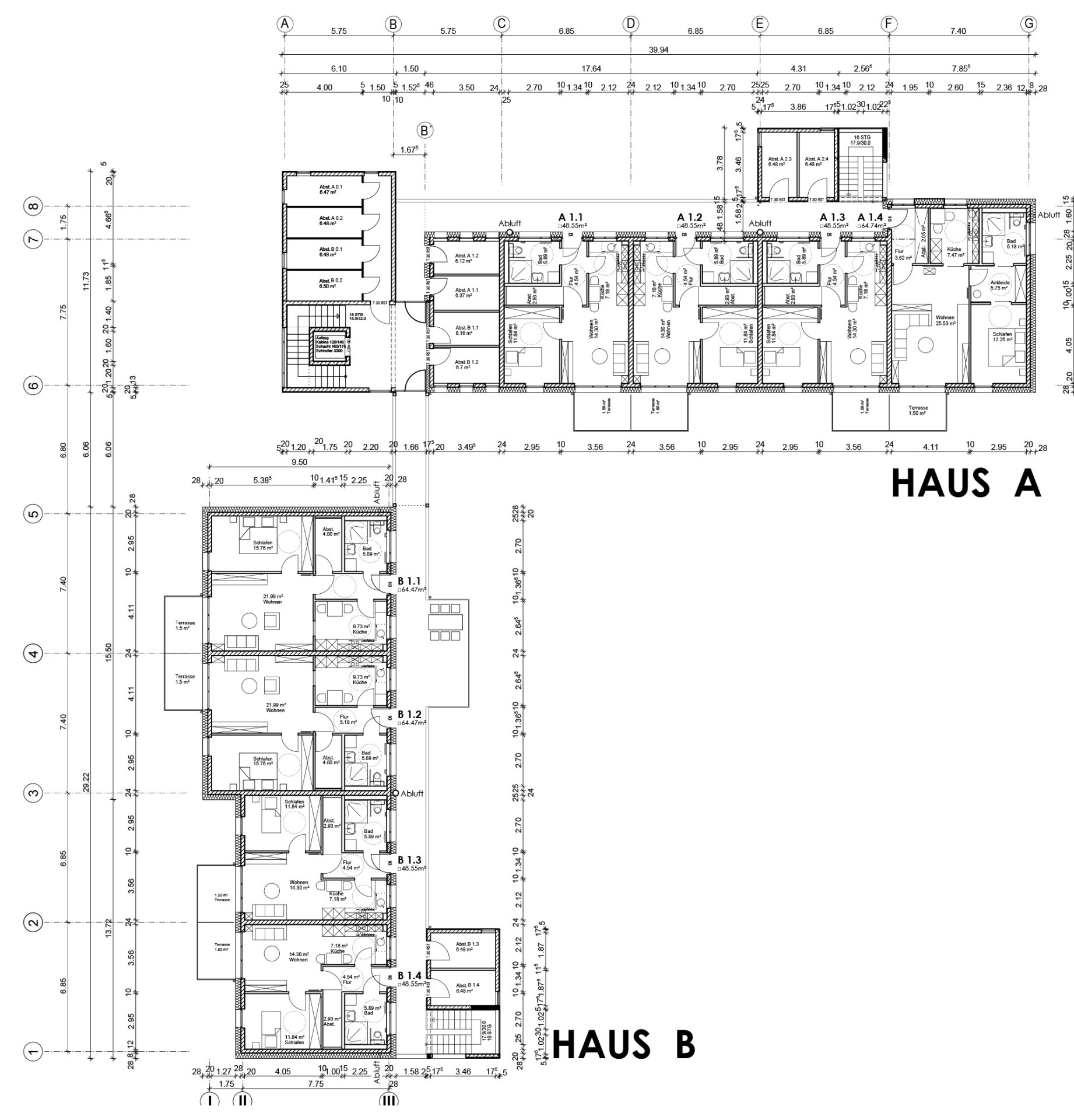

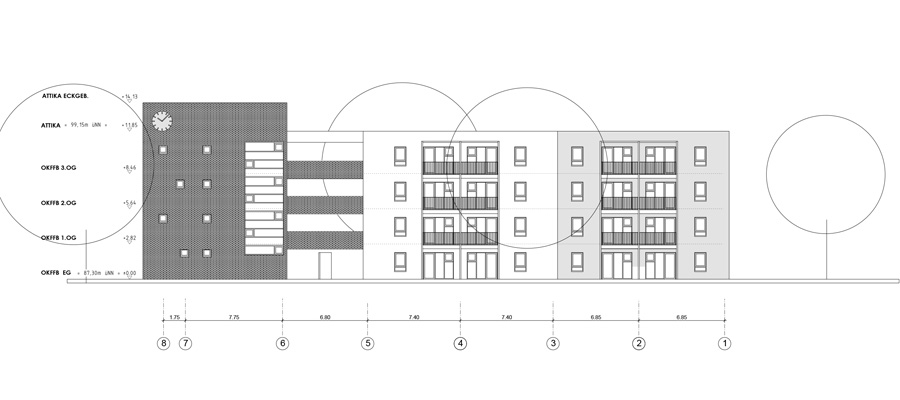

The L-shaped building is divided into two parts, House A and House B. The two houses are connected by a pergola. The four-storey houses were built in passive house construction.

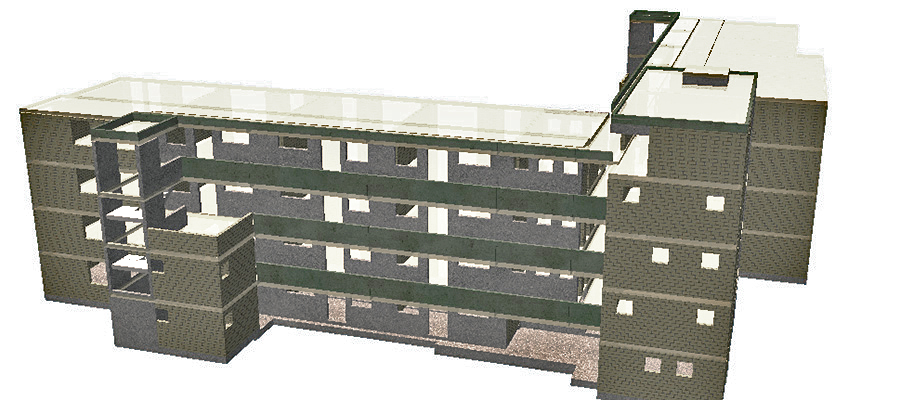

The staircases and the development of the residential units through the cantilevered arcade are located outside the heat-enclosing shell. Due to this construction method, the arcades had to be thermally separated from the floors and roofs by means of thermal break elements called Isokorb.
