Taiyuan Zoo - Entrance Building

en | de | hu
City, Country Taiyuan, China
Year 2016–2019
Client Municipality of Taiyuan, China
Architect Delugan Meissl Associated Architects
Services Structural Engineering
Facts GFA: 1,385 m² | Height: 9.4 m

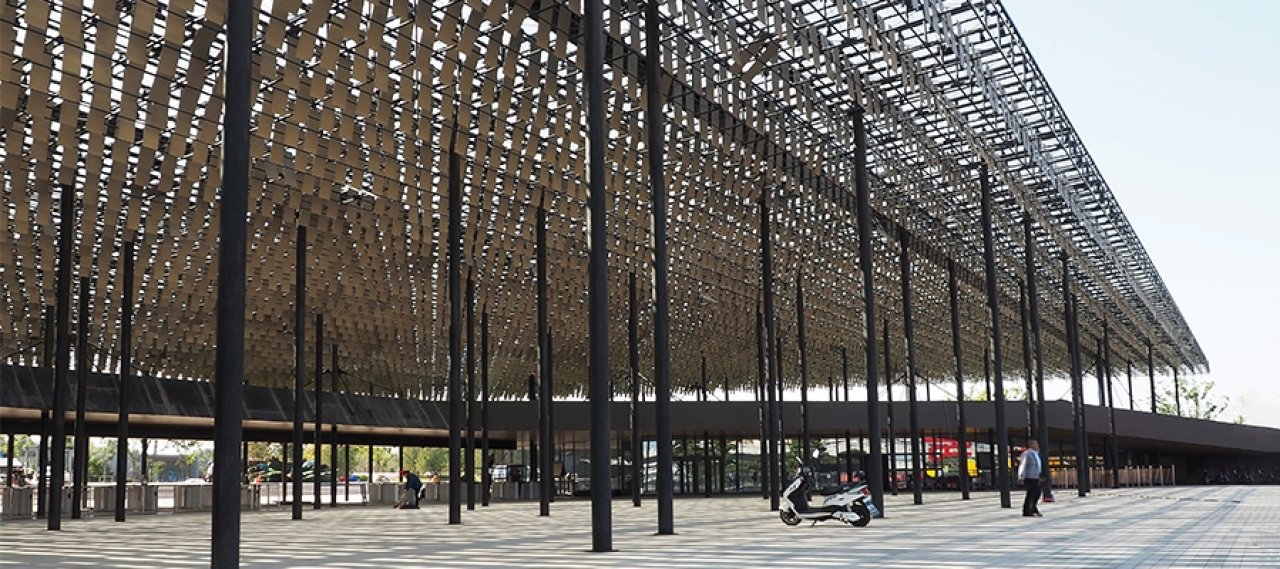

The main aim of the proposed design for the new entrance building of the Taiyuan Zoo is to generate a fluent transition zone between the urban environment and the Zoo and to create a clear entrance gesture. Characteristic is the theme of movement and dynamics, something that is reflected in the design. The Plaza is covered with a wide roof that is visible from far away and that marks the entrance clearly. It consists of movable panels that are influenced by the actual wind conditions. The appearance of the roof is constantly changing and also influences the play of light and shadow generating multiple atmospheres below the roof. The construction of the roof is inspired by the idea of creating zones of different densities. The result is not only a pure transition zone but one that also can act as stage for different events or just invites you to take a short rest.

The roof structure consists of two main parts, both designed in steel: the lower part serves as a green roof for auxiliary spaces of the zoo and will be fully insulated and cladded. The upper part will be highly visible, housing 5480 rotating panels which move in the wind. Therefore the slenderness and careful detailing of the upper part is of priority. It is designed as a space-truss which is supported on 101 columns, ten of which are also providing horizontal support. The grid size in plan is about 1x1 meter, which results in a very dense but light structure.
