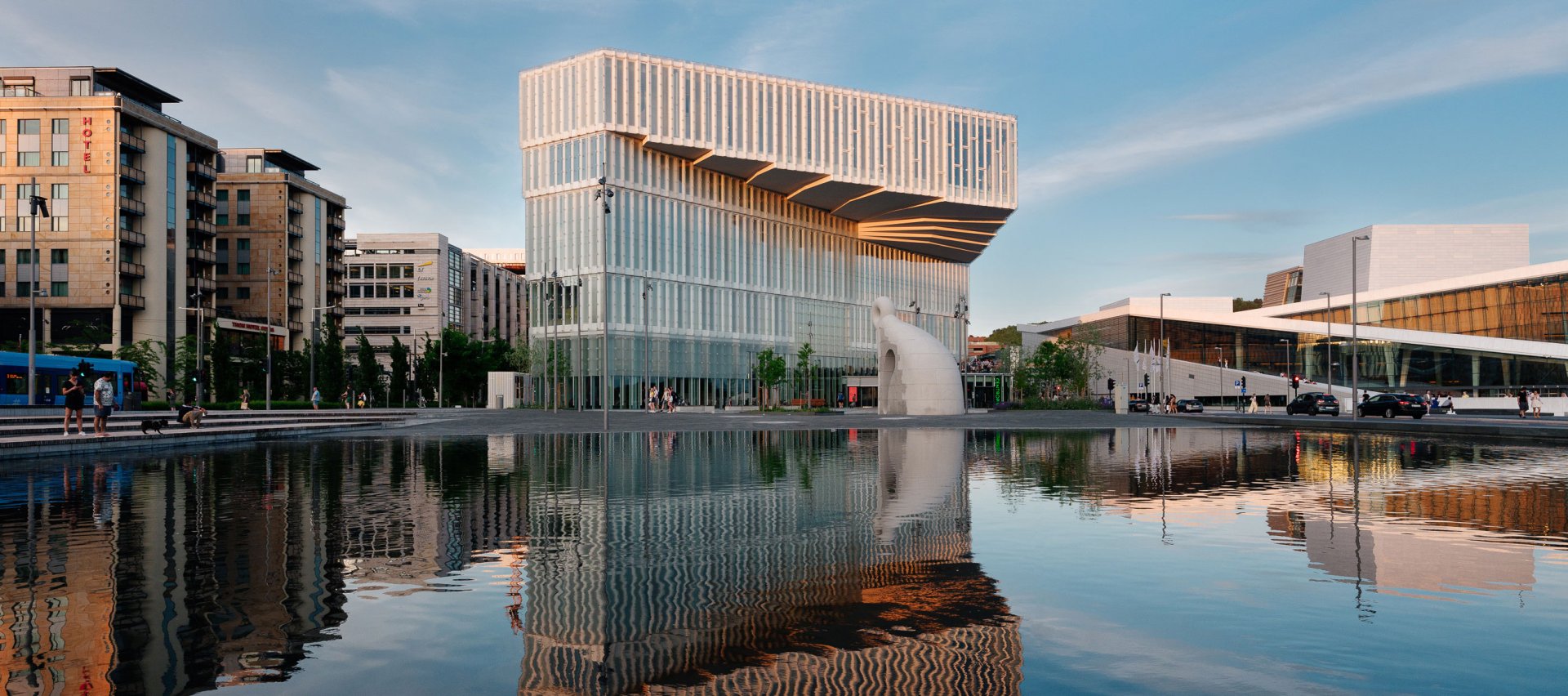

Nybygget for Oslos hovedbiblioteket reises i Bjørvika, Oslo. Bygget har en spennende krystall-lignende form som er avledet fra den omkringliggende bygningssammenheng og signaliserer den viktige funksjonen. Det nye biblioteket til Oslo er prosjektert etter kravene til passivhusstandard og oppnår dermed målsettingen om 50 % reduksjon for energibruk og tilsvarende 50% reduksjon av klimagassutslipp.

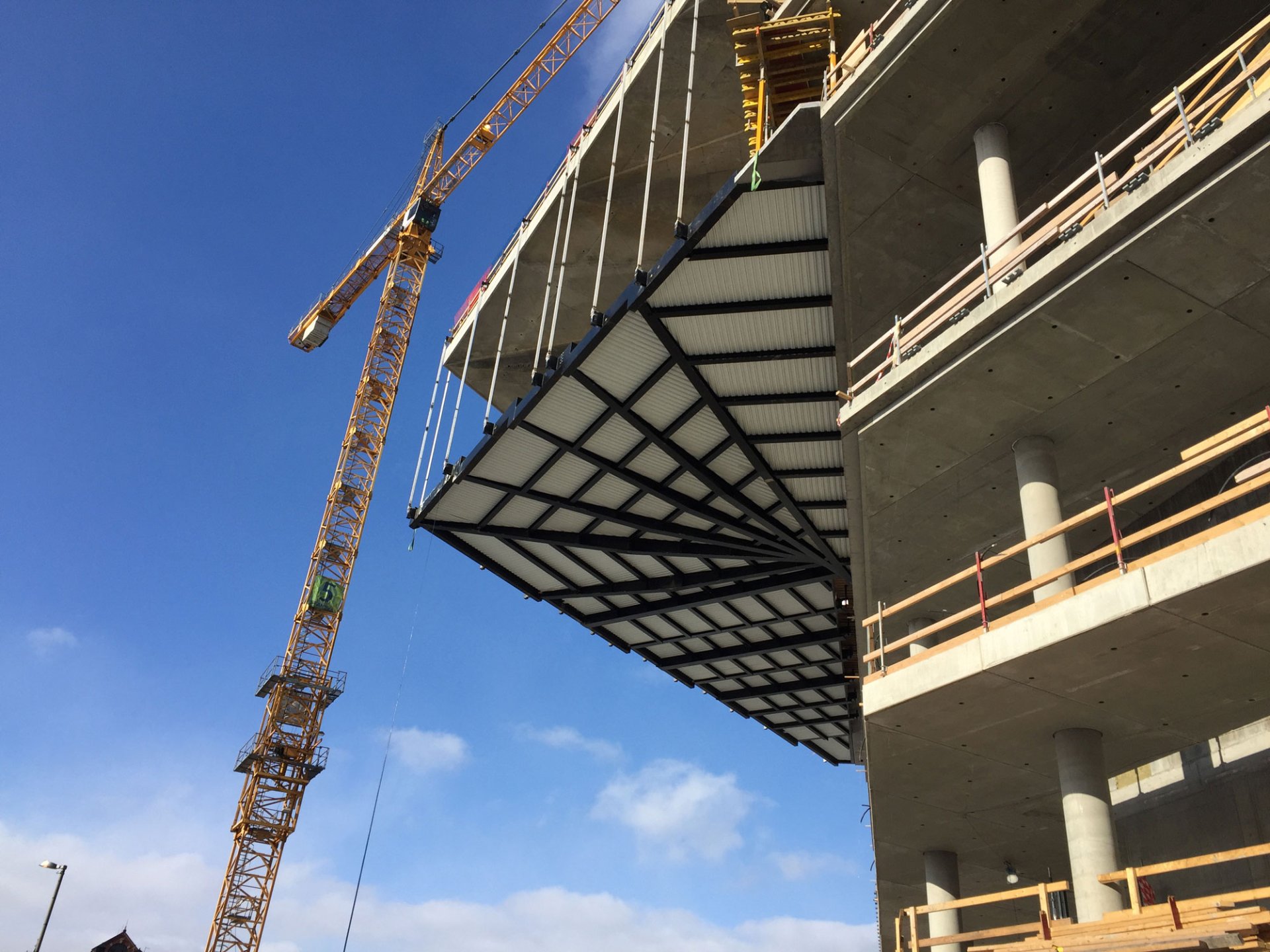

Hovedbærekonstruksjonen til det nye biblioteket er en støpt betongkonstruksjon, bestående av 5 hovedetasjer og 3 mesaninetasjer i tillegg til 1 kjelleretasje. Veggene i de 3 avstivende kjernene for trapper, heiser og sjakter er også utført i plasstøpt betong. Særpreget for bærekonstruksjonen er det plass-støpte foldedekket for taket. Taket har en hovedutkraging på 18m mot Operaalmenningen. Utkragingen bærer det opphengte dekket mellom 4. og 5. etasje i vest. Mot øst og Tverrgata krager foldedekket 5m ut.
Alle dekkene fra plan 2 til 5 utføres som biaksiale hulldekker som muliggjøre spenn inntil 14m. Hulldekkene gir redusert materialforbruk og integrerer kjølevannsystemet som aktiverer den termisk masse. Alle fire hoveddekkene er opphengt i foldedekket.

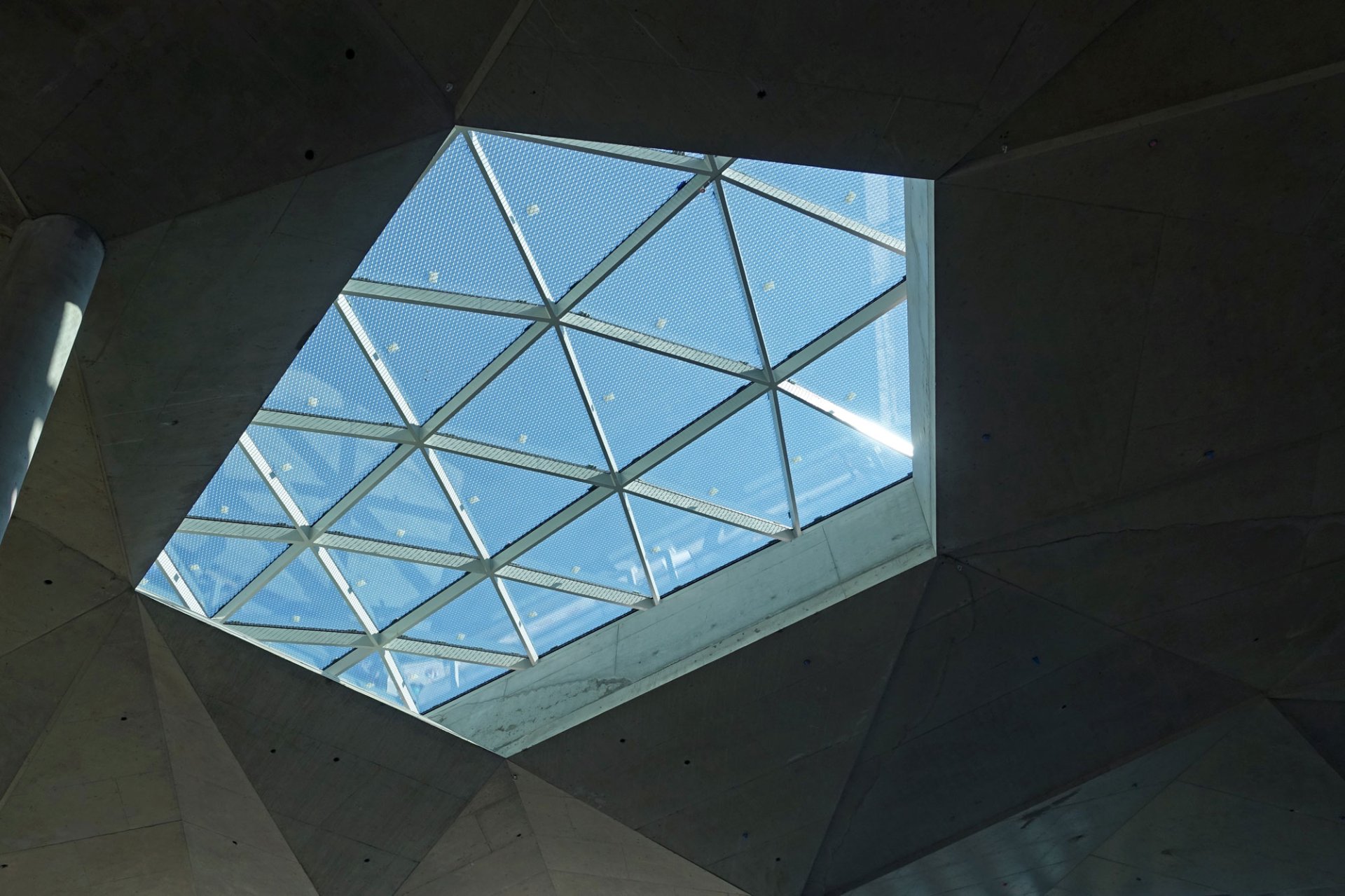

Betonginnersøylene er plassert rundt kjerner. Grunnet åpninger for lyssjakter har alle flatdekker forskjellig geometri. Rundt alle åpninger for store lyssjakter er det søyler som bærer dekkene.

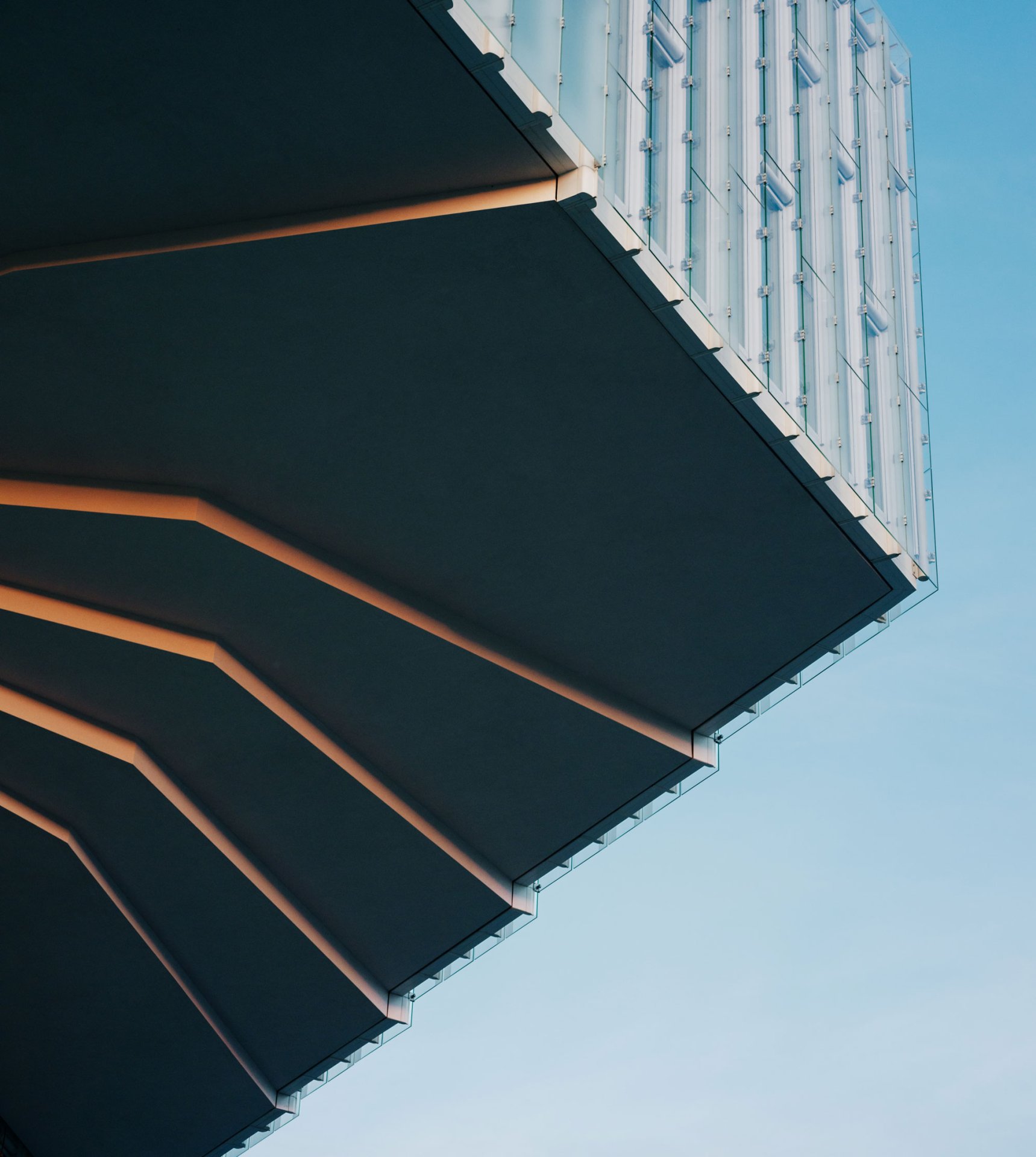

Biblioteket får en avansert trelags fasade med store spennvidder for glass og kledning. Glasselementer og fasadeelementer har store dimensjoner.
Hovedfasade består av 50% gjennomsiktig isolerte felter av glassfiberarmerte plast og 50% gjennomsiktig glassfelter. Fasadekonsept er innovativt for å bidra til miljøkonseptet.
Oslo kommune, Norge
Lund Hagem Arkitekter
BTA: 18,000 m² | Høyde: 61 m | I samarbeid med: Multiconsult, BGKI | Glassfasade: 7,500 m² | Passivhus: 50% reduksjon av energi og klimagassutslipp | Honorar: 4.100.000 NOKTjenester:
Byggeteknisk prosjektering, Fasade prosjektering
Betongtavlen 2020, Winner
The Public Library of the Year award 2021
Kreative Ingenieukunst in Norwegens Hauptstadt
Die neue Deichmanske Bibliothek; Matthias Stracke, Knut Werner Lindeberg Alsén; in: Ingenieurbaukunst 2019, Verlag Ernst & Sohn, Berlin
Deichmanske Bibliotek in Oslo - BIM-Kooperation mit hohem Planungsnutzen, in: baunetzwissen.de
