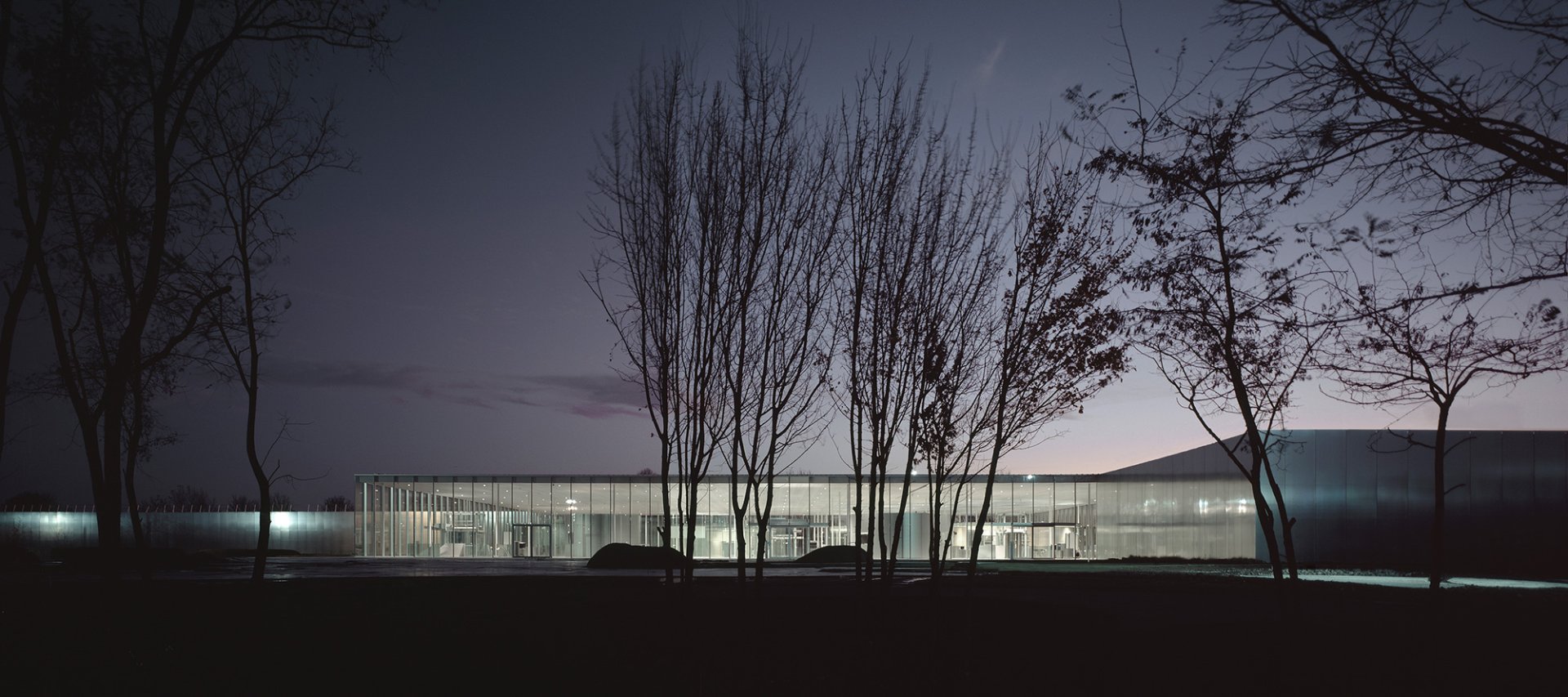

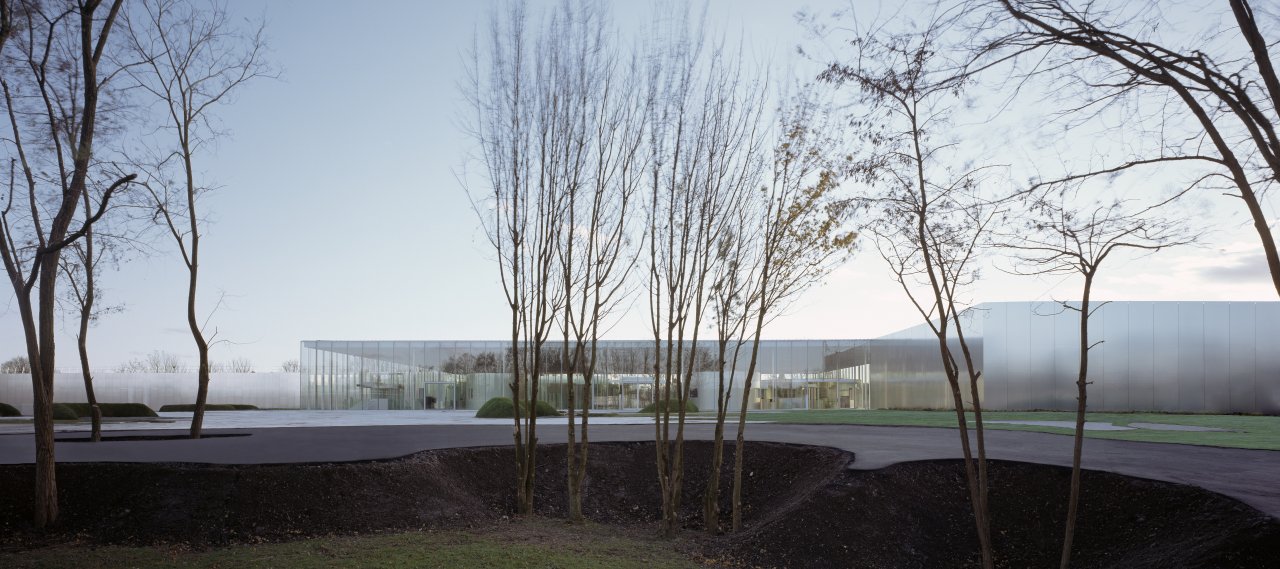

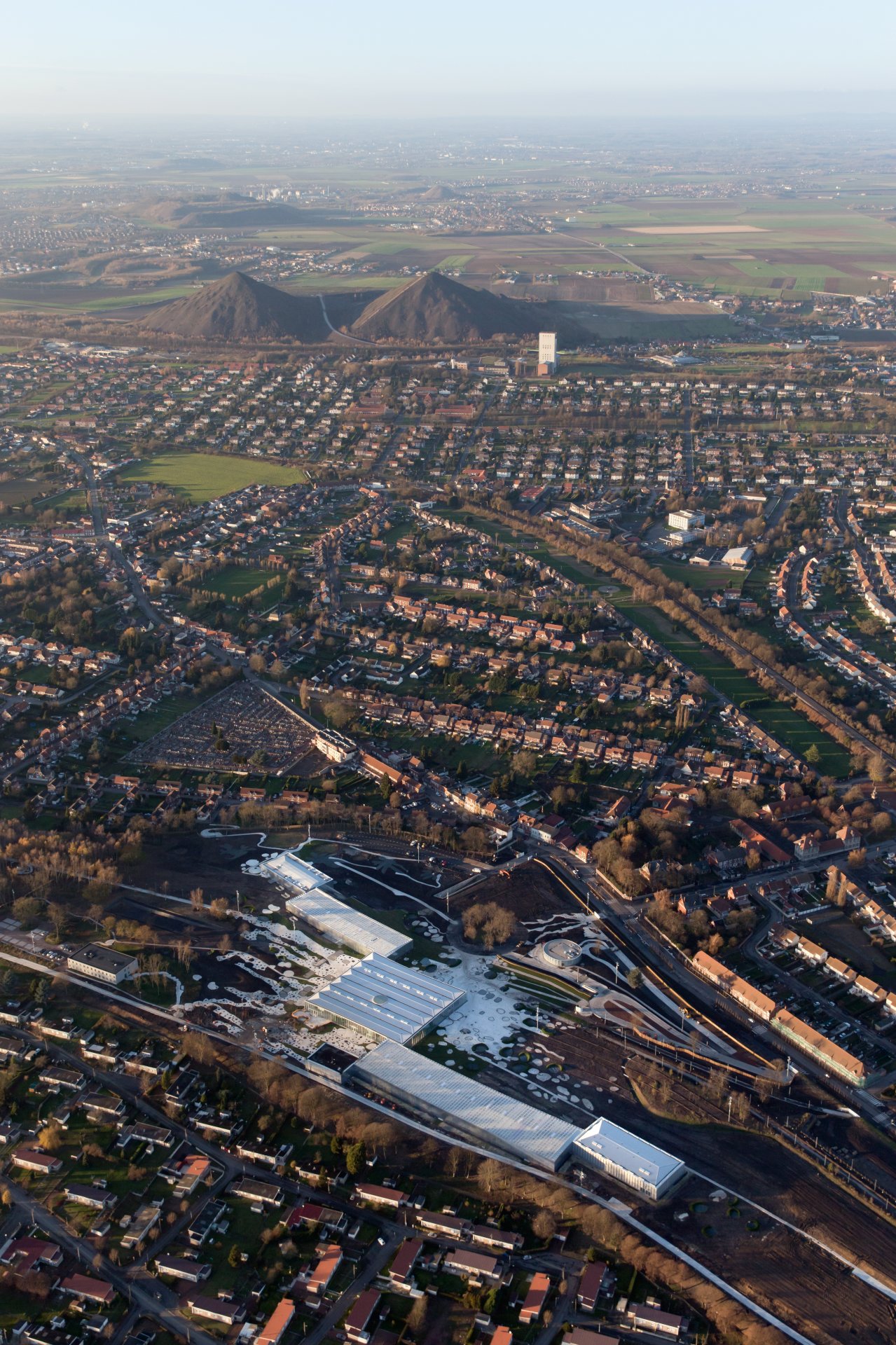

The new building complex is the remote extension for the crowded exhibition halls of the National Museum in Paris. This new museum branch in Lens is located on a 20,000 m² site of a former mine. Long rectangular buildings are staggered into the 450 m depth of the site in a park landscape.

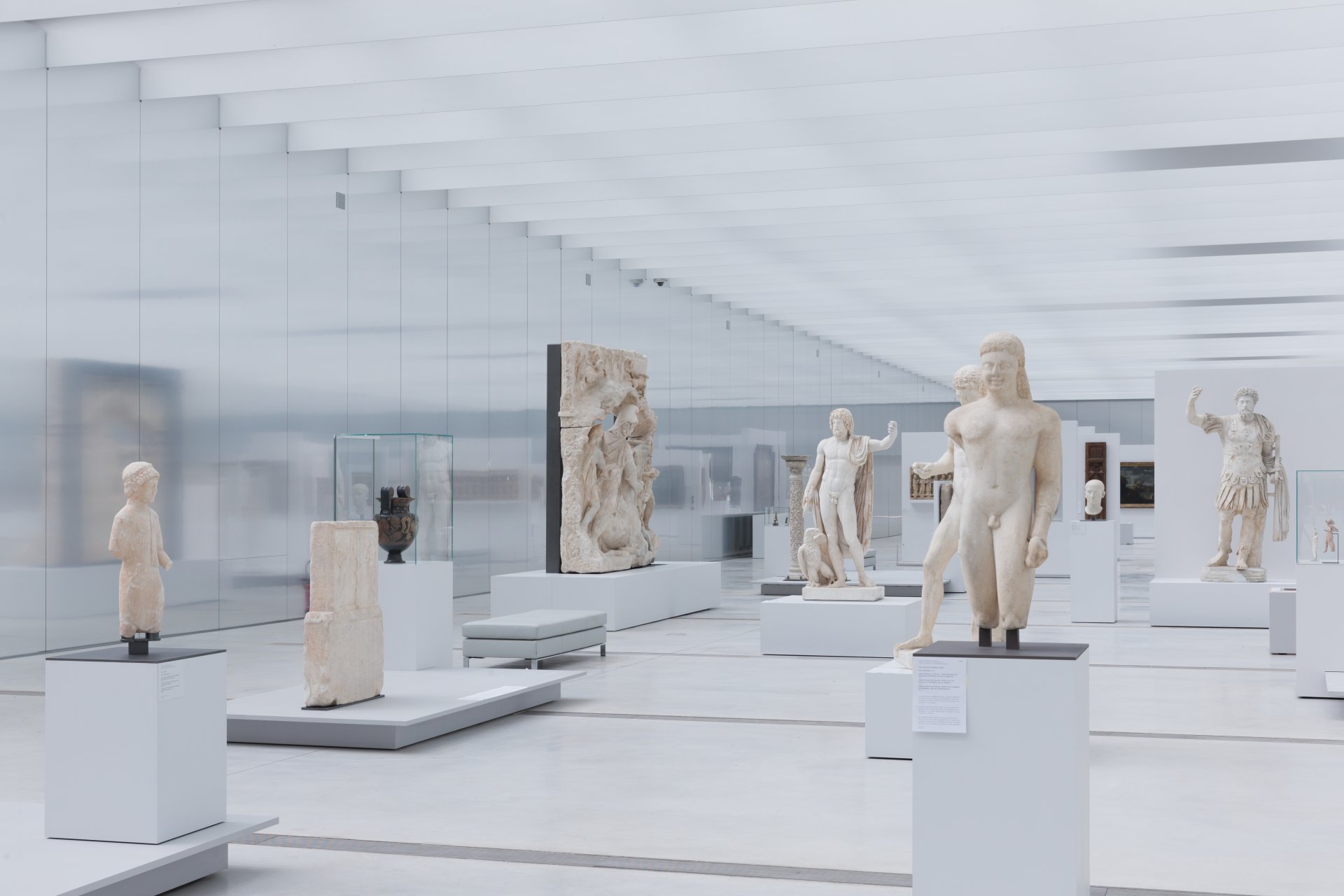

The minimalistic architecture of SANAA had to be realized by a filigree structure to emphasize the building’s weightless character. Besides the little number and small dimension of the columns the challenge for the structural engineers was that no other vertical structural elements reached up to the roofing structure.

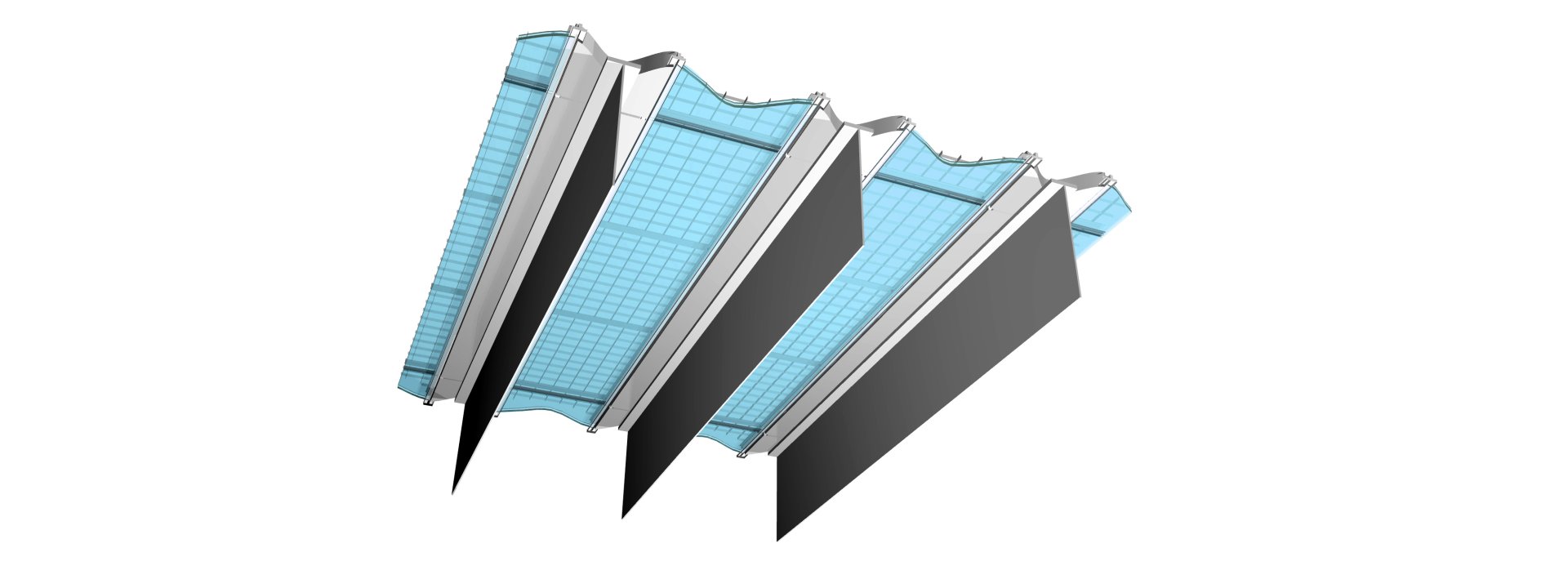

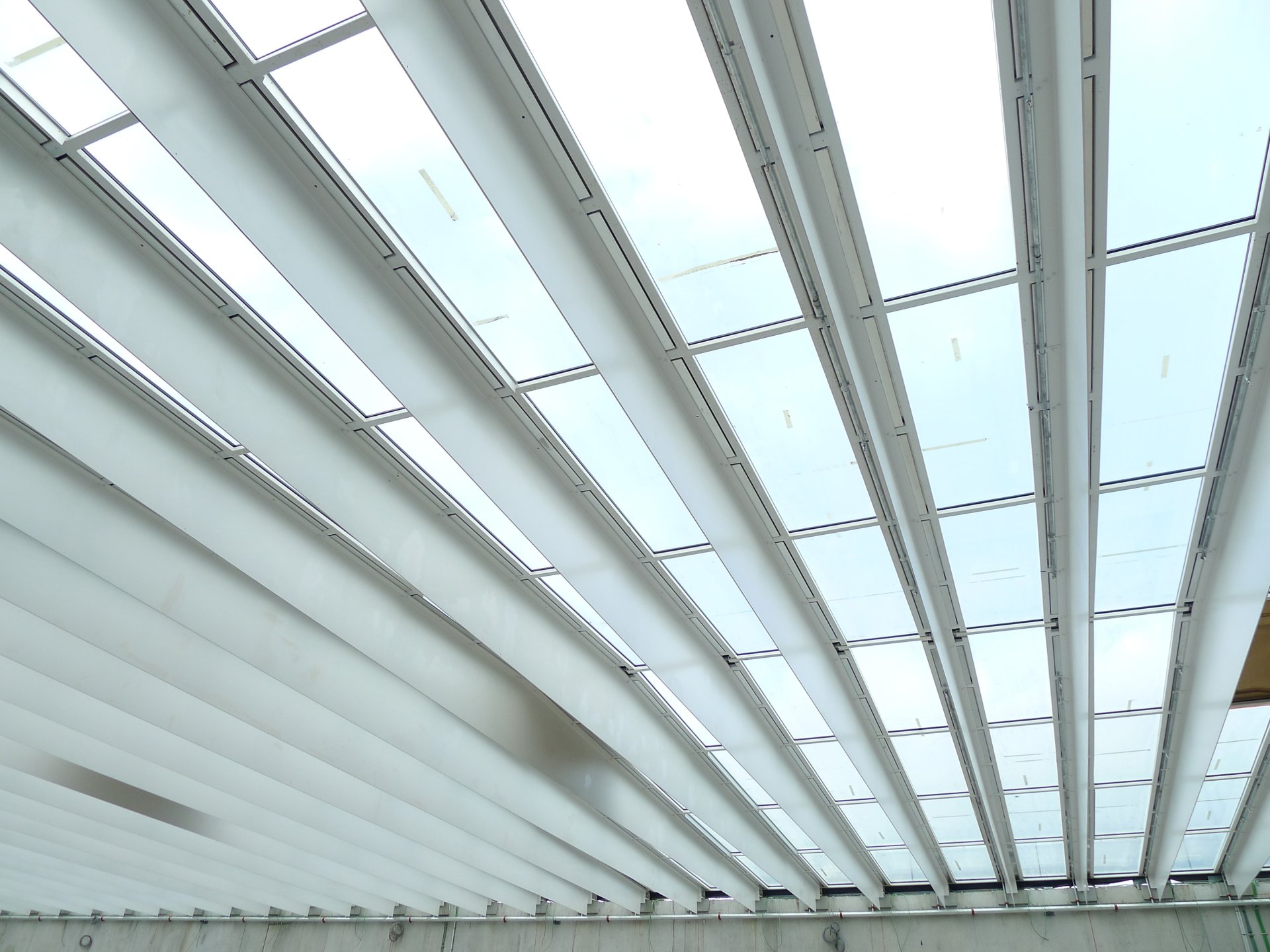

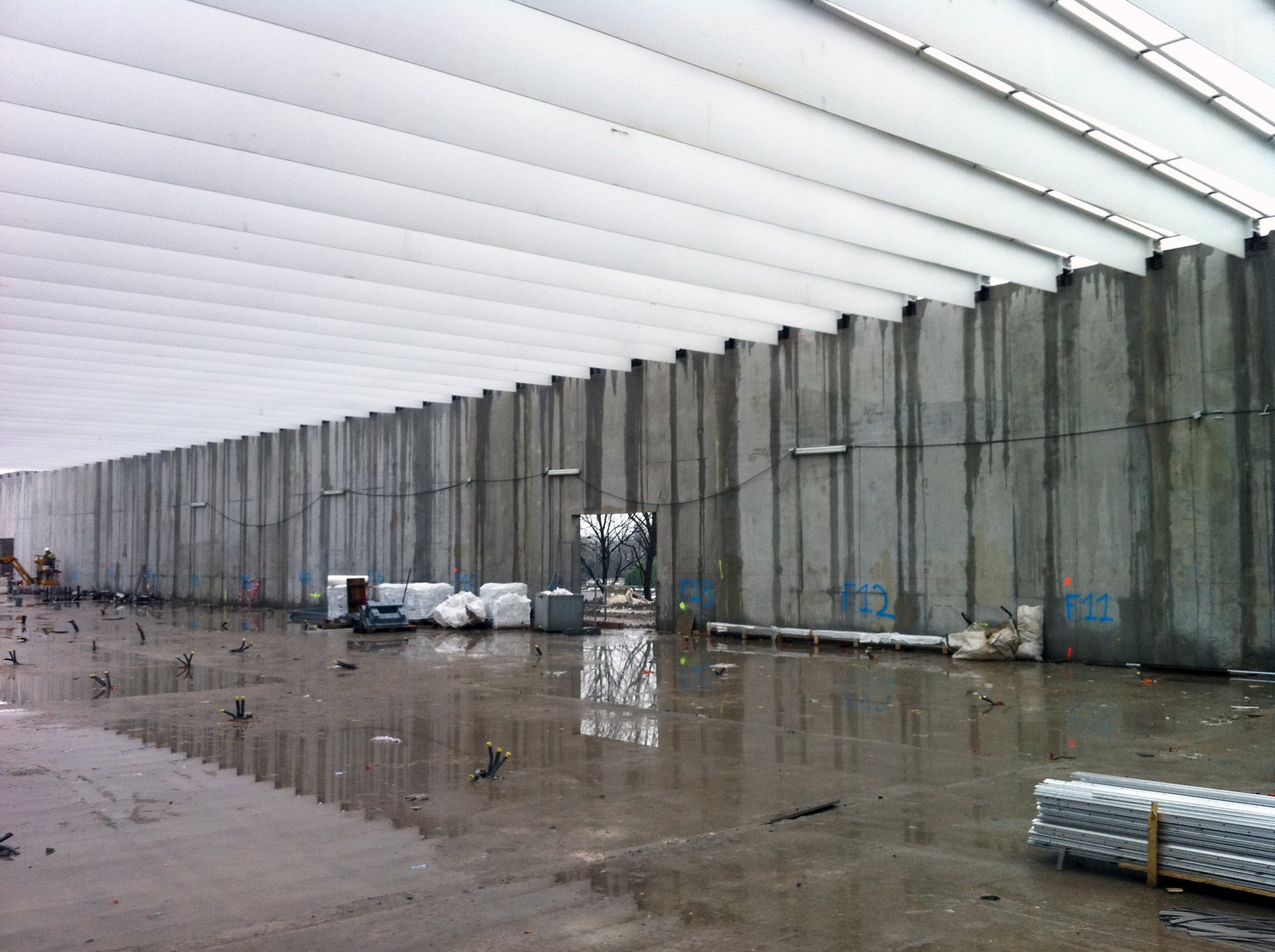

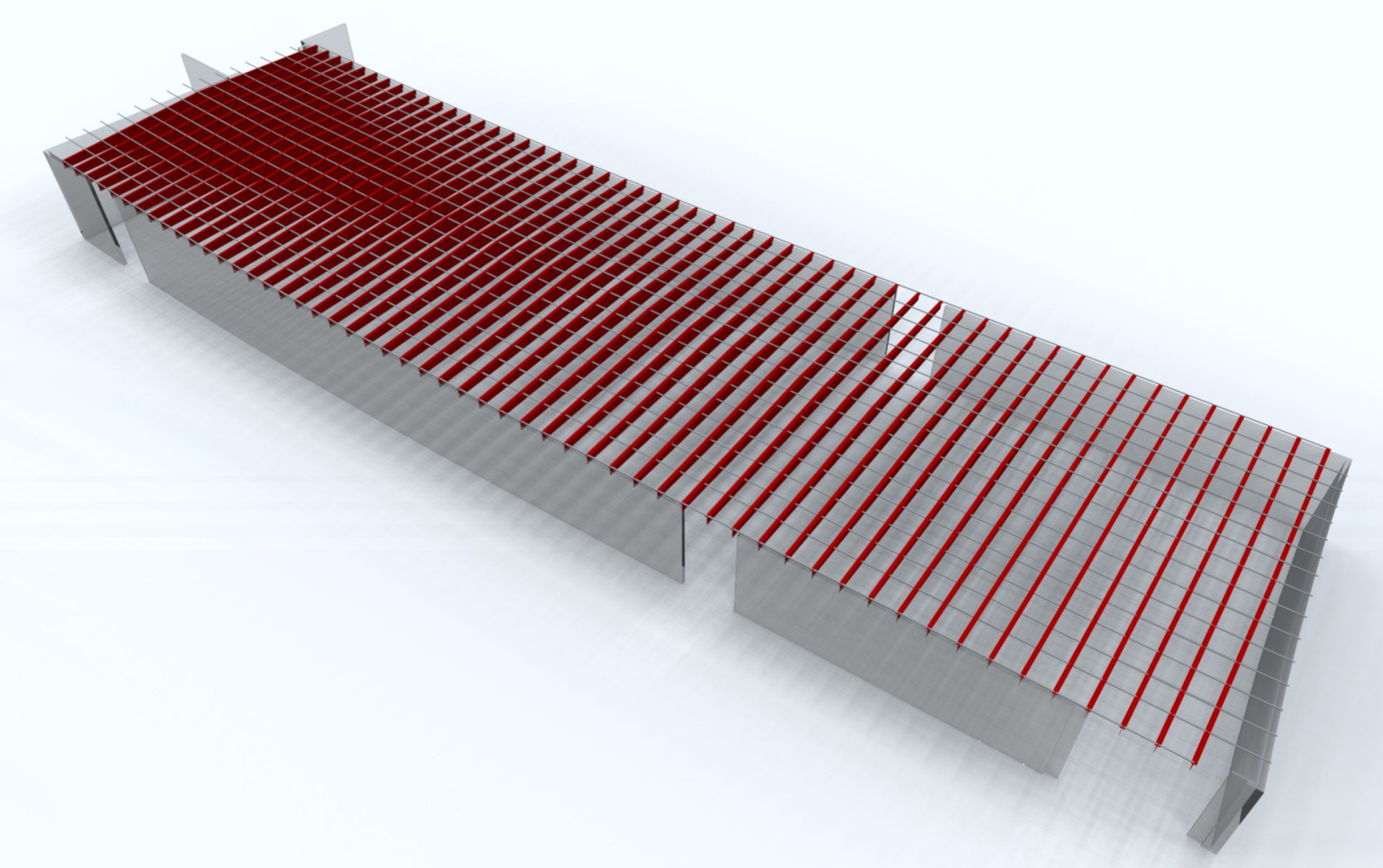

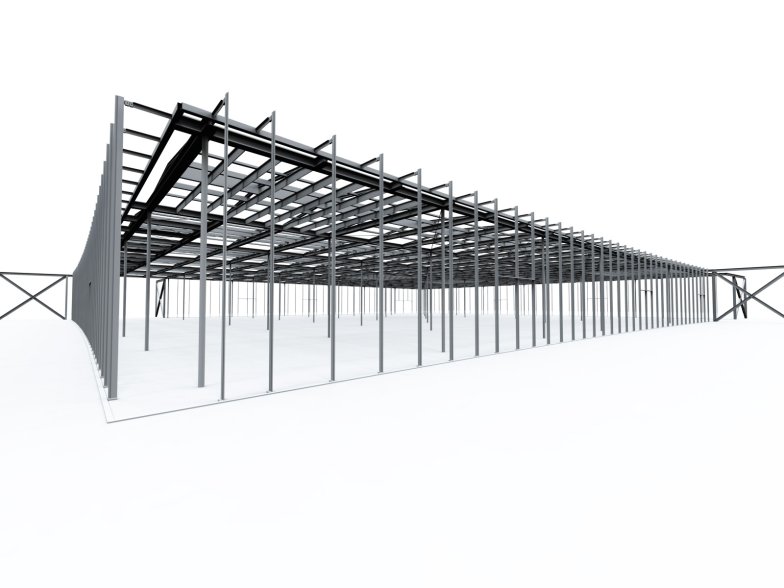

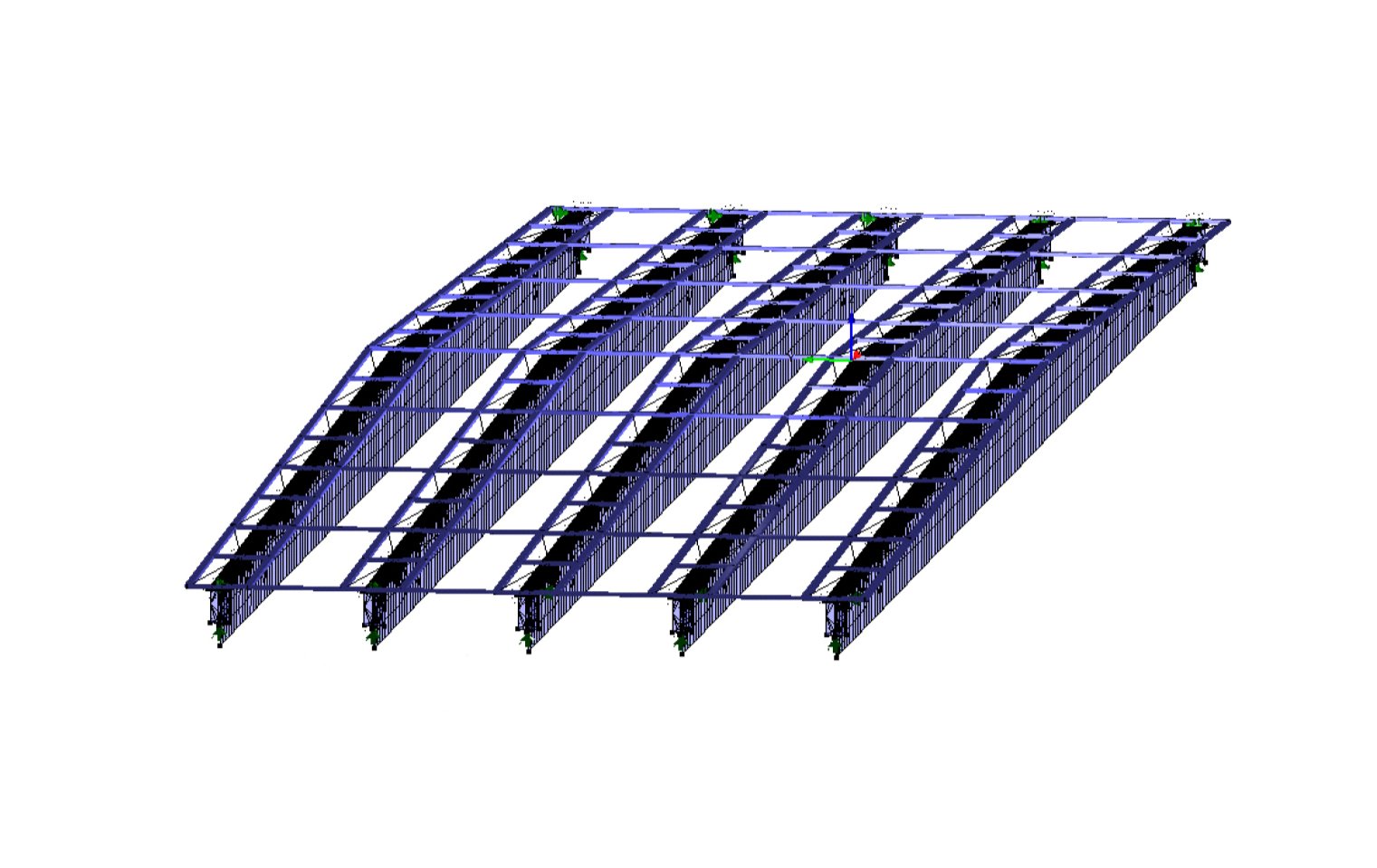

Thin T-section steel girders with a span of 26 m in a dense sequence form the unusually light appearing roof. Several functions had to be provided in a total height of only 25 cm roof structure: light guidance, glare protection, shading and daylight entry.

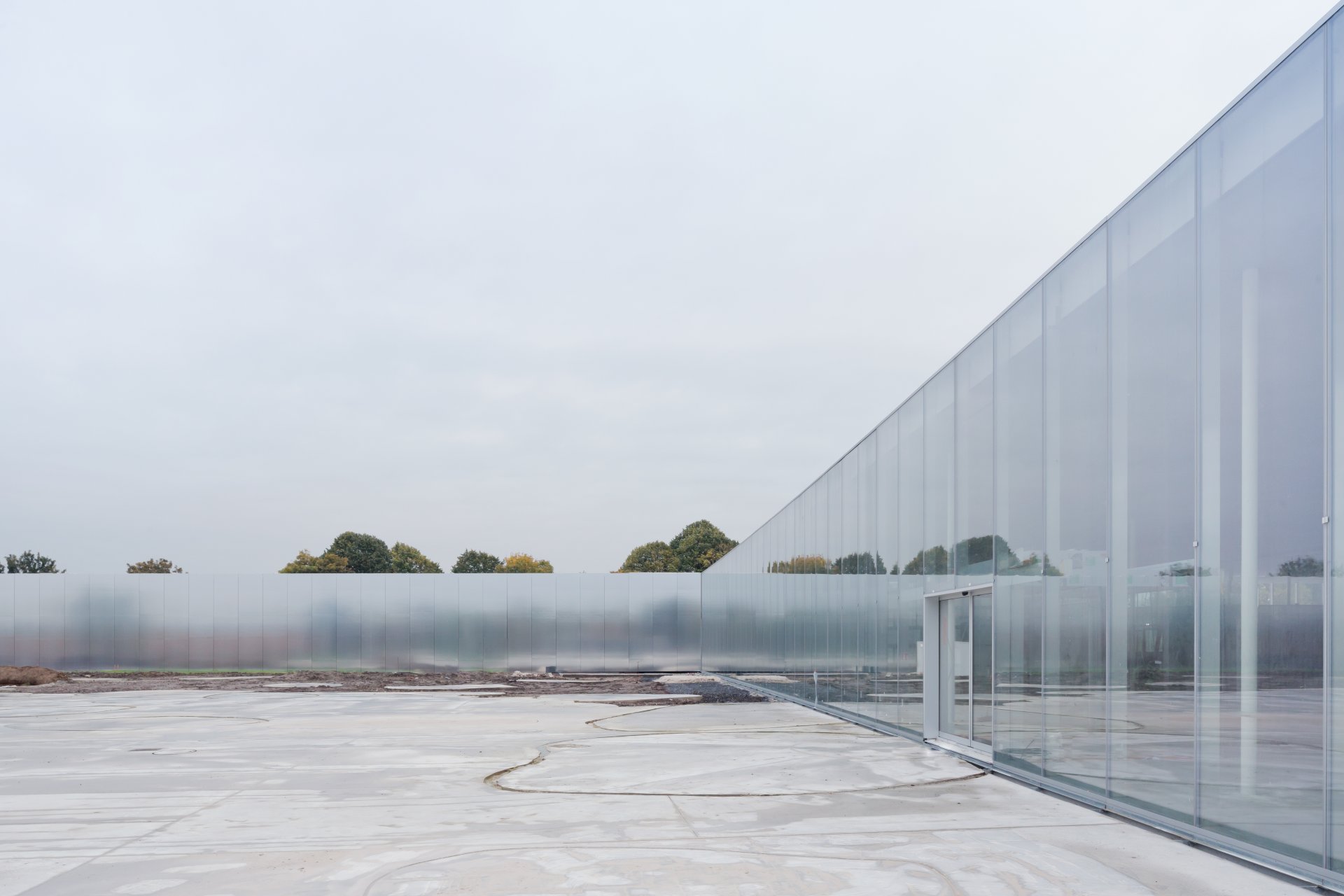

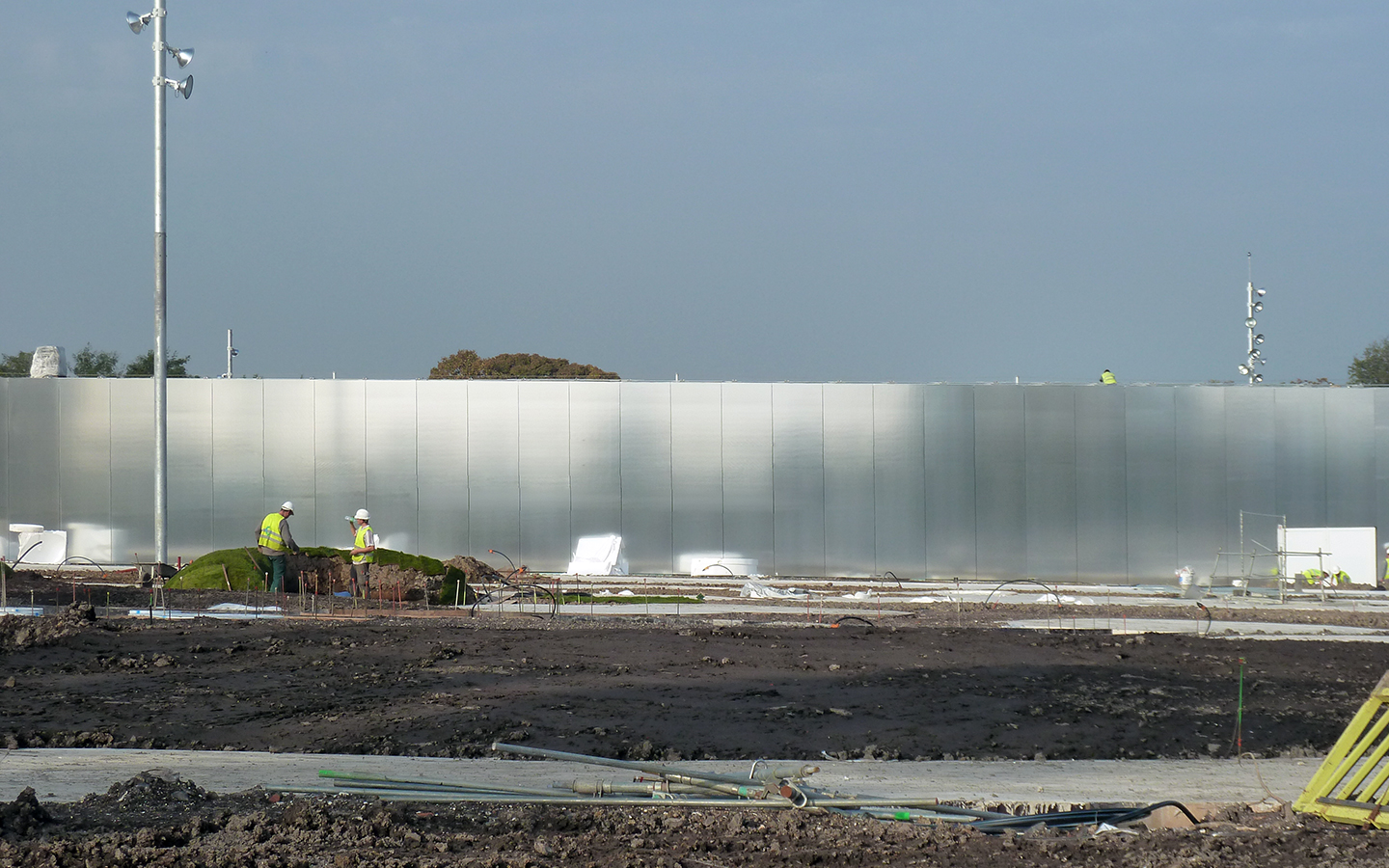

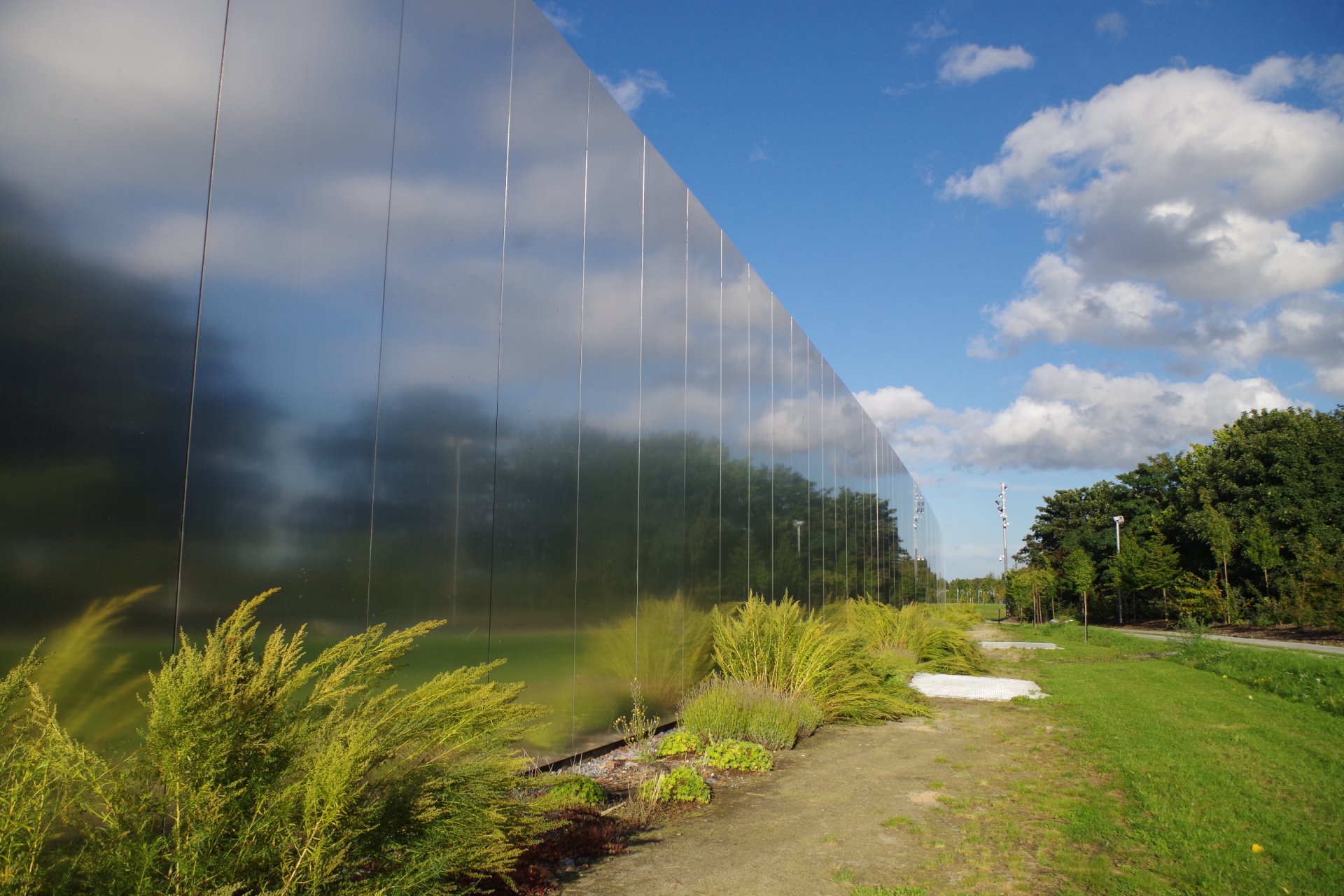

The buildings are cladded with polished aluminum sheet panels, allowing the surrounding landscape to be diffusely mirrored on the surfaces. Light ceilings lead natural daylight into the exhibition halls. At the centre of the complex a hall with completely transparent façades houses the main lobby of the museum.

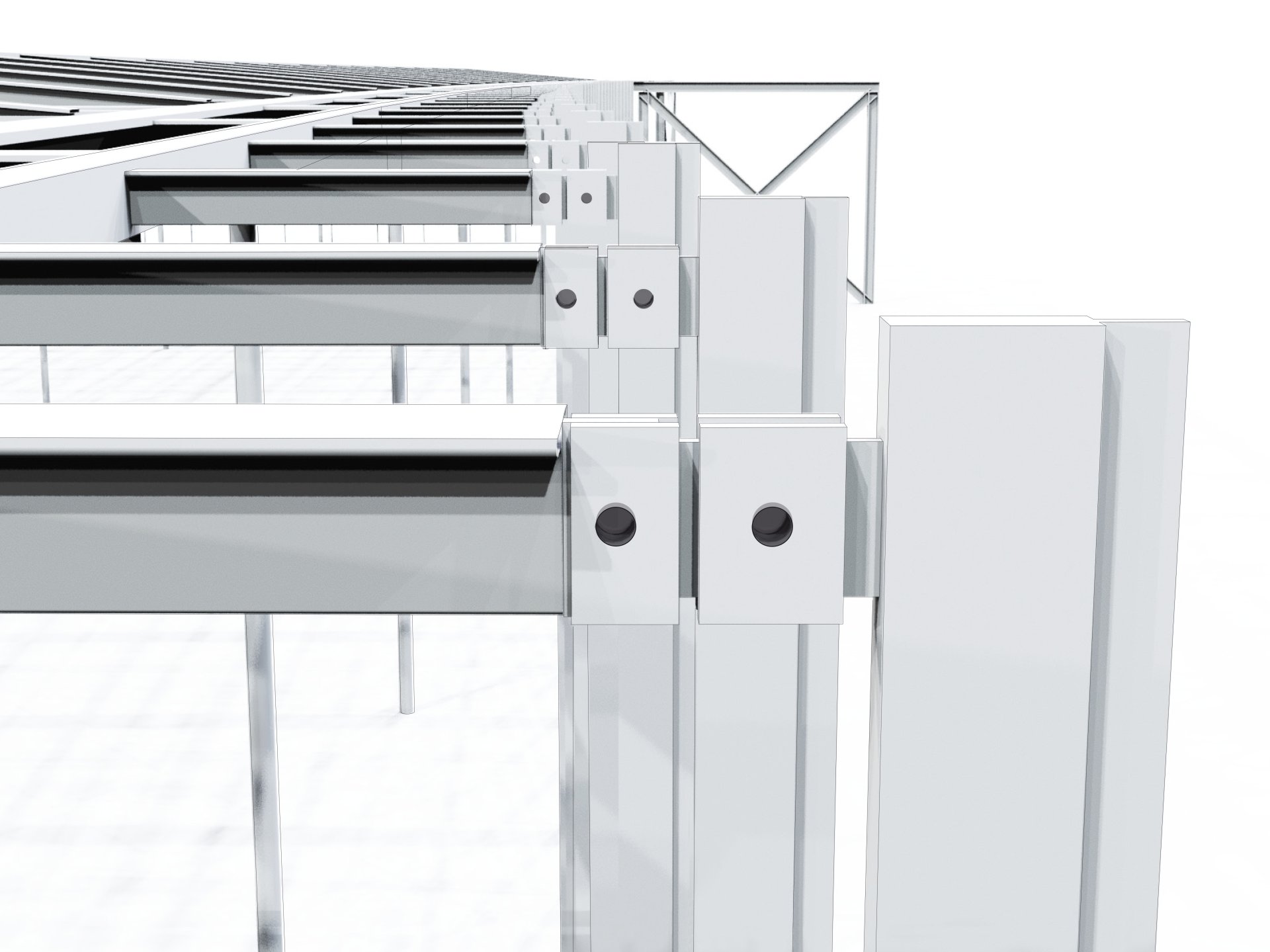

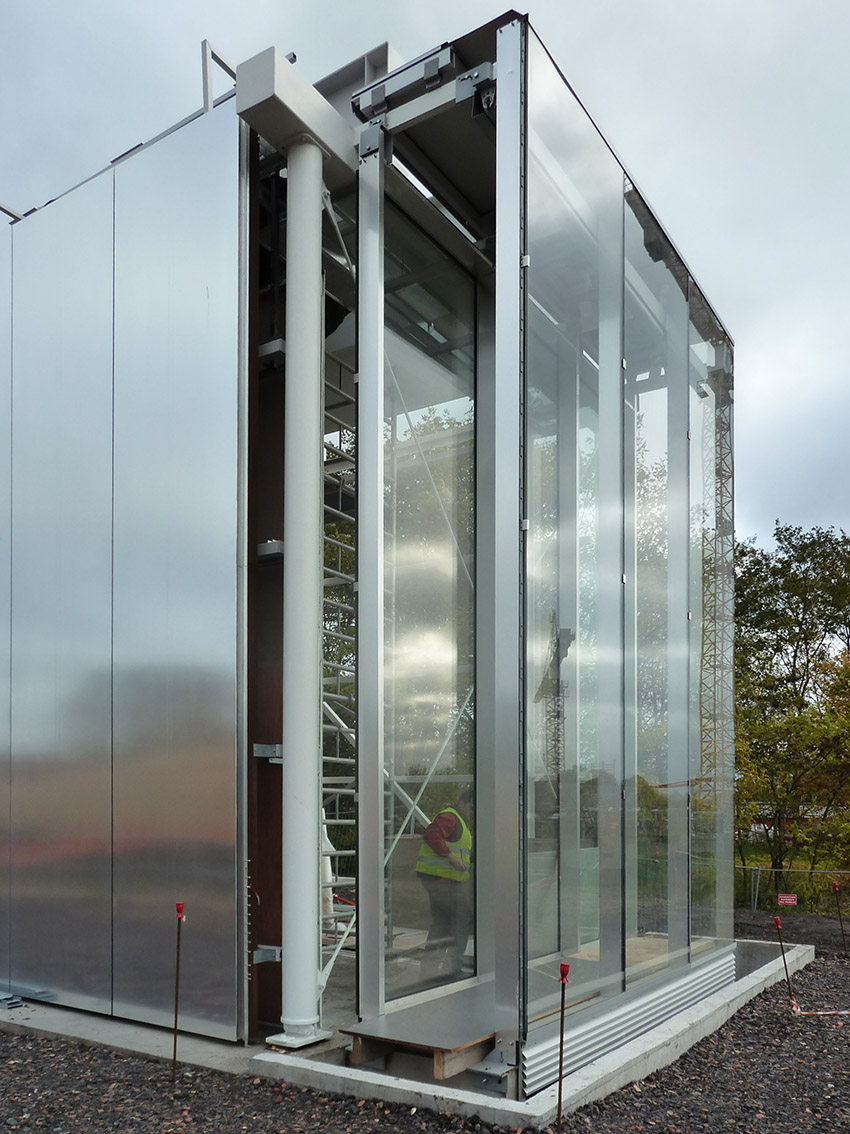

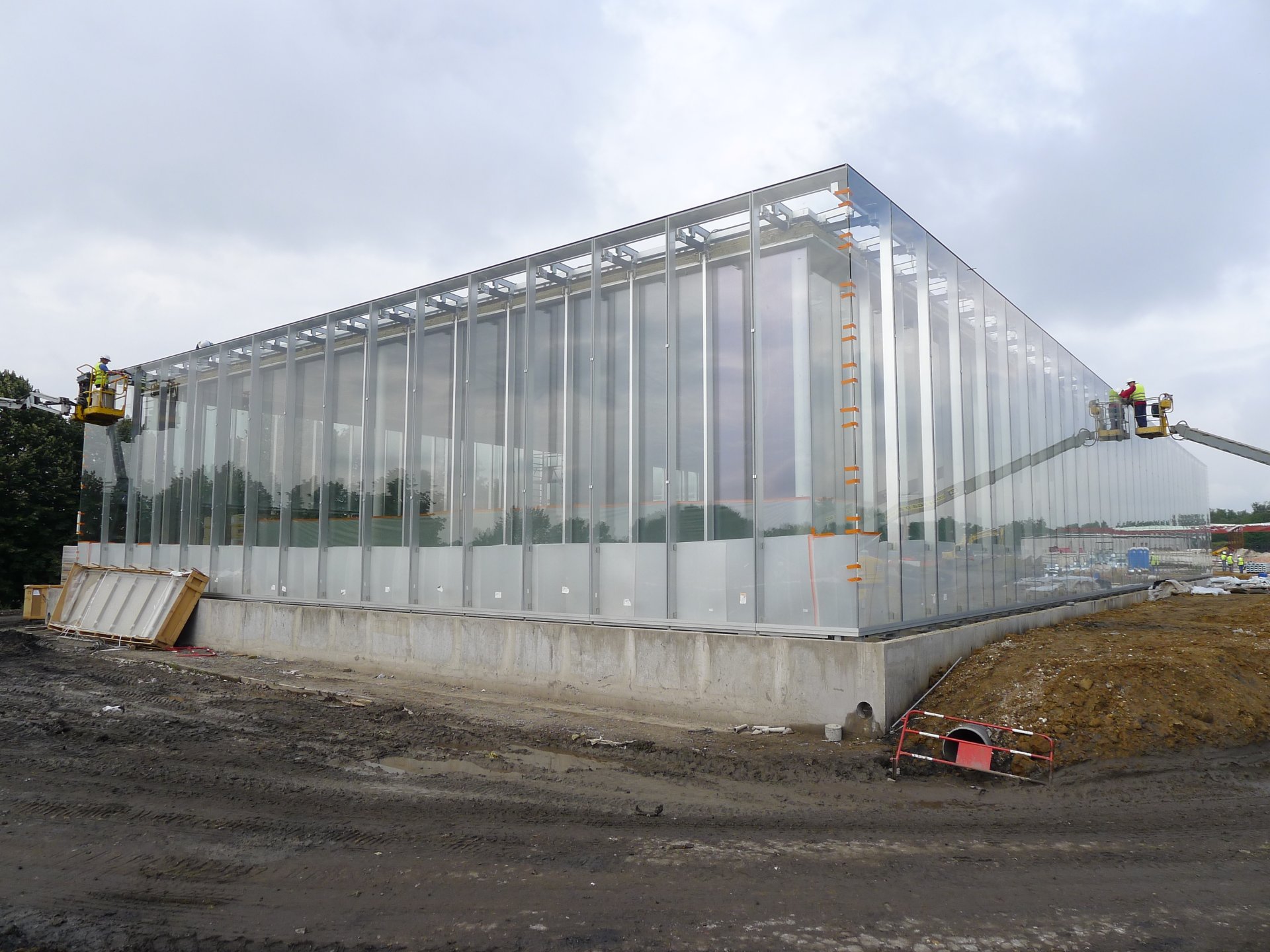

The insulation glass units with a total height of six meters take advantage of the maximum technical capabilities in glass industries at that time. One major challenge was to accommodate possible deformations of the reduced structural system of the hall with the very light and transparent façade system.
Région Nord-Pas-de-Calais, Musée du Louvre, Paris, France
SANAA Kazuyo Sejima & Ryue Nishizawa, Tokio, Japan
NFA: 28,000 m² | GFA: 14,000 m² | Surface area façade: 6,600 m² | Roofing surface: 12,500 m² | Haute Qualité Environnementale (HQE)
Classification: Exhibition halls : Reinforced-concrete with filigree steel roof structure | Entrance hall : Steel glass constructionService:
Structural engineering, Façade engineering
Equerre d'Argent 2013
ICONIC AWARDS 2013, Project of the Year
Leichtes Tragwerk, filigrane Fassade für den Louvre-Lens
