Bauhaus Archiv Tower

en | de
City, Country Berlin, Germany
Year since 2019
Client State of Berlin
Architect Staab Architekten
Services Structural Engineering
Facts Useful area tower: 4,200 m²

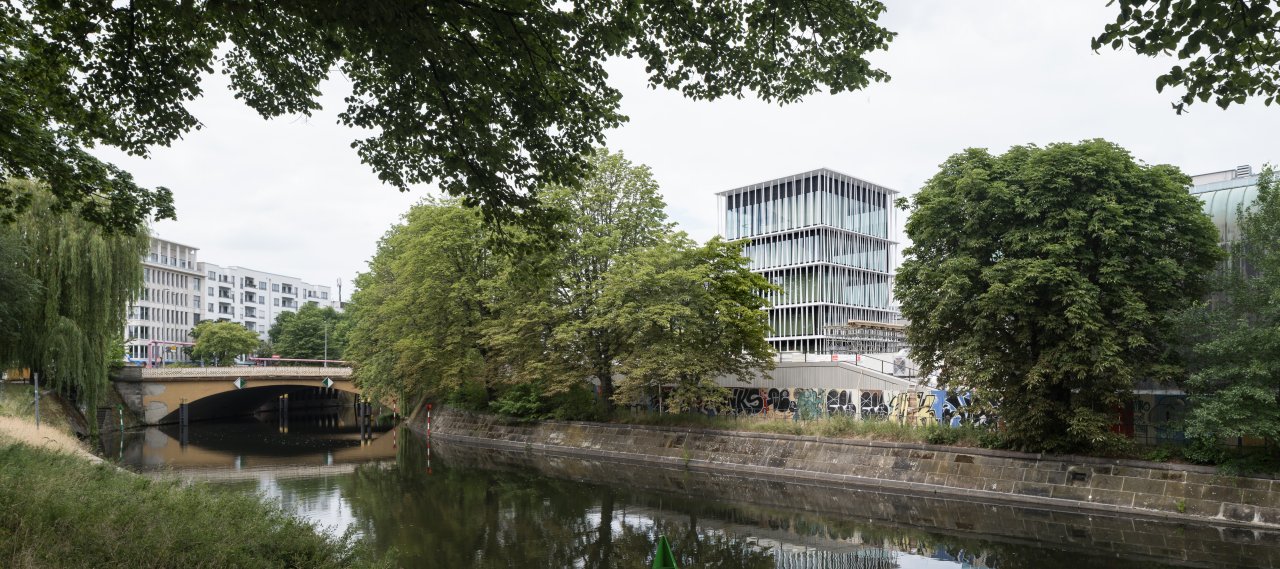

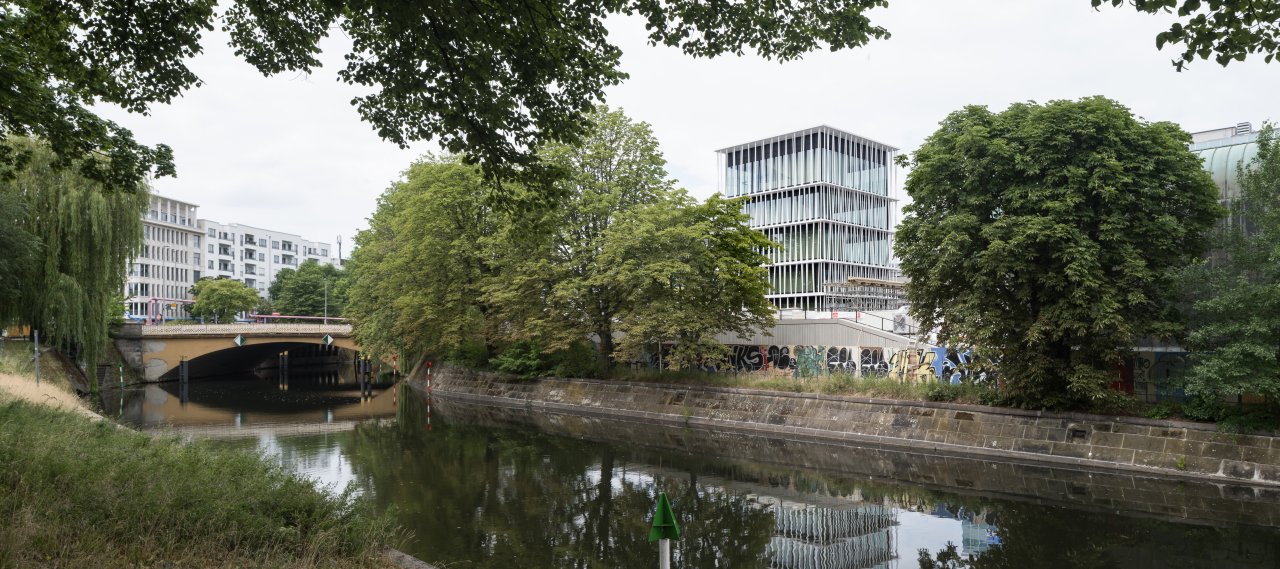

The 1,900 m² Bauhaus Archive and Museum of Design is currently being renovated, complying with its status as a listed building and extended by a new building with 4,200 m² of floor space. The five-storey, filigree tower is being built on the forecourt of the Bauhaus Archive, serving as the future main entrance to the museum. It will house all the museum's public services, forming the centre of the extension. The museum's foyer is arranged as a one-storey block around an inner courtyard that connects the extension areas with the existing building. The new exhibition areas are set in a basement below the forecourt.

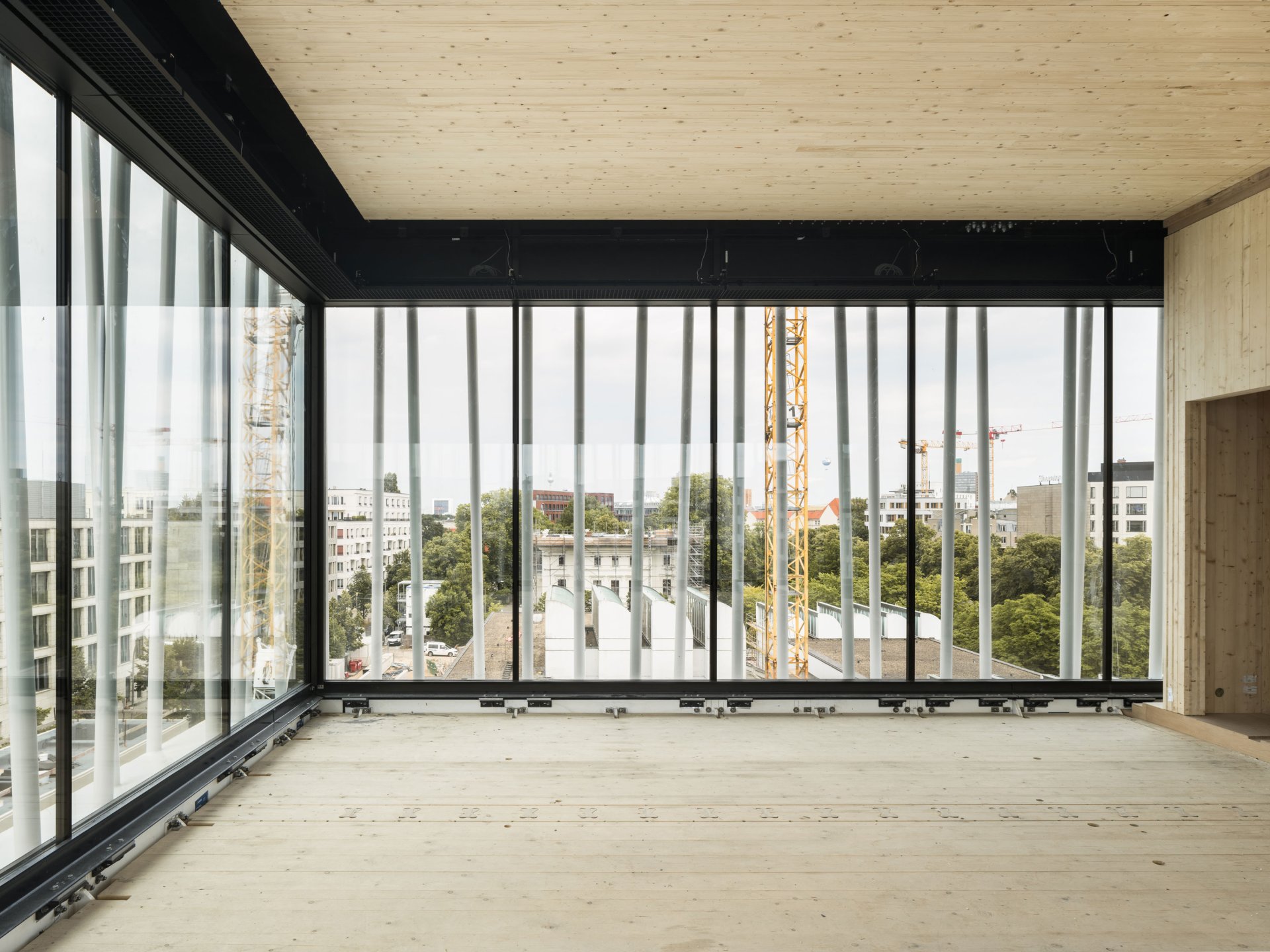

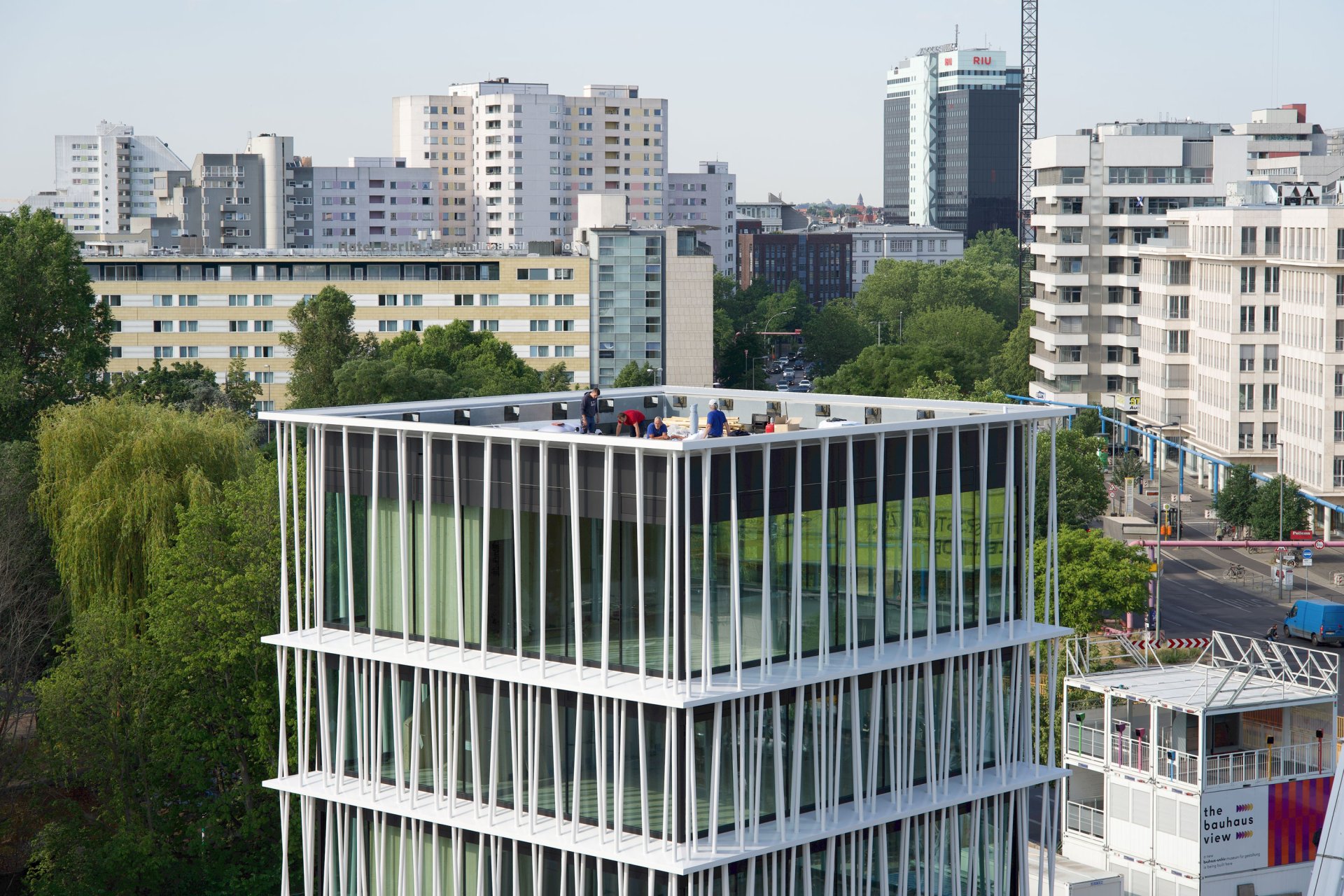

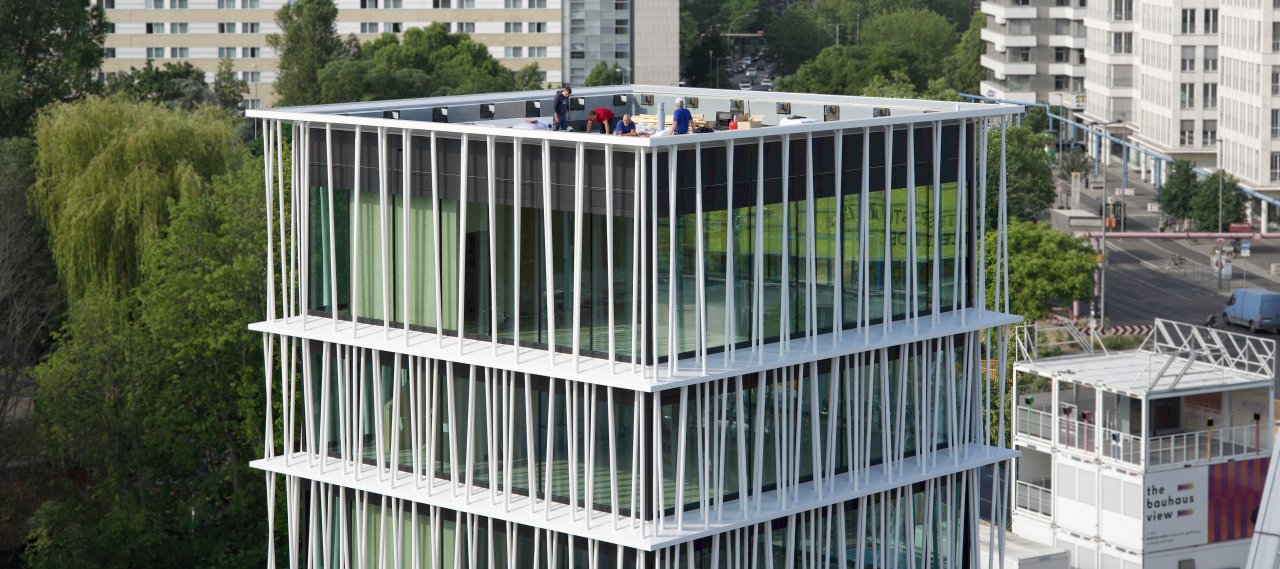

The tower building with its five floors above ground is planned as a hybrid construction in steel and timber. Between 112 and 156 thin steel columns are arranged in a dense grid around an almost square ground plan for each storey. The columns are located outside the façade, slightly inclined and offset each other. On each floor, they connect to a trapezoidal box girder on the outside and run parallel to the façade. Inside the building, the floor slabs rest on beech girders and on the outside steel box beam on the façade side. In addition, an escape staircase is inside the tower and is also planned as a timber construction.
