Taiyuan Botanical Garden - Domes

en | de | fr | hu
City, Country Taiyuan, China
Year 2015–2021
Client Municipality of Taiyuan, China
Architect Delugan Meissl Associated Architects
Services Structural Engineering
Façade Engineering
Concept Design
Facts GFA: 9,290 m² | Span Tropical Dome: 95 m | In collaboration with: StructureCraft (Engineer-Build)

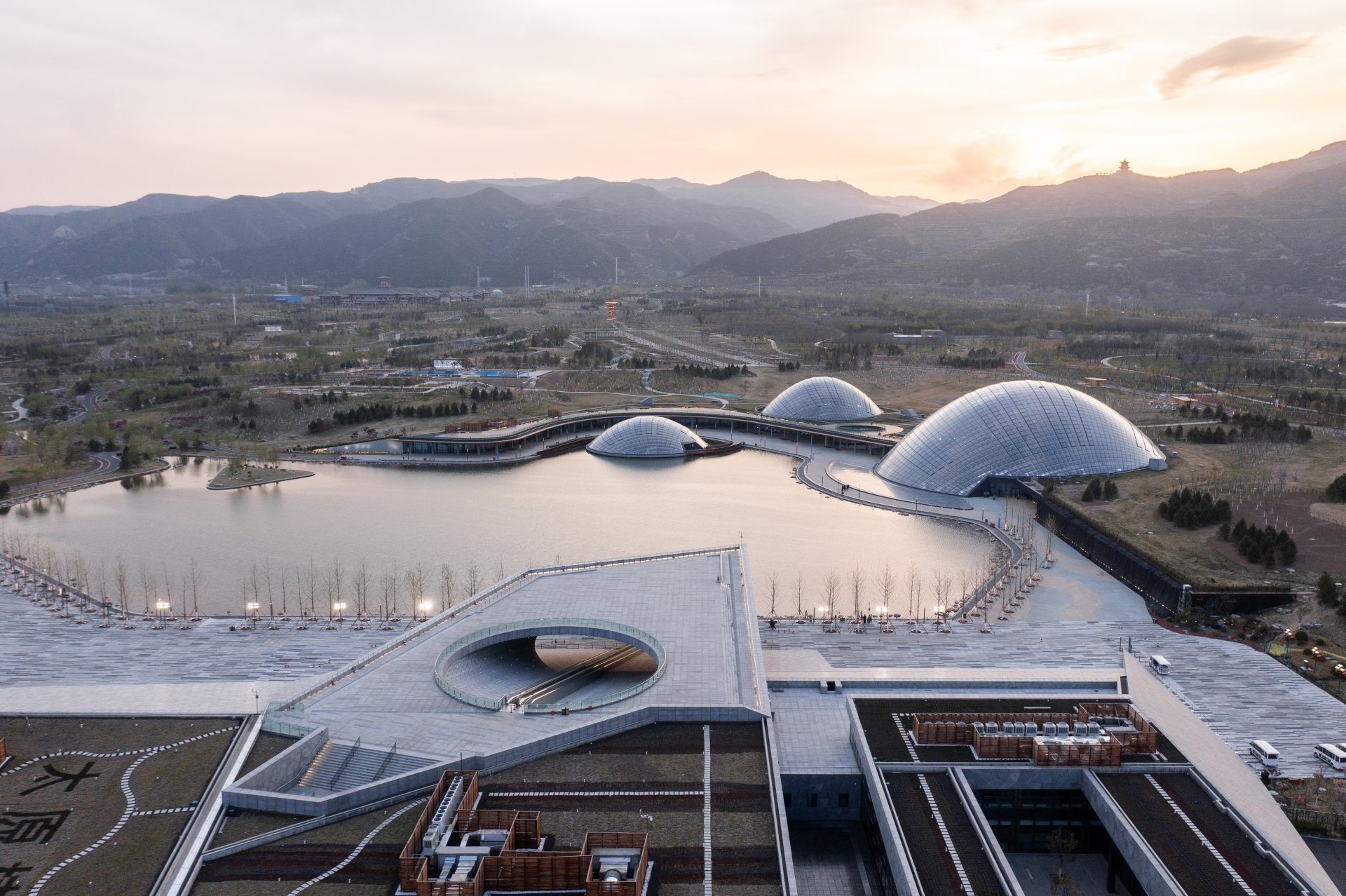

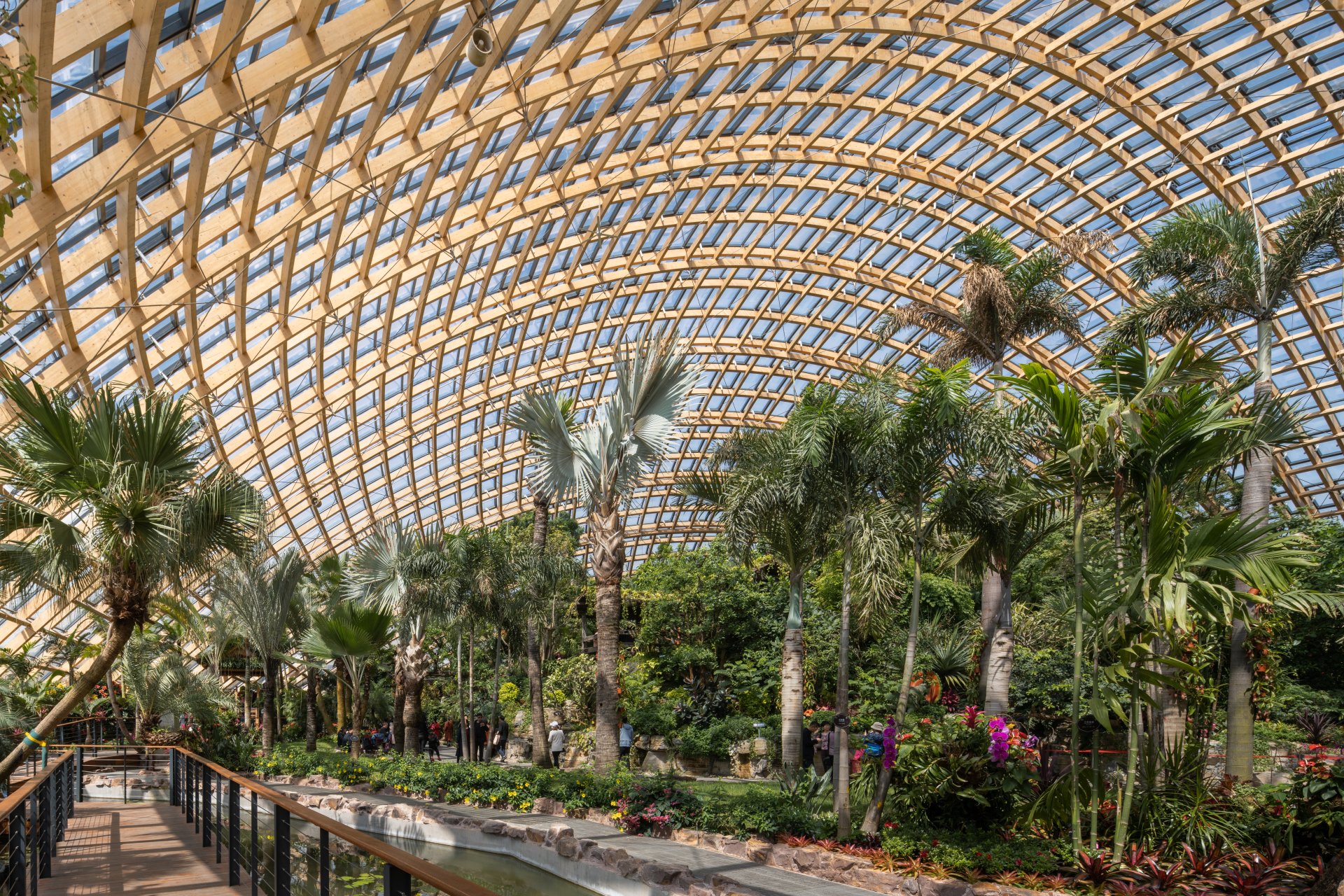

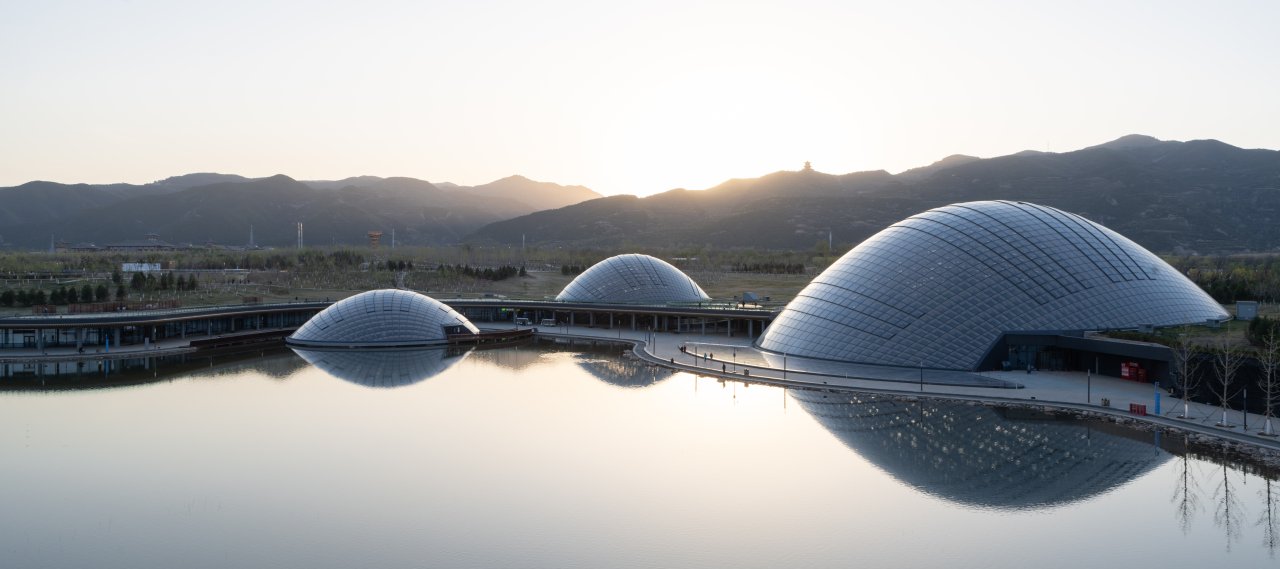

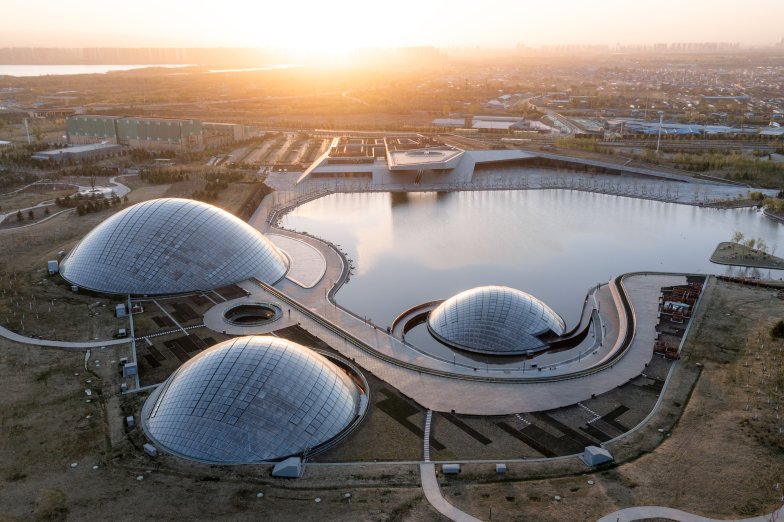

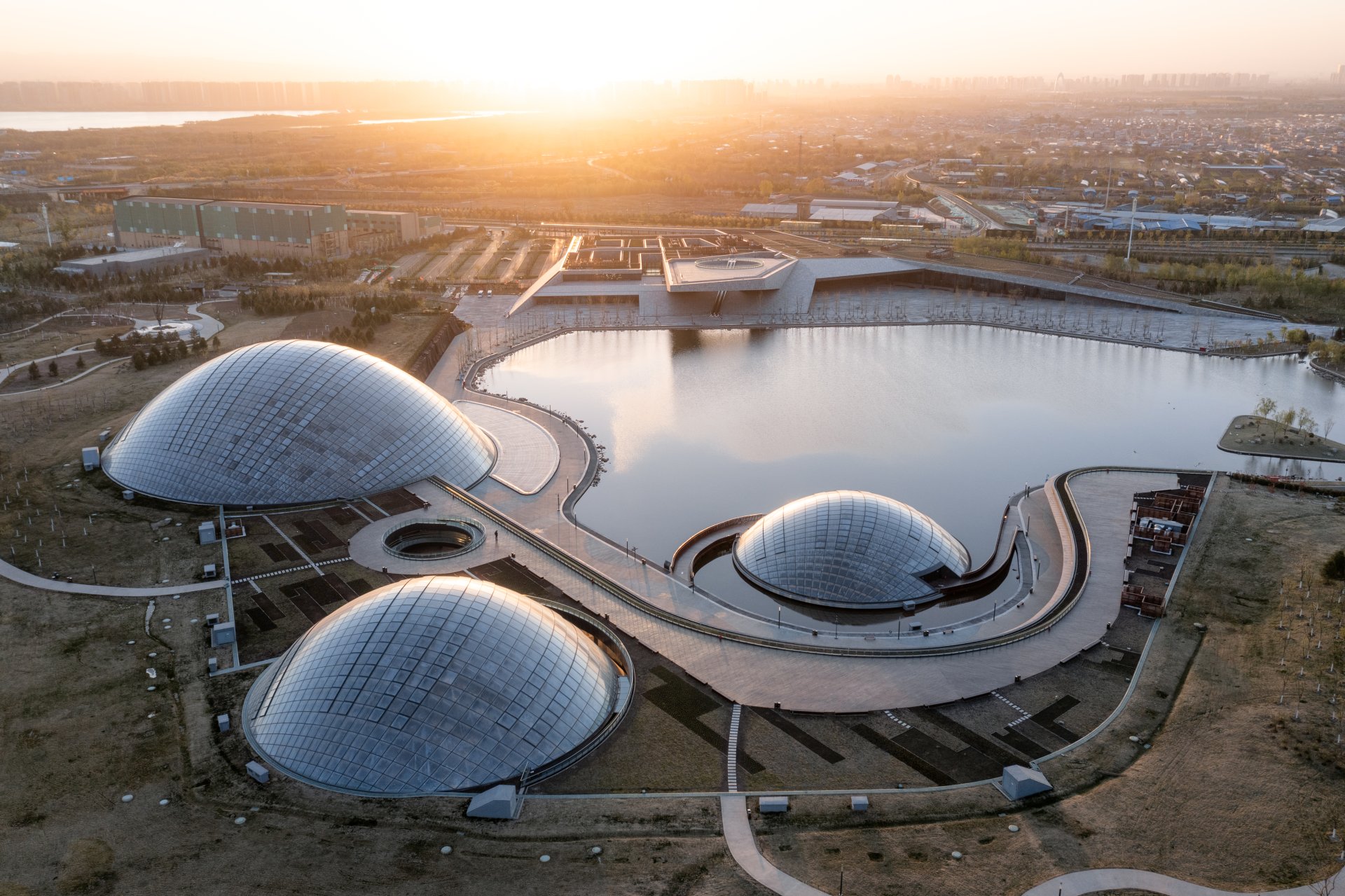

The botanical garden complex includes a trio of domed glass greenhouses housing tropical, dessert and aquatic plants, a bonsai museum, a research centre, a visitor centre, and a restaurant & tea house. The design integrates an artificial landscape of mountains, hills, vegetation, water, and buildings.

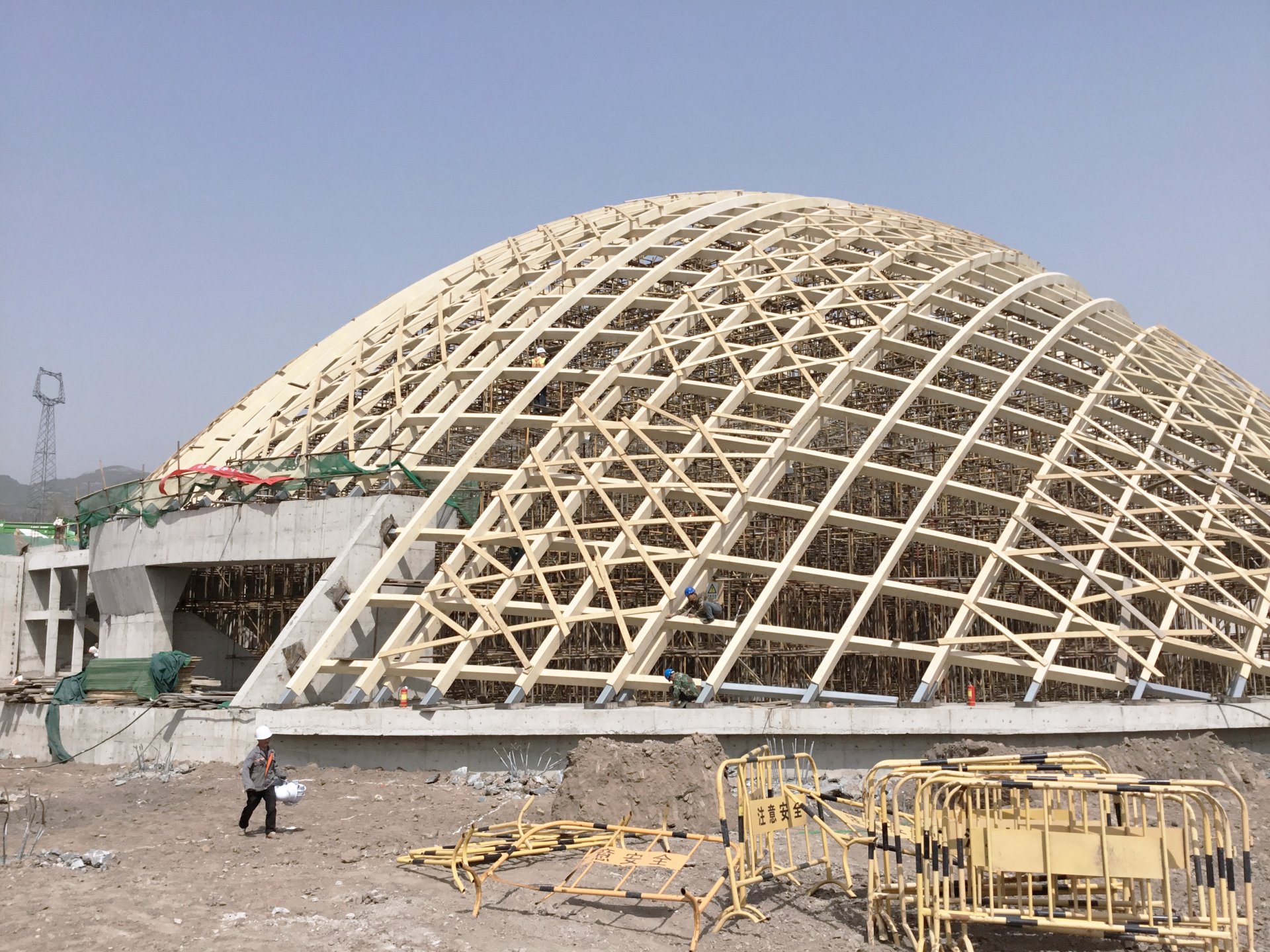

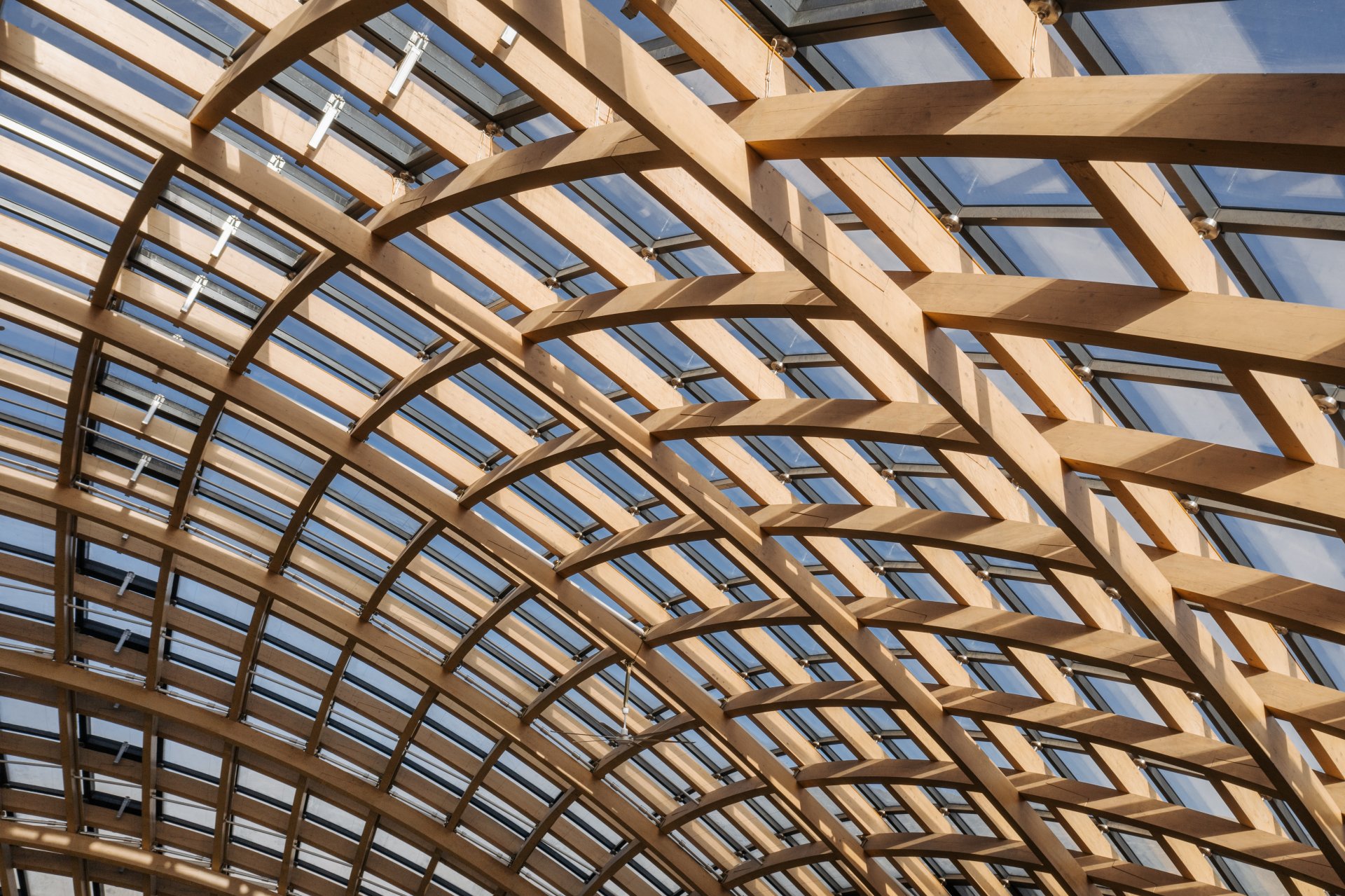

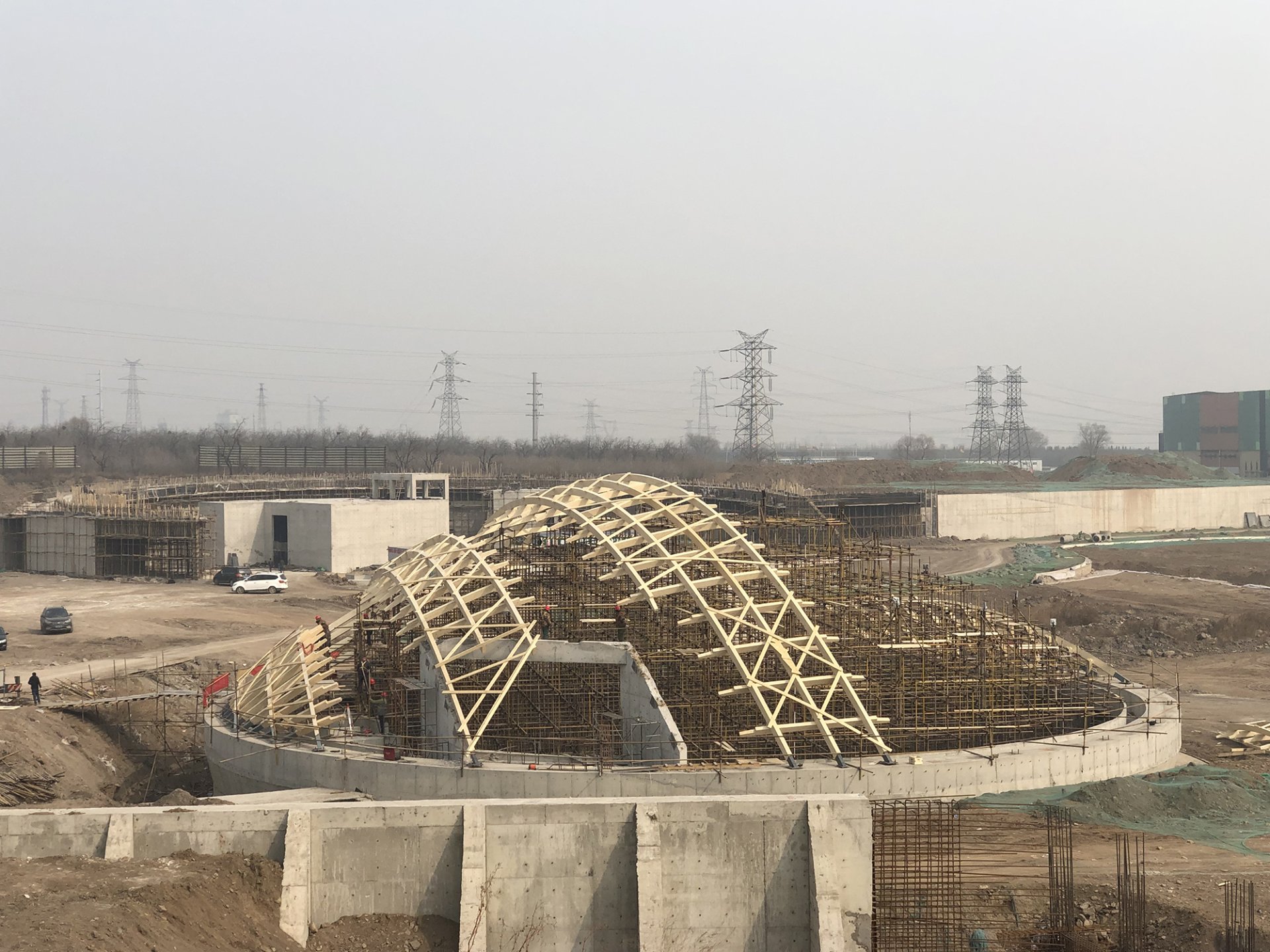

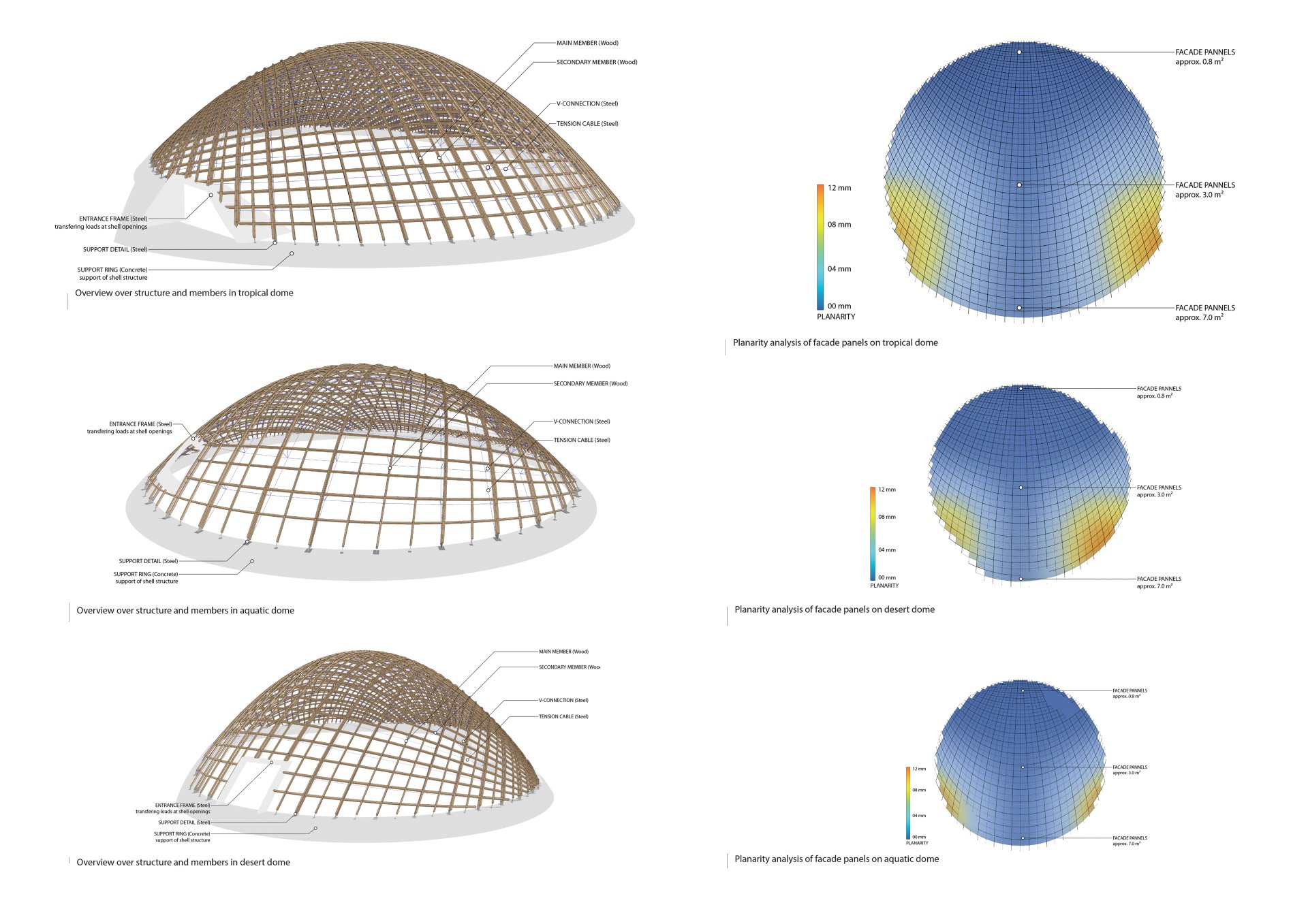

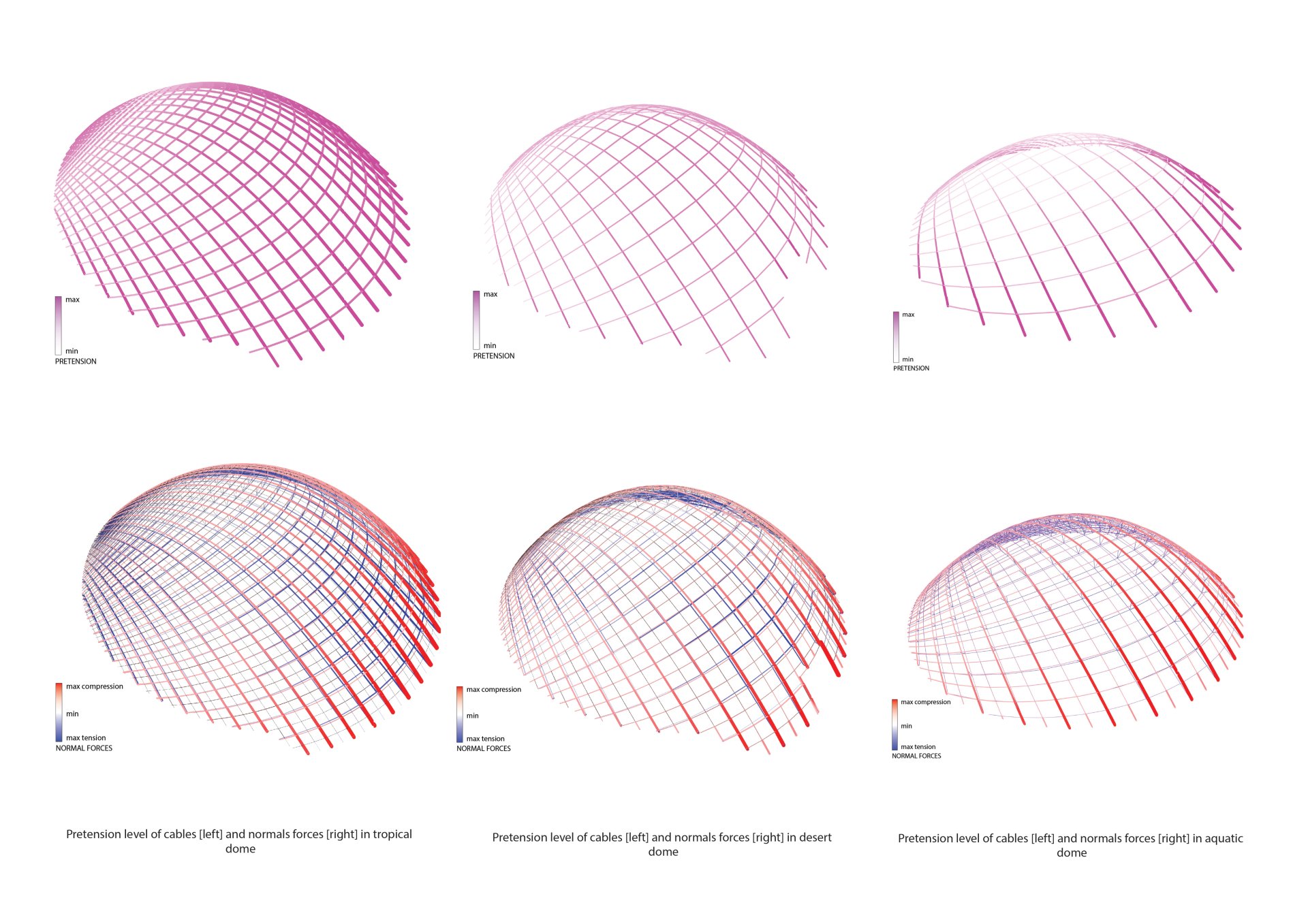

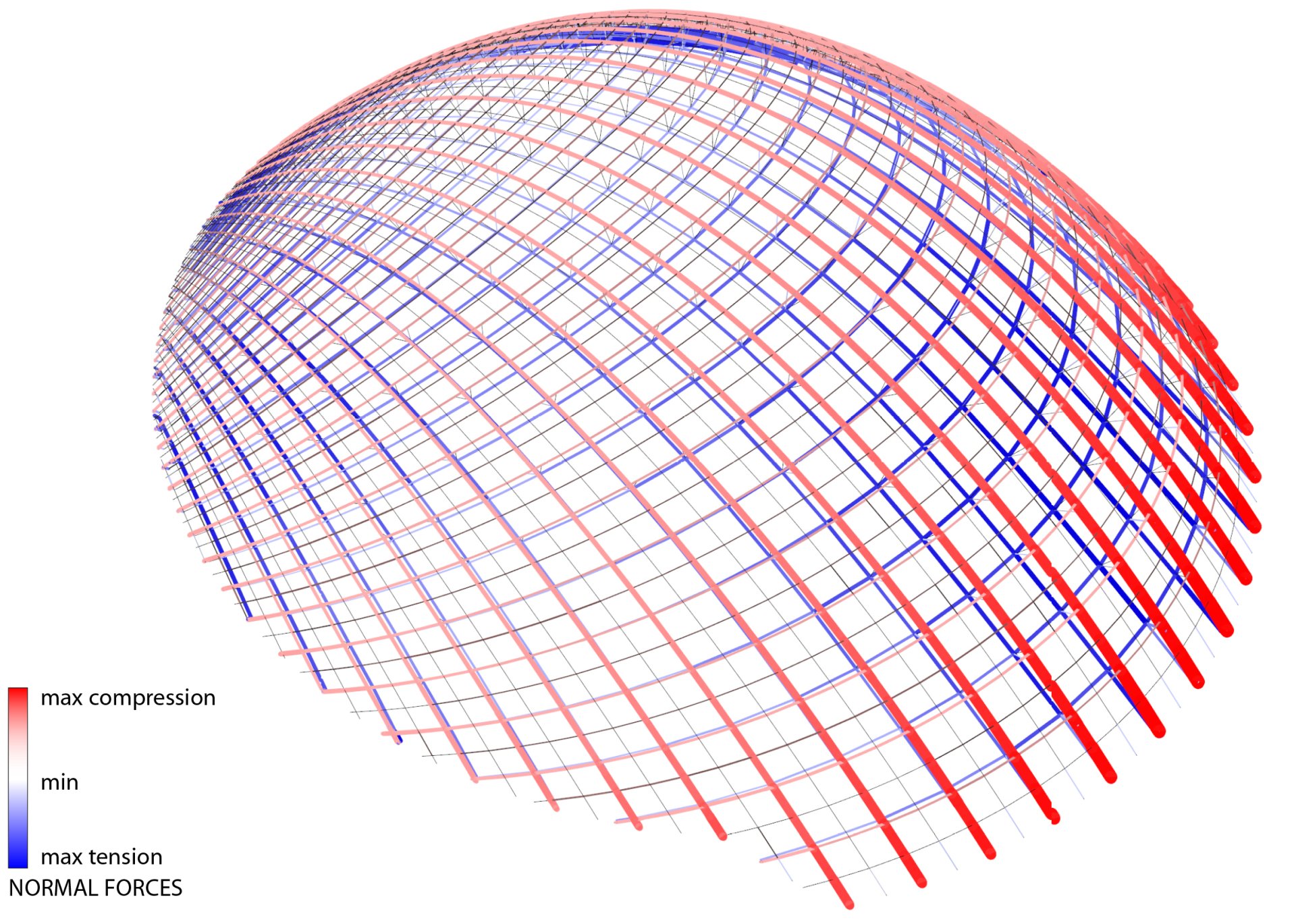

The domes act as structural shells consisting of two layers of wood beams in the longitudinal direction, and one layer cross-wide braced with post-tensioned cables.

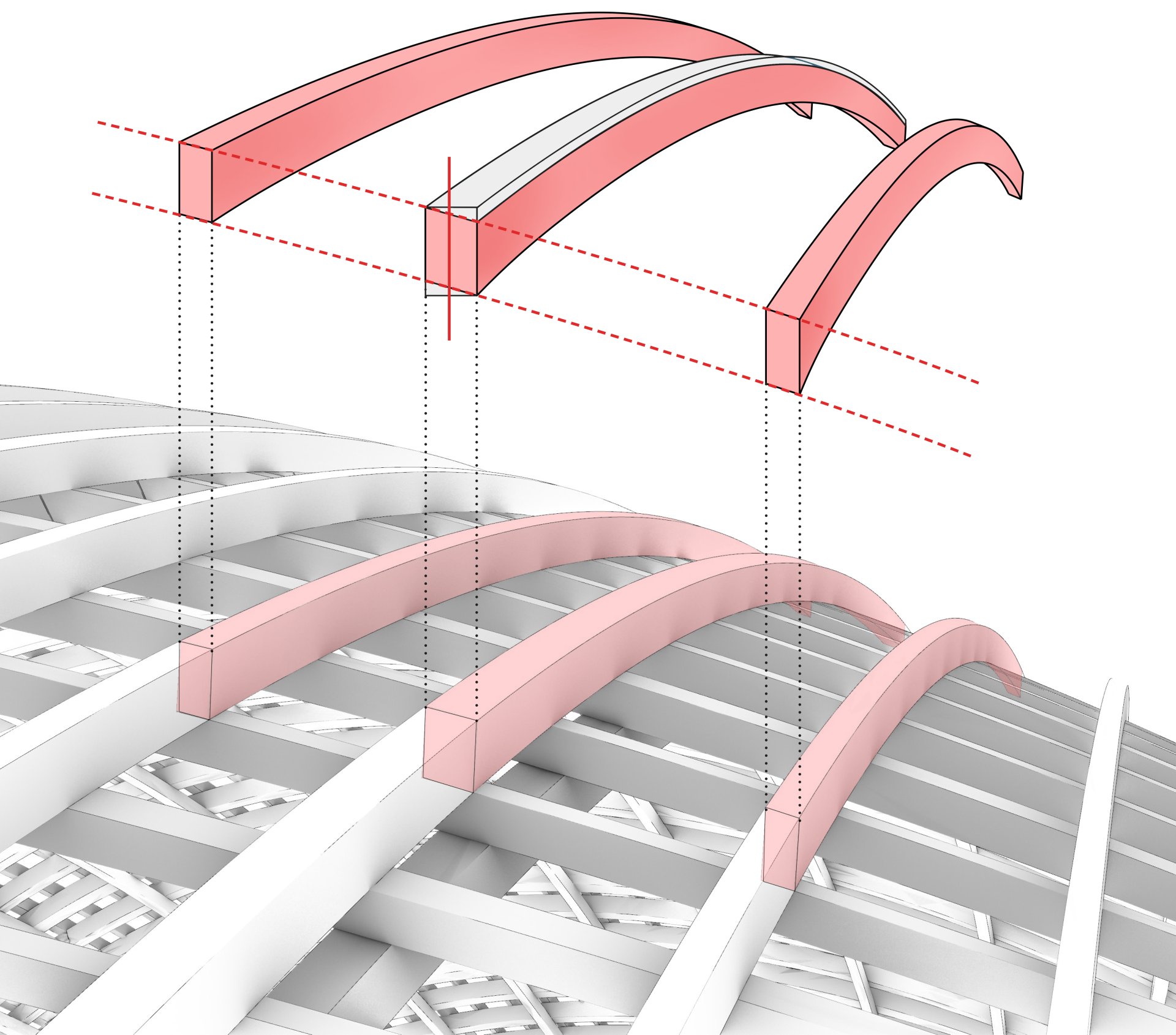

The overall structural concept for the complex draws from traditional Chinese wood roof structures and reinterprets the structural and geometric logic to combine the loading aspects with desired aesthetic expressions. Three main principles were considered: stacked and interlaced beam layers, stages, and scaling layers—adding or removing layers towards supports or edges and proportion between space and structure.

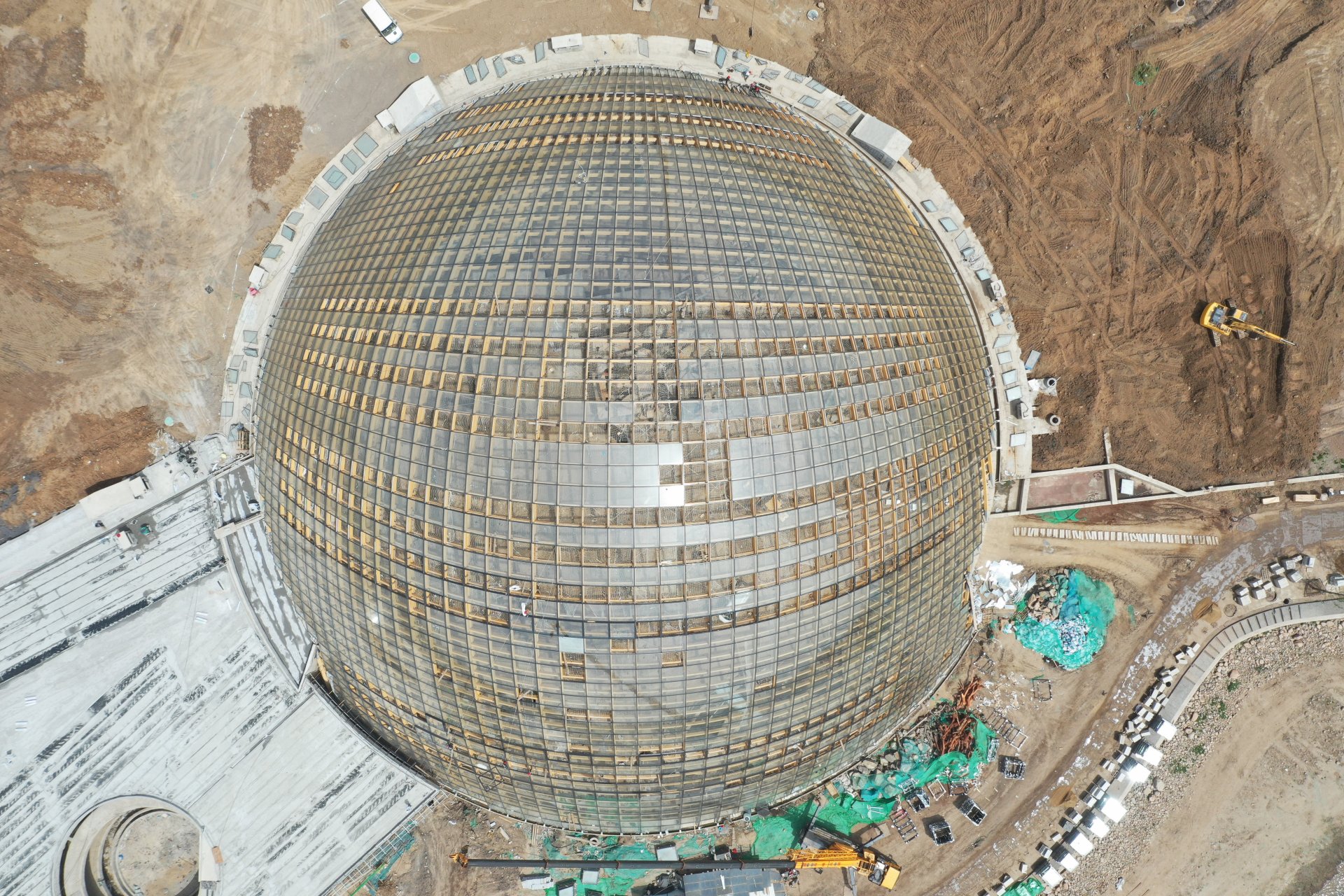

The design of the façade for the domes allows for significant solar gains on the south facing half of the dome while limiting the heat loss on the northern half. A system of timber or aluminium sub-structure, double-glazed façade units and opaque insulated sandwich panels are incorporated.
