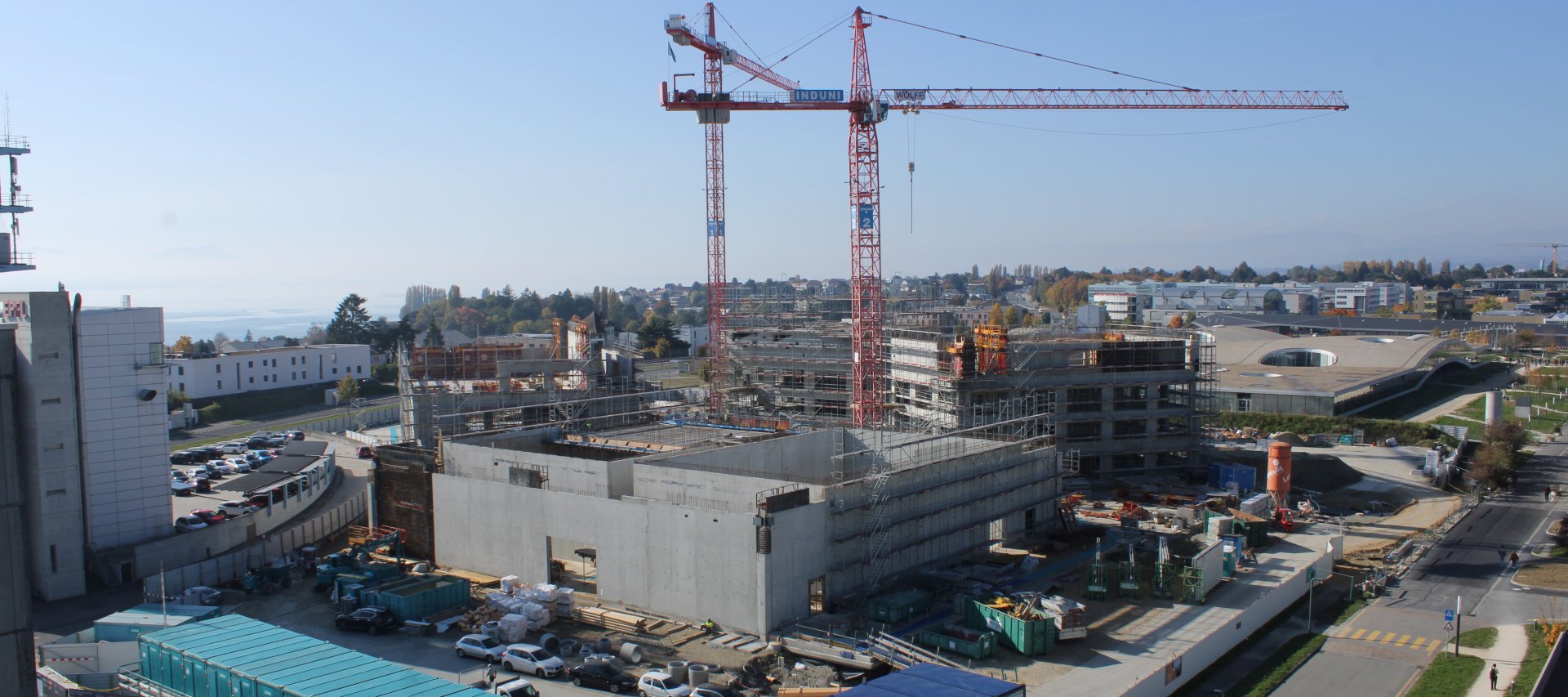

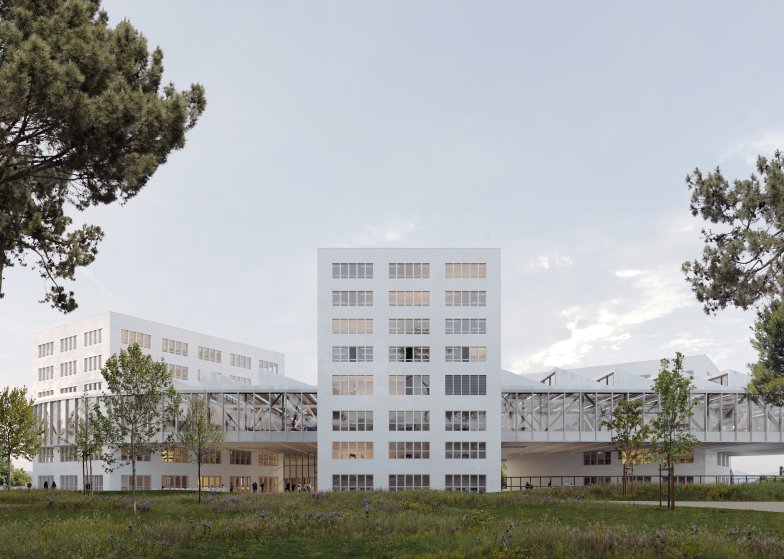

The project for the Swiss Radio and Television (RTS), amid the EPFL Campus in Lausanne, Switzerland, consists of four cores (called the emergences) which support a suspended level (called the Champ), situated about 8 m above the ground level. The emergences house a television studio, a radio studio, a media library/café as well as administration offices. The Champ is dedicated to office spaces and meeting rooms. The underground level accommodates technical spaces on two levels and a parking on one level.

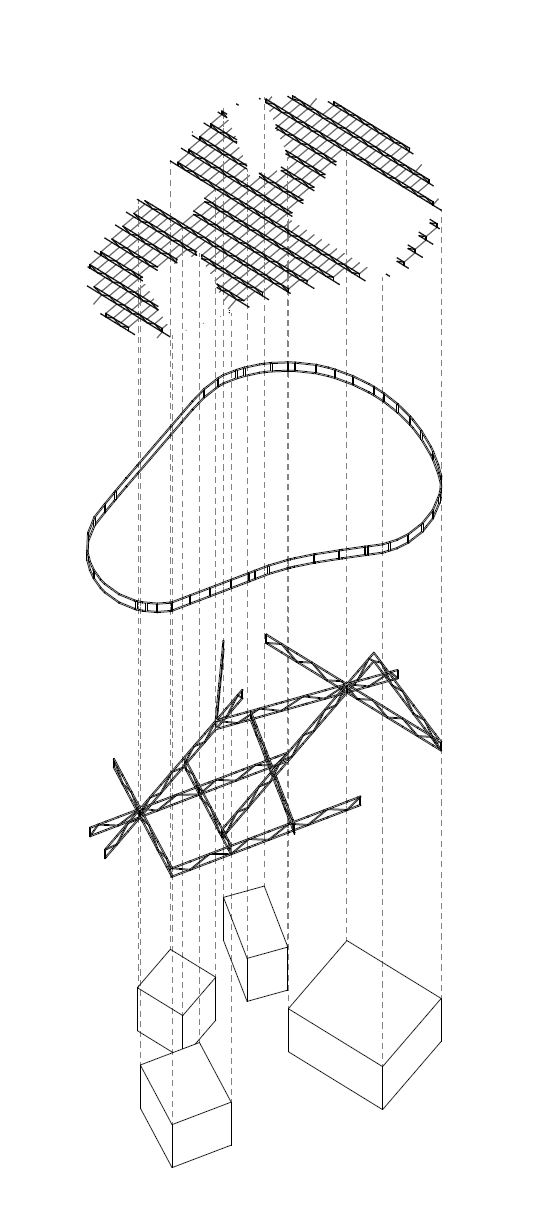

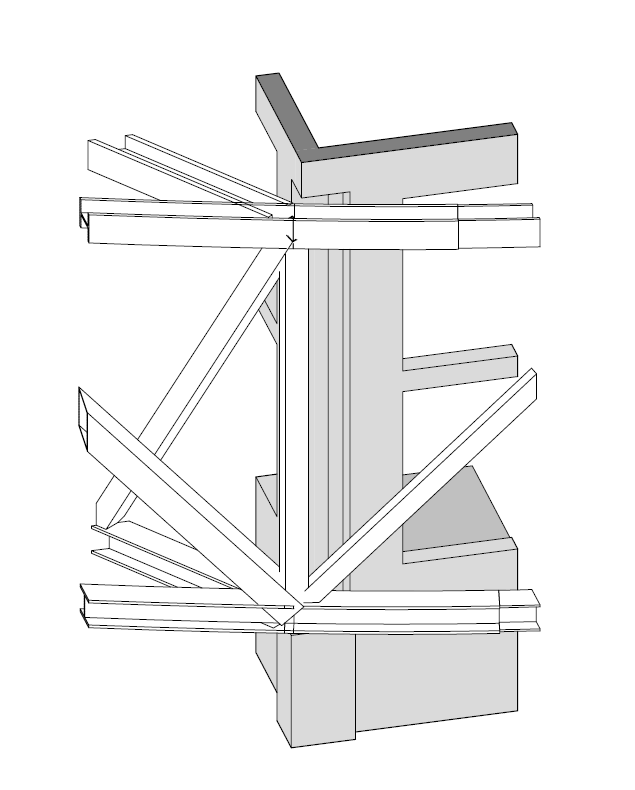

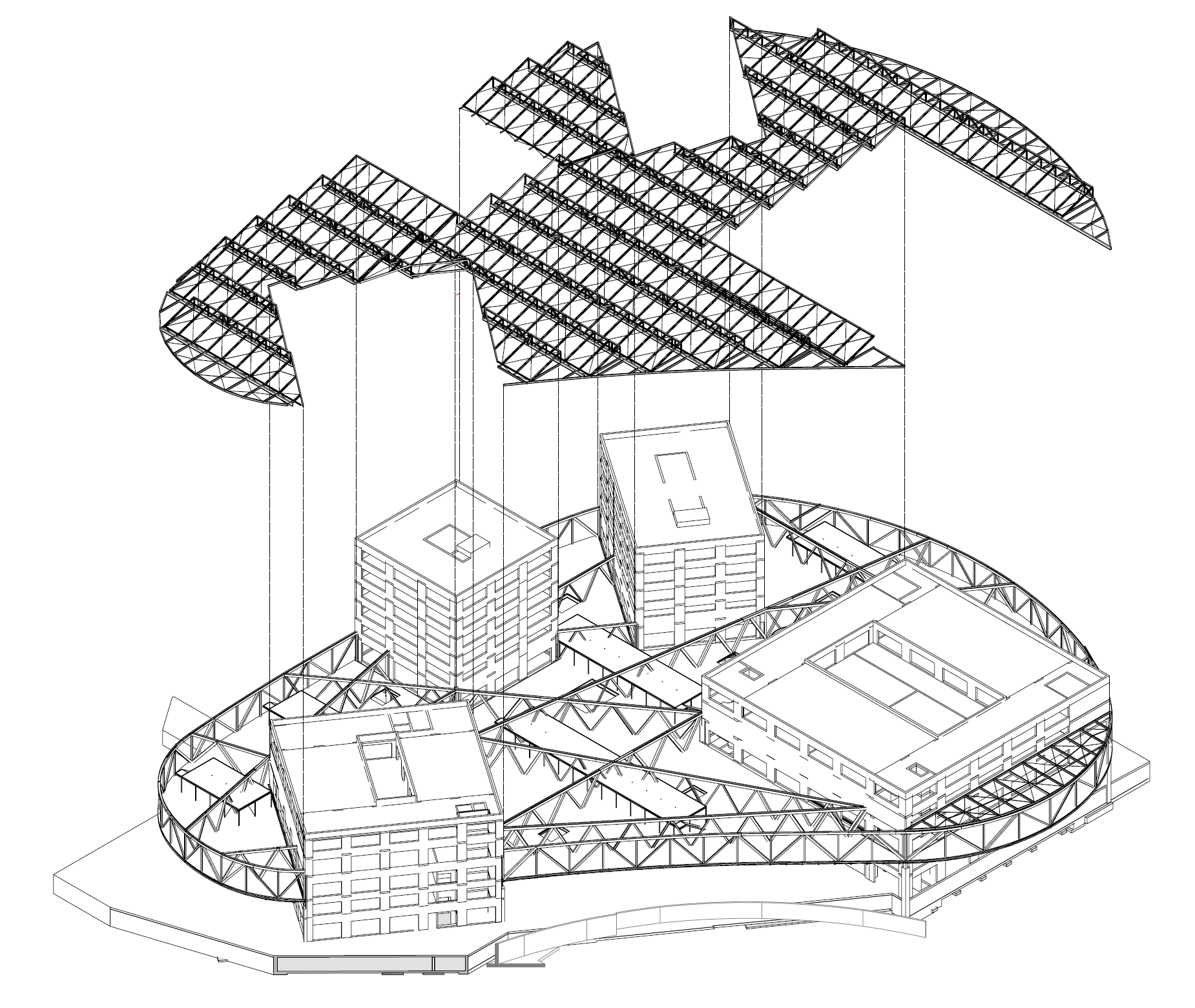

The four emergences that support the Champ (the field) consist of reinforced concrete walls which are placed at their periphery, at the vertical circulation ways, and at the periphery of the studios. The position of these emergences and their orientation have been optimized by a genetic algorithm, in order to minimize the deformation of the structure and hence, the required steel quantity.

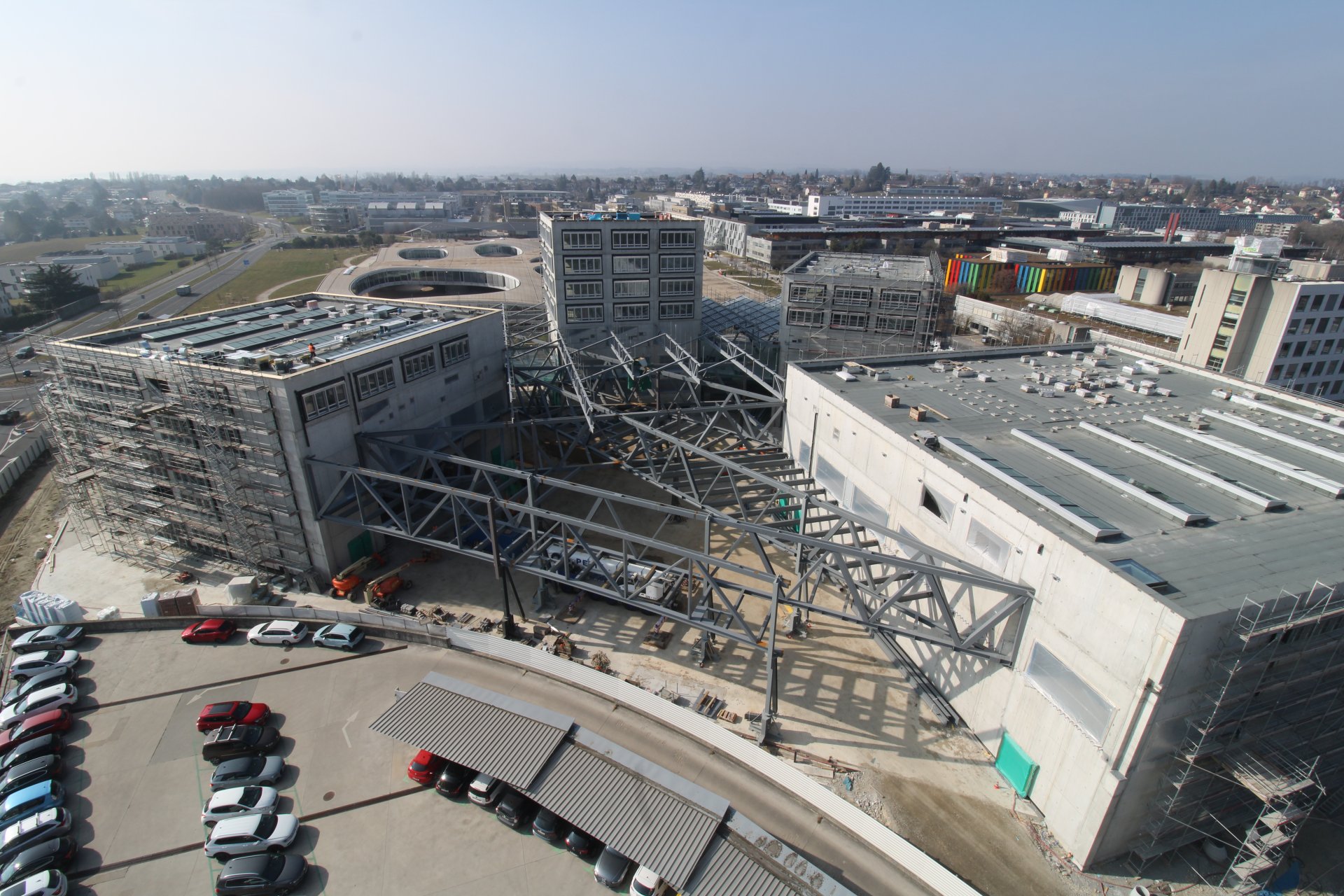

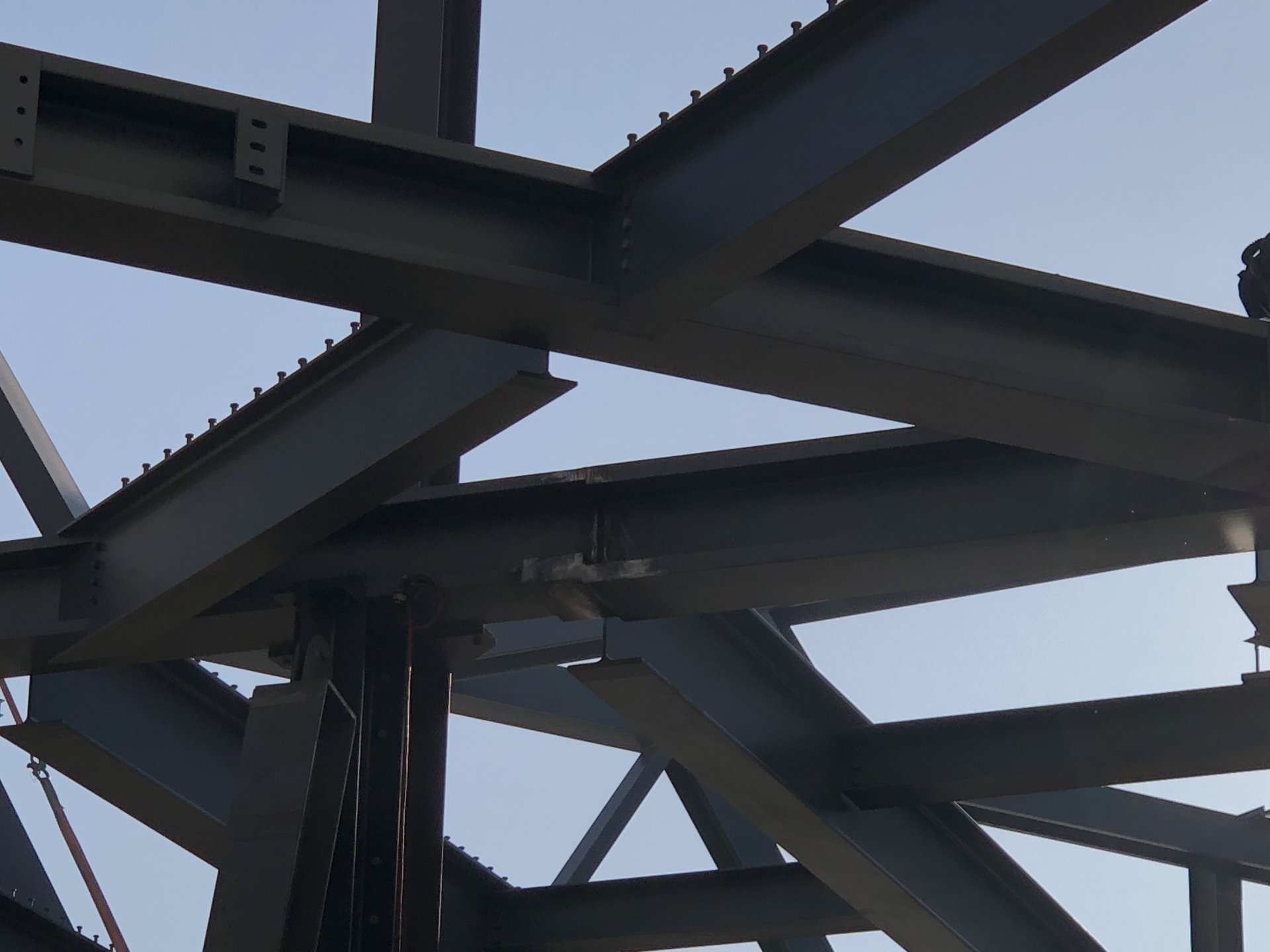

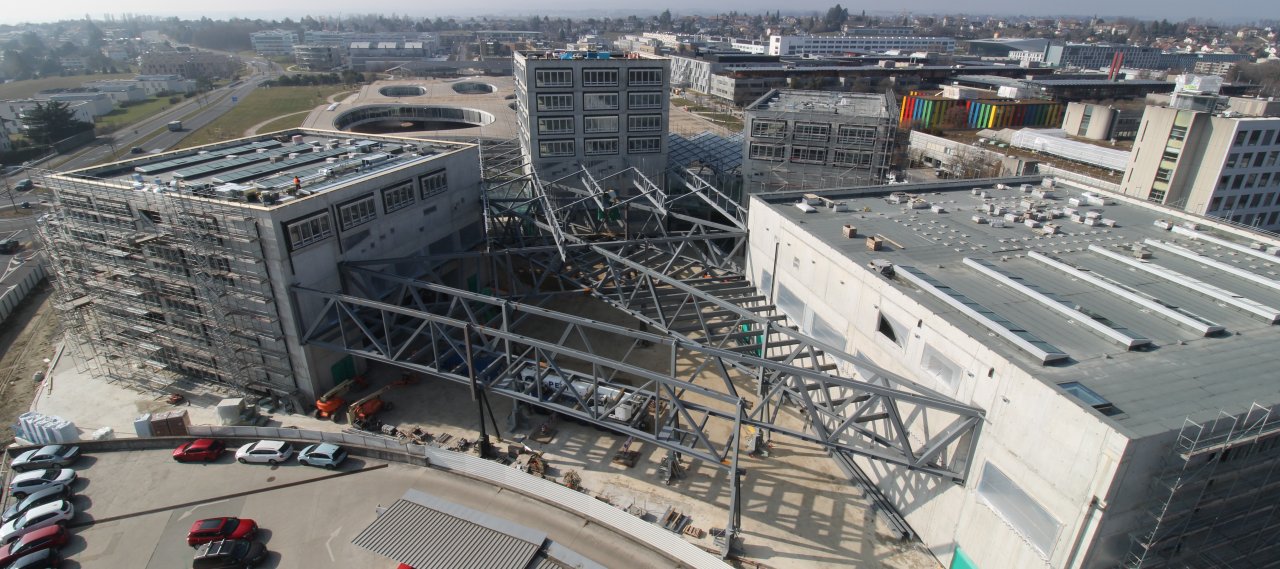

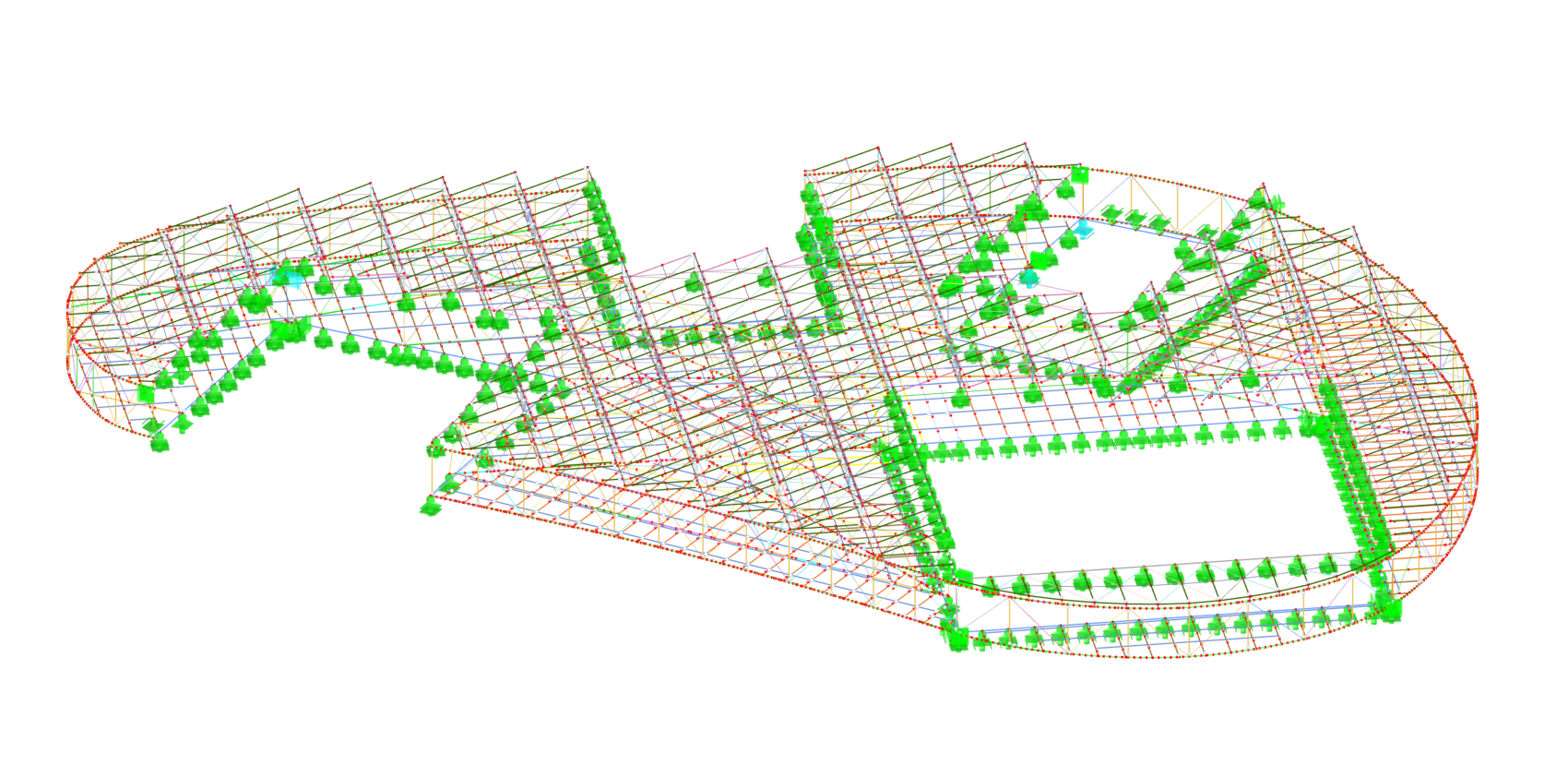

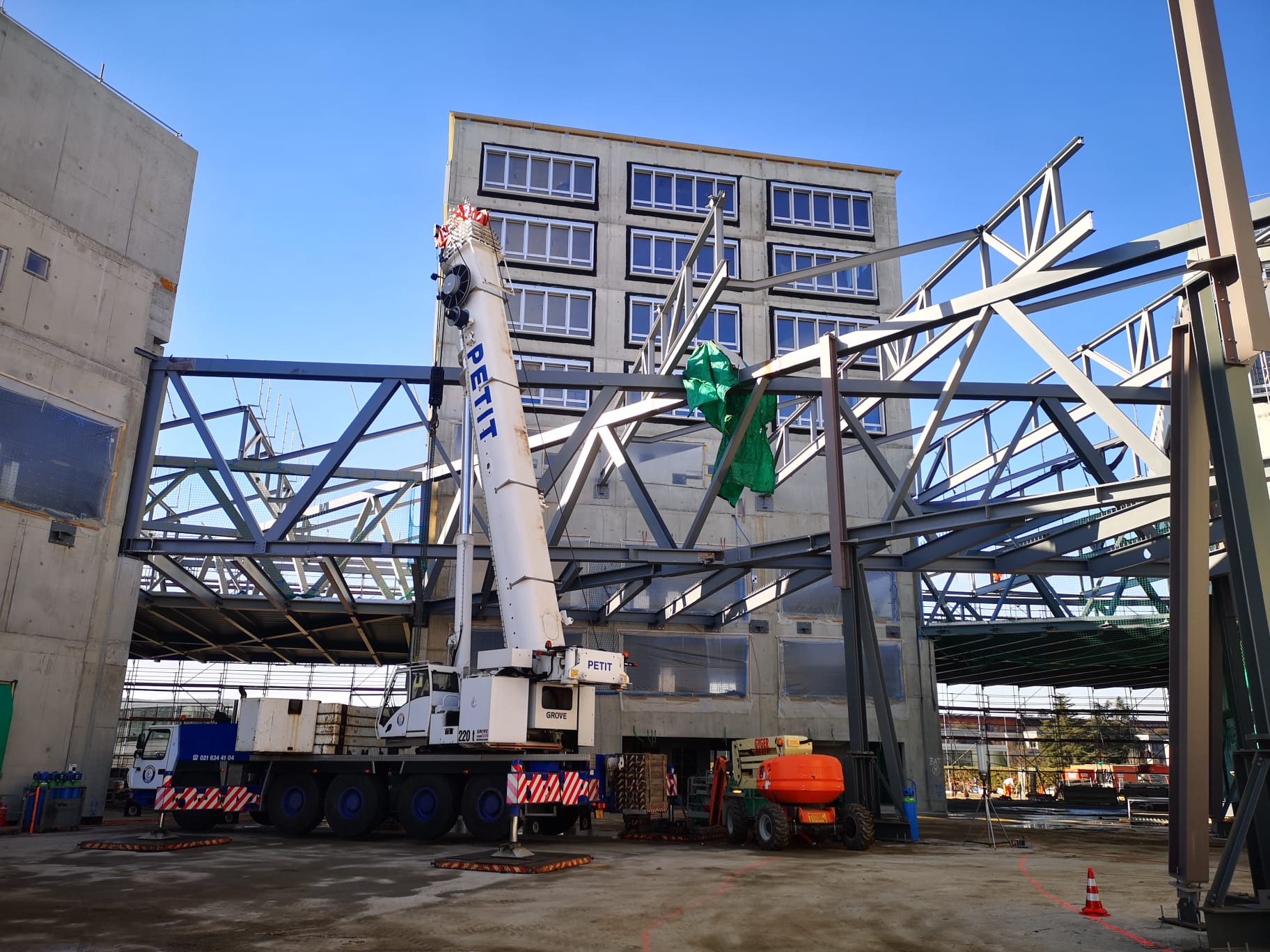

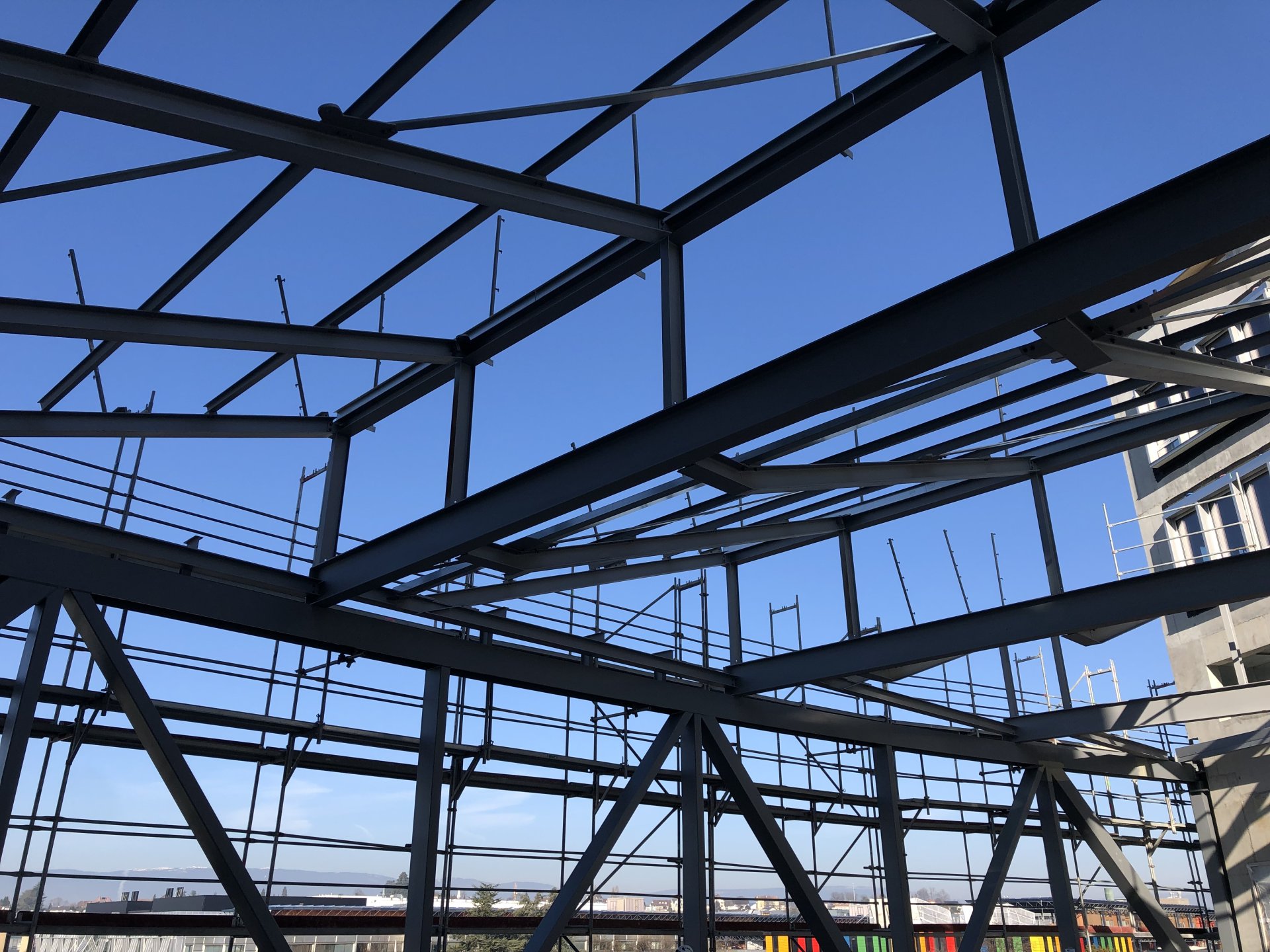

The structure of the Champ (suspended level) exists of 10 main trusses which are supported by the concrete walls of the emergences. Their orientation is irregular and optimized as well by an algorithmic process. The secondary beams are composed of Warren beams, which are positioned where the sheds are, on a regular spacing of 7,5 m. The floor, which is composed of a metallic frame and a composite slab (collaborating steel panel), is suspended to those secondary beams.
Radio Télévision Suisse
Office Kersten Geers David Van Severen
NFA: 34,900 m²Service:
OFFICE Kersten Geers David Van Severen: Campus RTS, in: ARCH+ N°220, 13.08.2015, S.184-189
17 June 2022
VIDEO: FOUR FRANKFURTIn the middle of Frankfurt am Main, four unique high-rise buildings are currently being built on the former Deutsche Bank site. With their forward-looking architecture and sustainable urban development concept, they will bring together living, housing, and working in the centre of the banking district.
Bollinger+Grohmann is - together with our Arge partner Werner Sobek - responsible for the structural engineering of the FOUR project on behalf of Groß & Partner.
The film looks behind the scenes and shows how we, as a team, master a significant project of this kind.
03 June 2022
Opening of Heidi Horten CollectionWe are thrilled to announce that the new private museum for the Heidi Horten Collection opened today in Vienna after almost two years of construction work!
The refurbished building consists of a new underground level and four above-ground floors: an administrative level and three exhibition levels connected by free-floating staircases. The three upper levels are supported by four main supports at the ends of the existing central walls, the façade level and the firewall to the neighbouring building. The façade was preserved in its original state, apart from the incision for the new entrance area.
15 June 2022
Lecture: Flex.meets ...!Klaus Bollinger gives the first lecture of the new series of events for students, architects, engineers and anyone interested in construction called "FLEX.meets ... !" hosted by the FLEX professional research team from HTWK Leipzig.
Date: 15th of June 2022 at 6 pm.
Venue: HTWK Leipzig, Germany, Lipsius-Bau, Raum Li415
23 May 2022
Pavilion of Greater Paris MetropolisAs part of its participation in BAP2022, the Greater Paris Metropolis is proposing an exceptional architectural work, unveiling a pavilion that constitutes the first experience of a building based on the principle of a biodiverse wall.
Designed as part of a research project conducted by the ChartierDalix agency over several years, this structure is a massive load-bearing wall and a vertical floor inhabited by flora and fauna.
Photo by ©Camille Gharbi
Competition ENERGYHUB: 2nd prizeCongratulations to raumwerk Architekten for winning 2nd prize in the competition EnergyHub, energy centre and transformer station at Deutzer Hafen in Cologne, Germany. The building ensemble provides a transformer station, energy centre and parking facility that captivates with its uniform appearance and, at the same time, refers to the tradition of brick expressionism of the 1920s and thus to the traces of this location.
Bollinger+Grohmann gave expert advice in structural engineering.
28 April 2022
polis Award for MORINGAMORINGA in Hamburg's HafenCity won the polis Award 2022. It won gold as the best project development in the category Ecological Reality.
With MORINGA, Germany's first residential high-rise is being built in the Elbbrückenquartier in line with the cradle-to-cradle principle, directly on the water.
Image ©rendertaxi/Moringa GmbH by Landmarken
04 May 2022
Lecture: buildingSMART DeutschlandOn the 19th buildingSMART Users' Day, Tanja Gutena from Sprinkenhof GmbH, Fabian Matschinsky from HL-Technik Engineering GmbH and Alexander Hofbeck from Bollinger+Grohmann present the model-based process of MEP opening- and penetration coordination in their lecture. On the one hand, this involves illuminating the status quo in the form of process analysis and, in the second step, presenting the new model-based planning process. The speakers are representatives of the fields of architecture, structural engineering and MEP. They will focus on the integral way of thinking and the practical relevance.
April 28th 2022
protoCampo, our new adventure with Wald.CityProtoCampo is now starting to be installed in the garden of Académie de France à Rome - Villa Médicis following a year of co-design and construction with 44 professional students.
The Villa Médicis is located on the Pincio hill next to the famous Spanish Steps, in the heart of Rome. It will welcome, within its 8-hectare garden, this new 300 sqm timber pavilion.
protoCAMPO is an open architecture fully dismountable composed of an agora made of 17mx17m locally sourced timber and sustainable material, supplemented by a 6m height inflatable dome called the cupola.
Bollinger+Grohmann works together with the architects Wald.City and brings its expertise in structural engineering.
Photos : ©jeudi.wang
28 April 2022
Topping Out: KiTa AnwandewegThe topping-out ceremony for the Anwandeweg daycare centre in Aschaffenburg, Germany, took place today.
The two-storey building with 6 group rooms, an open refectory with a gallery and an administration area is L-shaped around a playground. The new building is a timber frame construction on a flat bedded floor slab. The arcade is presented as a steel construction.
Bollinger+Grohmann is responsible for structural engineering, fire protection and building physics.
7 April 2022
Competition "Ettinghausenplatz": 1st prizeWe are happy about the first prize in the Ettinghausenplatz competition in Frankfurt-Höchst, Germany, won by the architects Meixner Schlüter Wendt together with KuBuS Freiraumplanung and Bollinger+Grohmann.
The multi-layered design recreates the cubature of the synagogue, which was destroyed by the National Socialists in 1938, using a greened trellis and makes it possible to experience the unique history of the square.
Image: Meixner Schlüter Wendt
Completed: ImmergeStudio Chris Fox's latest artwork is called "Immerge" and was recently completed. The interpretation of the original water tank is located next to the Tramsheds in Forest Lodge, Sydney. "Immerge" resurrects a piece of history by using reused panels. Each panel weighs over 250 kg.
Bollinger+Grohmann was responsible for the structural engineering and specifications of the treatment and protection of the cast-iron panels.
Image: ©Studio Chris Fox
05 April 2022
Construction site: CARLGermany's tallest residential building to date is being built in a timber hybrid construction in Pforzheim. The residential tower will be constructed predominantly in timber with a reinforcing core as a steel structure. The core concreting work following the sliding method was realised within 11 days, and completion is scheduled for next Saturday.
The tower will be located at the edge of the Arlinger district, including a daycare centre and gastronomy in two five-storied neighbouring buildings in solid construction based on mutual underground parking.
The design is by Peter W. Schmidt Architekt BDA, and Bollinger+Grohmann joined the project team for structural engineering in the Design Development phase and is responsible throughout Construction Document Phase.
29 March 2022
DBZ: DESIGNING MORE SUSTAINABLYThe upcoming DBZ issue features an article by our colleagues Daniel Dieren, Diego Apellaniz and Christoph Gengnagel on digital life cycle analysis as an essential tool to optimise the life cycle assessment of projects in the early design phases. Using the example of the projects "UP!" (Jasper Architekten, Gewers Pudewill) and "VOLTARIUM" (hillig architekten, realace), they describe initial experiences, state of the art and its development potential.
Belsenpark II in Düsseldorf: 1st prizeTogether with the city of Düsseldorf, the Cologne-based project developer PANDION held an international competition for the high-rise building in Belsenpark II. We are pleased to announce that the design by UNStudio was chosen as the winner by the jury. The design includes a mixed-use high-rise with residential and office use and two other residential buildings.
Bollinger+Grohmann supported the team in terms of structural and façade engineering.
Image: UNStudio & Flying Architecture
Ostrava TowerOstrava Tower will become the tallest skyscraper in the Czech Republic measuring 235 metres designed by CHYBIK + KRISTOF and Anarchitekt, Jiří Soukup. Bollinger+Grohmann supported the design team during the study phase in terms of planning services for structural engineering, consultancy for façade engineering and building physics and we reviewed fire engineering and MEP/Building Services.
The design features an X-shaped structure and geometry that is concave in cross-section, it shifts on its axis and expands outwards. With its 56-storeys and 98,000 m², it will offer wide views over the city.
Image ©Chybik + Kristof Architects & Urban Designers
ArchDaily : The 15 Winners of the 2022 Building of the Year AwardsArchDaily has revealed the 15 winners of the 2022 Building of the Year Awards.
Into this selective list, the Villa M, located in Paris, has been awarded in the Healthcare Architecture category.
The building was completed in 2021 and aims to create a new pact between City, Nature and Health.
The program implemented into a dynamic Parisian area welcomes on the façade of this low-tech architecture, a vertical medicinal forest, fulfilled inside with a wide range of services such as hotel, restaurant, bar, conference area, check-up area.
This oasis was designed by Triptyque Architecture and enhanced on the artistic direction side by the famous designer Phillipe Starck.
BollingerGrohmann Paris has worked on façade engineering.
16 February 2022
DFG Symposium: Vision and Strategies for Reinforcing Additively Manufactured Concrete StructuresThe recording of the Deutsche Forschungsgemeinschaft (DFG) Symposium held in November 2021 is now online!
In the presentation "Optimizing Reinforcement: Structural Analysis, Challenges and Strategies", our colleague from Bollinger+Grohmann Vienna Adam Orlinski introduces us to the possibilities of 3D-concrete-printing with parametric modelling and the potential within this combination. The presentation was developed together with Klaas De Rycke and Moritz Heimrath as part of the symposium series "Vision and Strategies for Reinforcing Additively Manufactured Concrete Structures".
31 January 2022
FROM COOPERATION TO INTEGRATIONBollinger+Grohmann (B+G) and the engineering office Ingenieurbüro Greiner / IngenieuRinG (IB Greiner) join their forces.
Expertise, creativity and continuity as well as a lot of pleasure in project work are elementary components of our success. On this basis, B+G and IB Greiner have decided to integrate IB Greiner and its holdings into Bollinger+Grohmann Holding AG as of 1 January 2022 as part of a succession plan.
IB Greiner will operate as B+G Greiner GmbH in the future. The branches in Budapest and Omsk will continue to operate as IngenieuRinG Mérnökiroda Kft. and OOO GF Consulting.
1st prize for Sohnstraße 45 in DüsseldorfCongratulations to HPP Architekten and the whole planning team on winning the first prize. Bollinger+Grohmann Düsseldorf supported the team in terms of structural engineering.
The competition entry stands for a sustainable, resilient, mixed-use neighbourhood that allows for functions such as office, residential, commercial, cultural, daycare and care.
18 November 2021, 7 pm
Book talk: INLEGNO. Cambiare prospettiva per costruire il futuroThe volume is the result of the research carried out by close cooperation between the architects from Park Associati and Bollinger+Grohmann on the wide potential of wood as a sustainable resource in present and future architecture.
Join tomorrow's book talk in the course of the Bookcity Milano 2021 at 7 pm at Park Hub via Garofalo 31 or join digitally. See link below.
The book will be released on 24 November 2021.
12 November 2021
Won: Structural Awards 2021We are thrilled to announce that the domes of Taiyuan Botanical Garden were selected winner of the Structural Awards 2021 in the category ‘Structural Artistry’!
The three timber gridshells are made out of overlapping beams braced with post-tensioned cables. Bollinger+Grohmann was responsible for the development of the structural concept design.
Kudos to our colleagues at StructureCraft for the further development and fantastic realisation of the structure and thanks to Delugan Meissl Associated Architects and the rest of the planning team for the outstanding cooperation.
11 November 2021
Digitaltour: ESO-SupernovaAlexander Hofbeck (B+G Munich) and Moritz Heimrath (B+G Vienna) will hold an online lecture on ESO Supernova. The observatory in the north of Munich was designed by Bernhardt+Partner Architekten and realised in close collaboration with Bollinger+Grohmann across three branches. The structural engineering and its parametric workflow will be the focus of this presentation from the beginning of the project until the end.
The lecture will take place on the 11th of November at 6 pm
In order to join this event, register through the link below.
October 29th, 2021

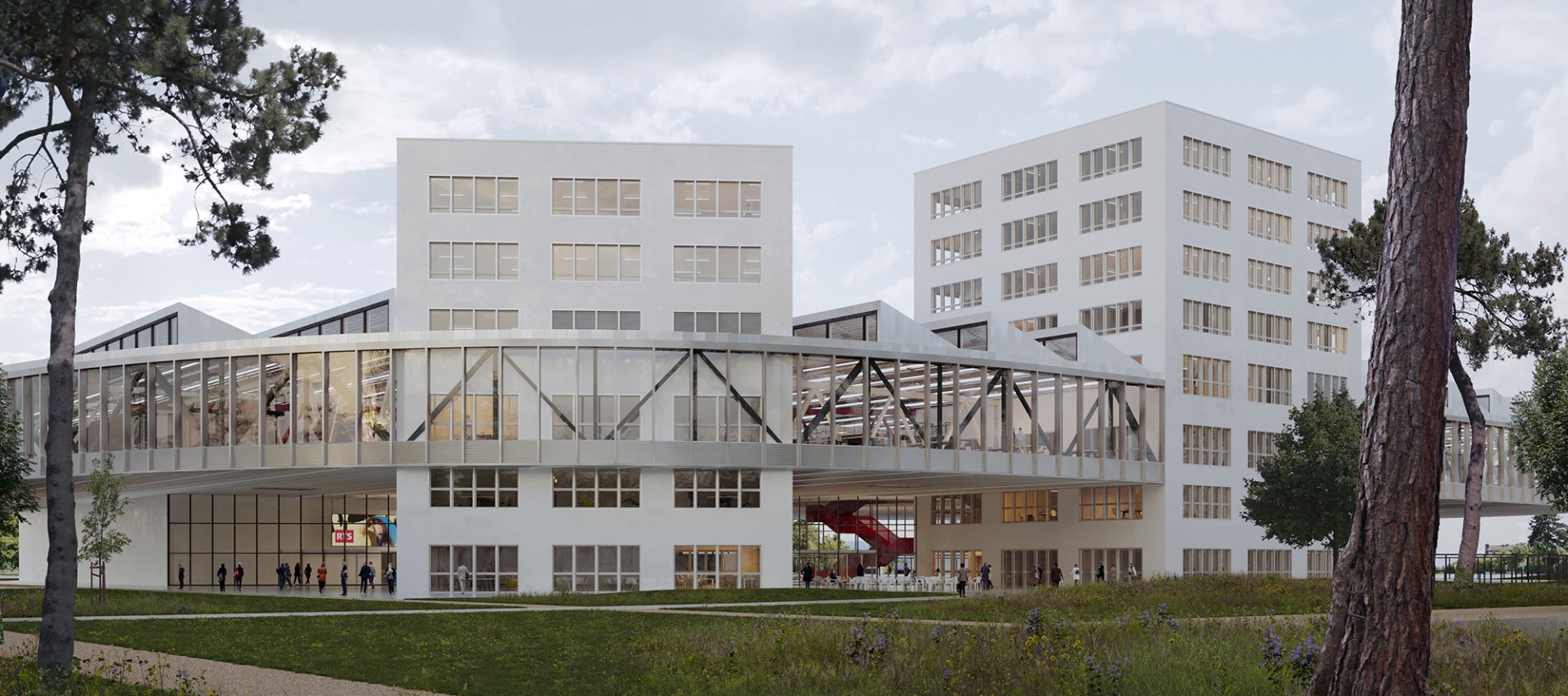

Radio Television Suisse : On a site of excellenceThe construction of the new production centre of Radio Télévision Suisse (RTS) in Lausanne is underway. It is located in a prestigious economic area.
