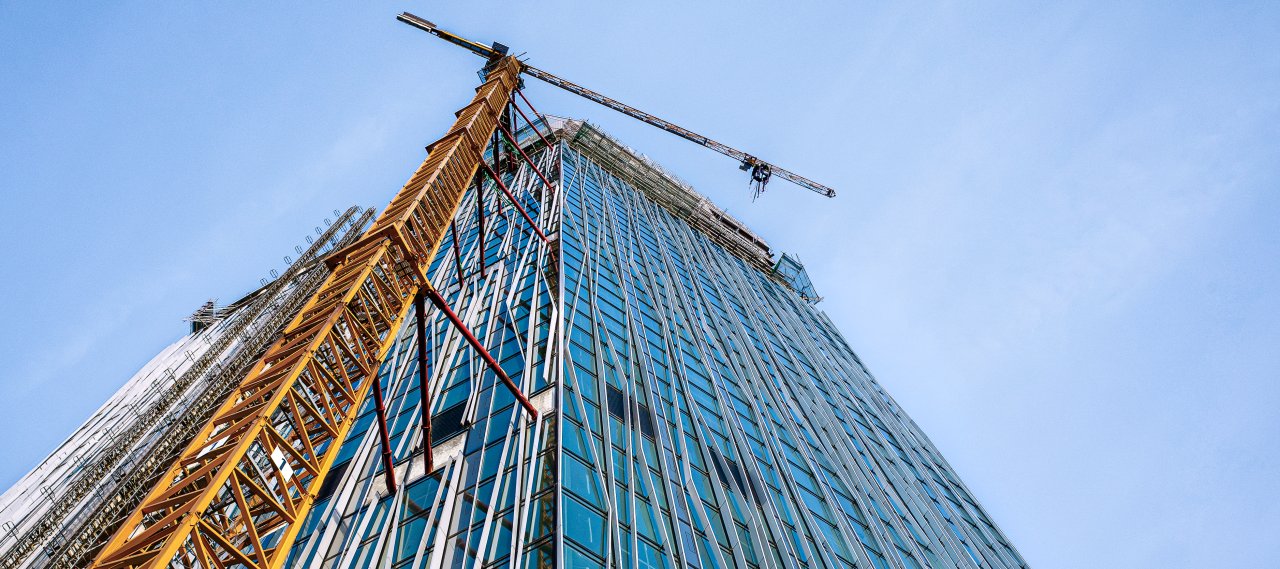

Located at the edge of Berlin’s suburb Neukölln, the 175 m tall Tower will become the new landmark and the tallest high-rise of the city. Completion is scheduled for 2024.
The design comes from the architectural firm Barkow Leibinger and Bollinger+Grohmann Berlin is in charge of structural and façade engineering as well as building physics.
The proposed gravity structure for the hotel tower comprises a flat slab system supported by concrete columns and core walls. The columns shall be arranged to allow a flexible and efficient floor space and a continuous and direct load transfer. The foundation for the high-rise tower shall be a combined pile raft foundation (CPRF).
The multiple use tower podium is designed as a conventional reinforced concrete structure. The atrium roof structure will be constructed of steel beams and girders covered by point supported glass panels.
The total area of the various façades sums up to approx. 42,000 m². The concept is to develop a system of façades that react to the differing needs of these buildings but still creating a family of façades in a corresponding architectural language. The highly glazed façades will meet high energy standards while creating spectacular views for the guests. A series of external fins providing additional external sun shading creates an additional layer of texture to the façade, giving it its unique appearance.
Sound protection plays a key role in the design phase due to a motorway to be built in the vicinity of the complex.
Barkow Leibinger Architekten
Start of planning: 2019
Start of construction: 2021
GFA: approx. 54,000 m² | Height: approx. 176 m | Façade surface: approx. 42,000 m²Service:
Structural engineering, Façade engineering, Building physics
