Leeza SOHO

en | de | hu
City, Country Beijing, China
Year 2015–2019
Client SOHO China
Architect Zaha Hadid Architects
Services Structural Engineering
During competition phase
Facts GFA: 172,800 m² | Height: 207 m | Height (Atrium): 190 m | Level: 46 | Competition: 2013, 1st prize
Awards Internationaler Hochhauspreis 2020, Finalist | Emporis Skyscraper Award 2020, 2nd place

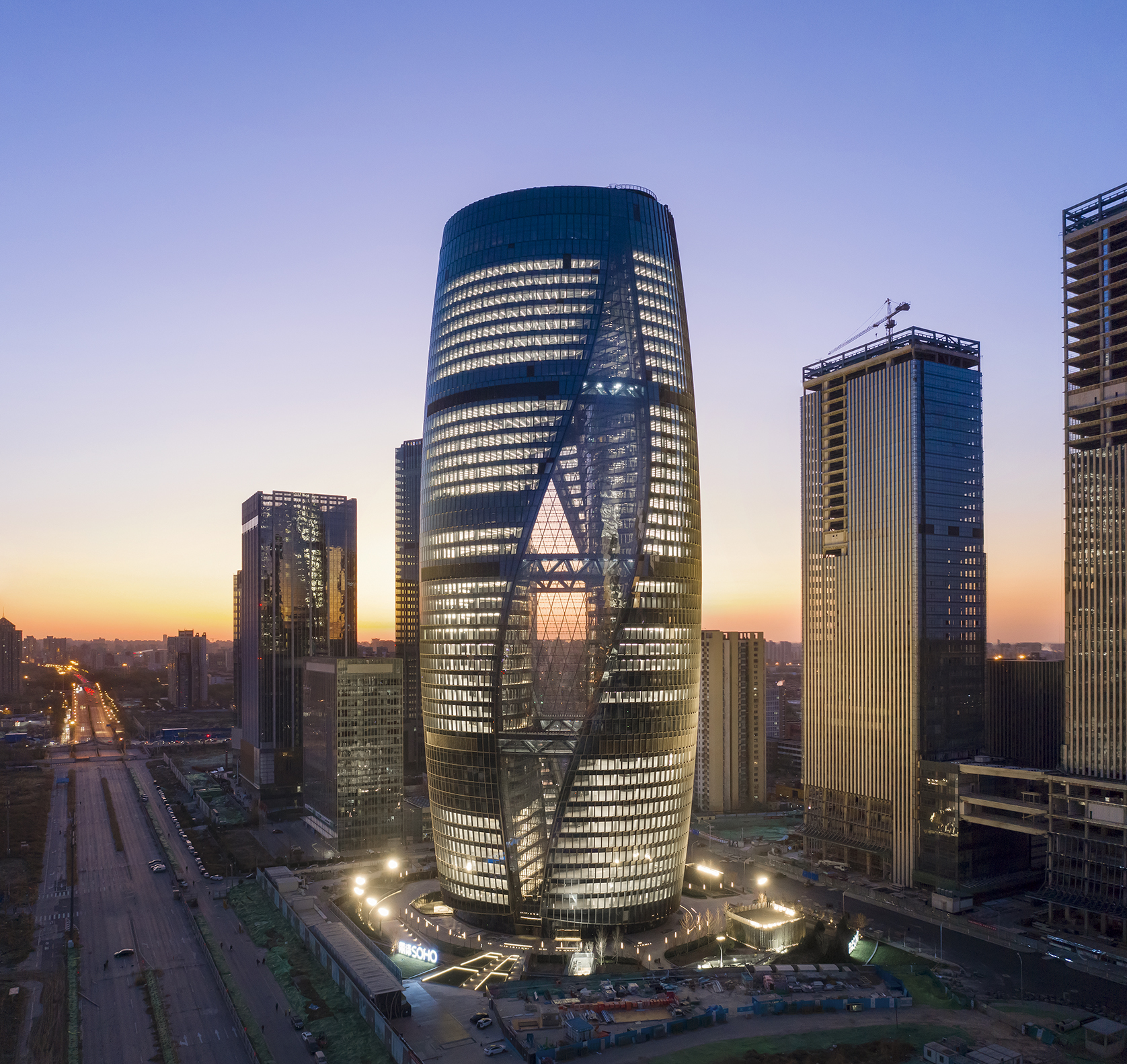

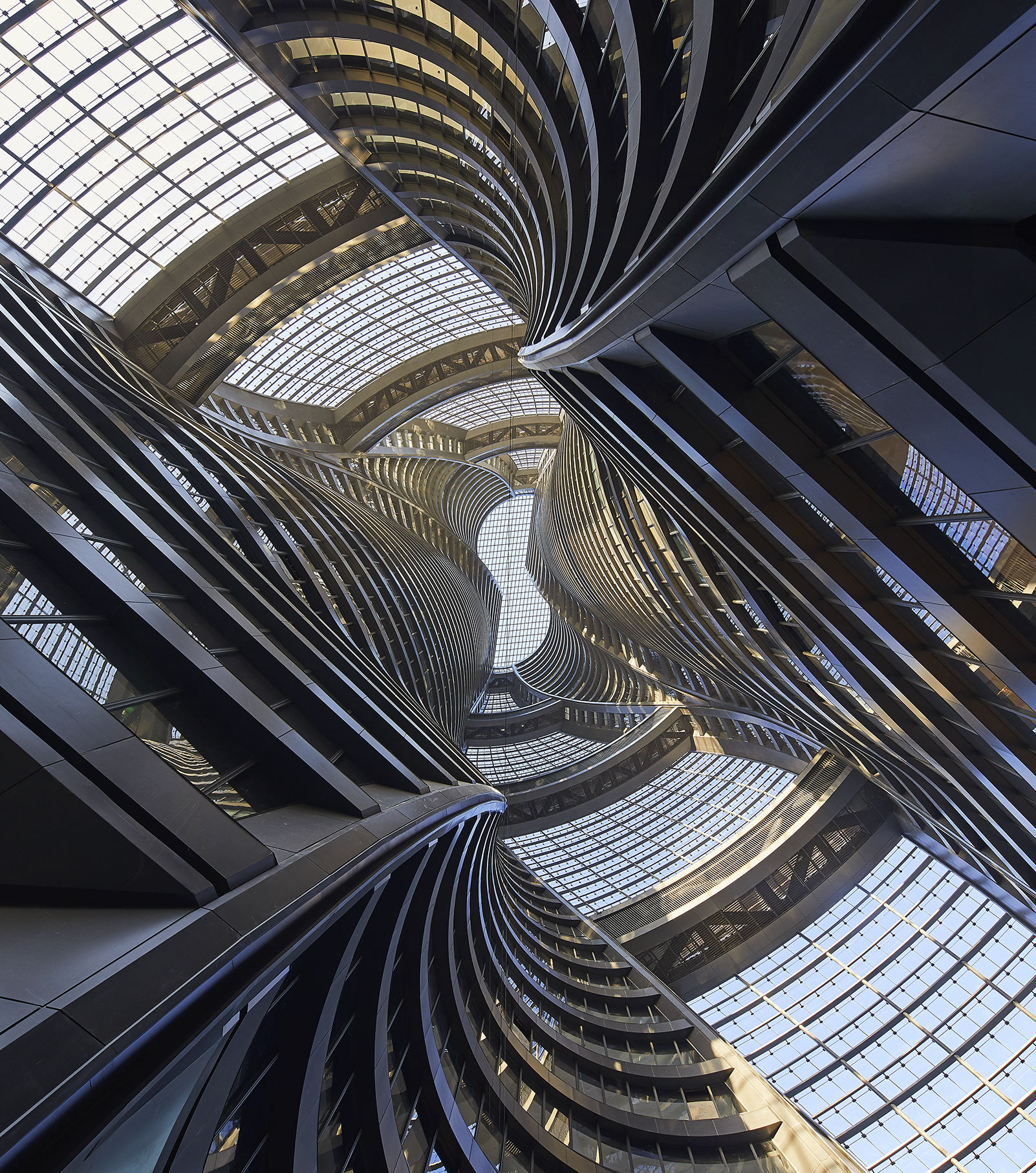

Within the Lize Financial Business District – a new business, residential and transport hub adjacent to Financial Road in southwest Beijing – Leeza Soho is located at the intersection of Lines 14 and 16 currently under-construction for the Beijing Subway rail network. Anchoring the new financial district, the 172,800 m² Leeza Soho design has evolved from its specific site conditions. Straddling the new subway tunnel that diagonally divides the site, the tower rises as a single volume divided into two halves on either side of the tunnel. A central atrium extends 190m through the full height of the building connecting both halves.

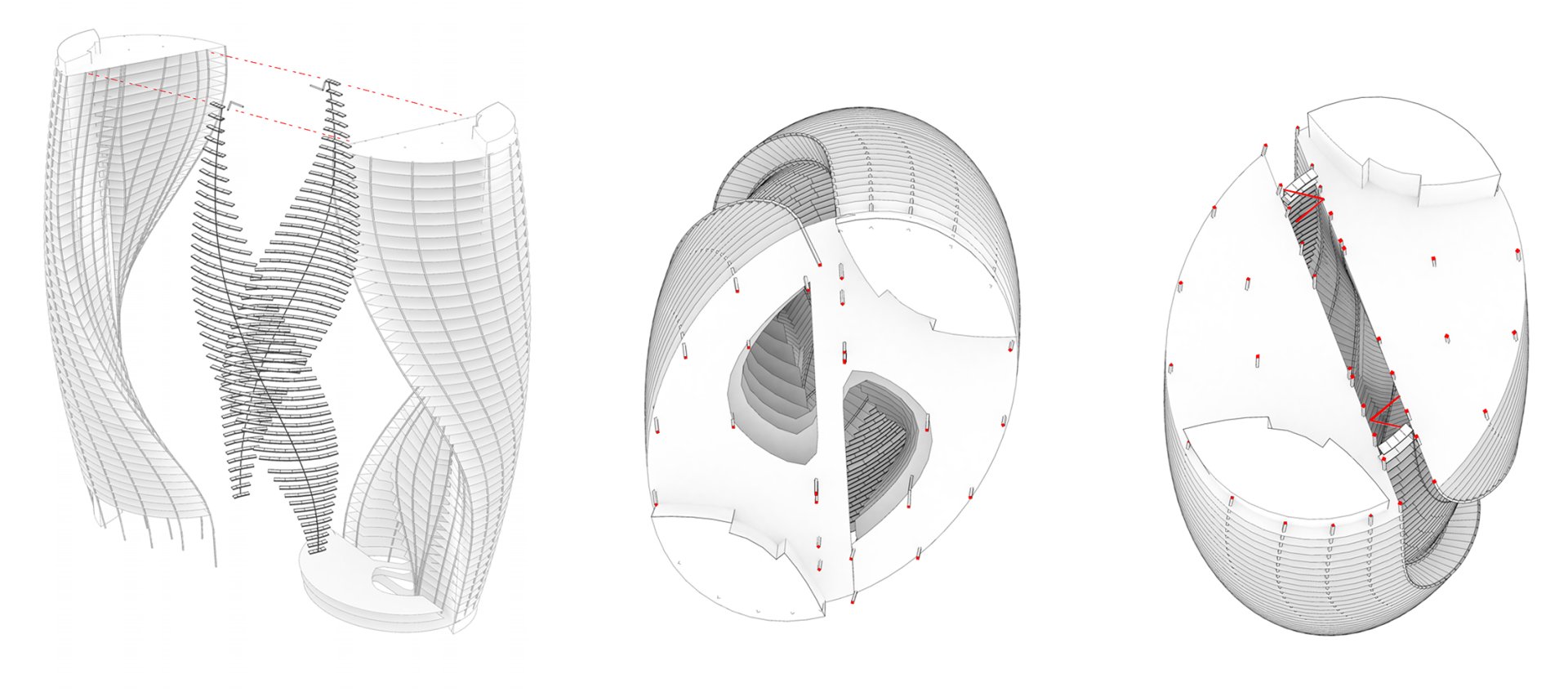

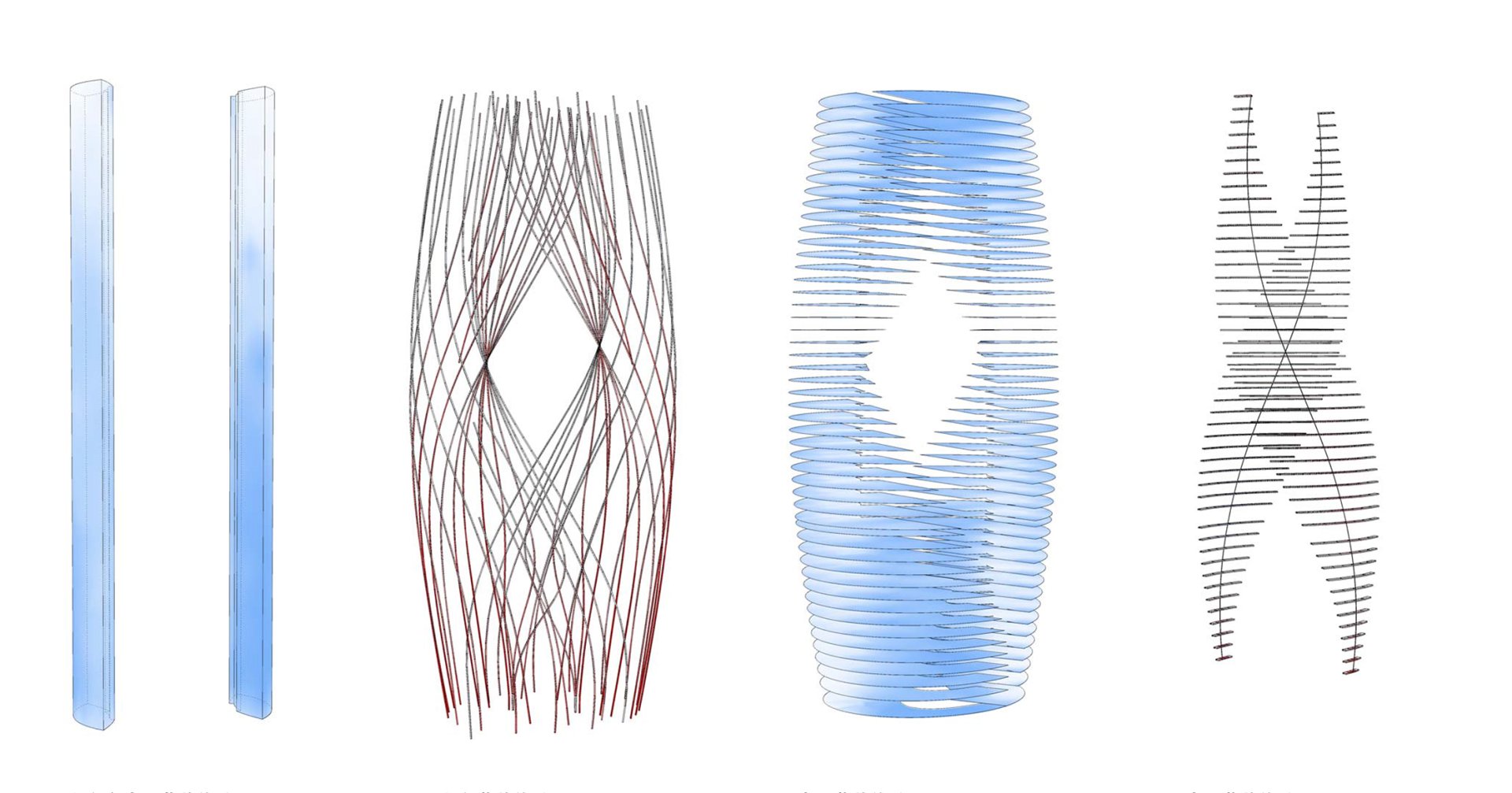

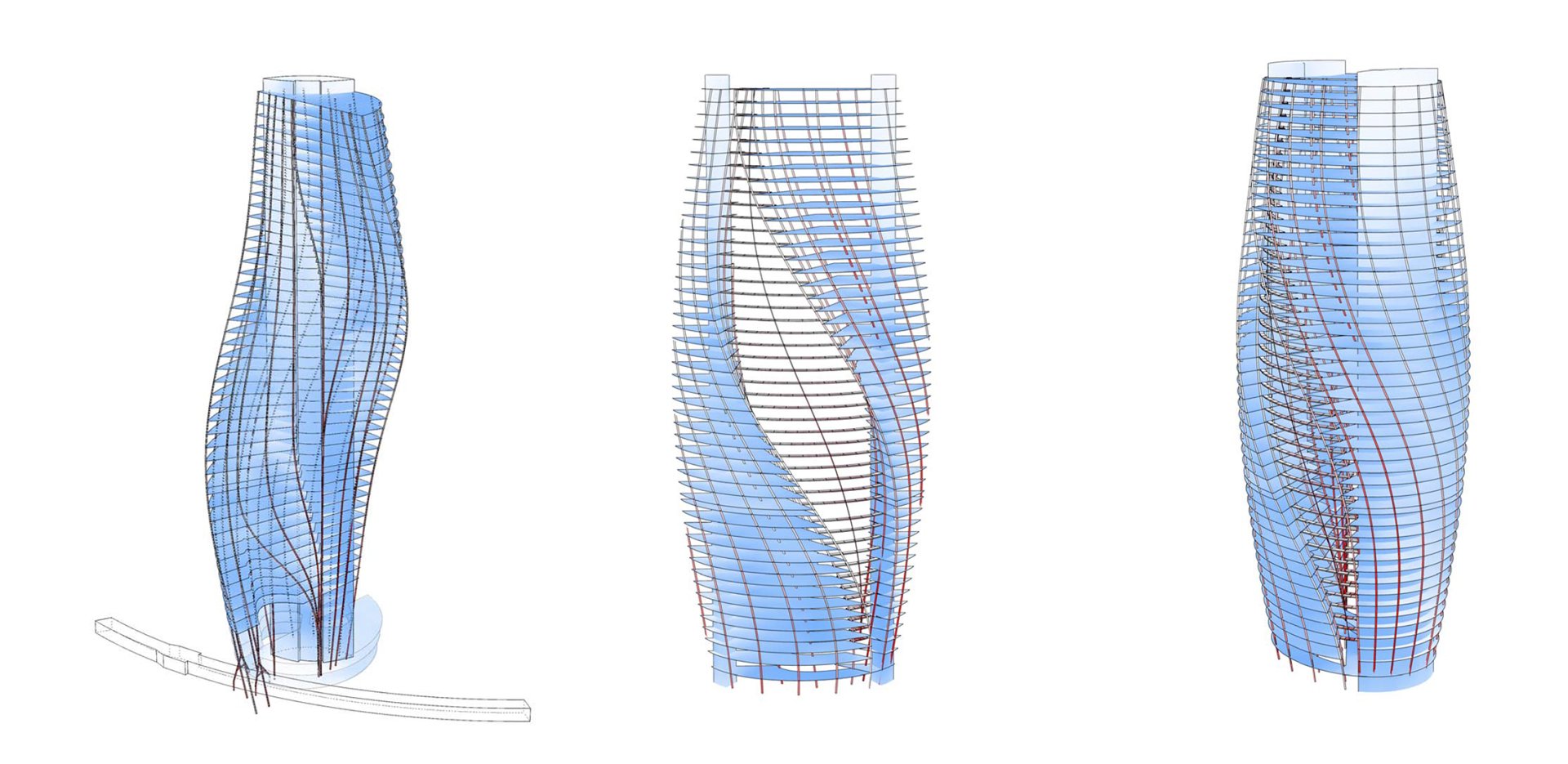

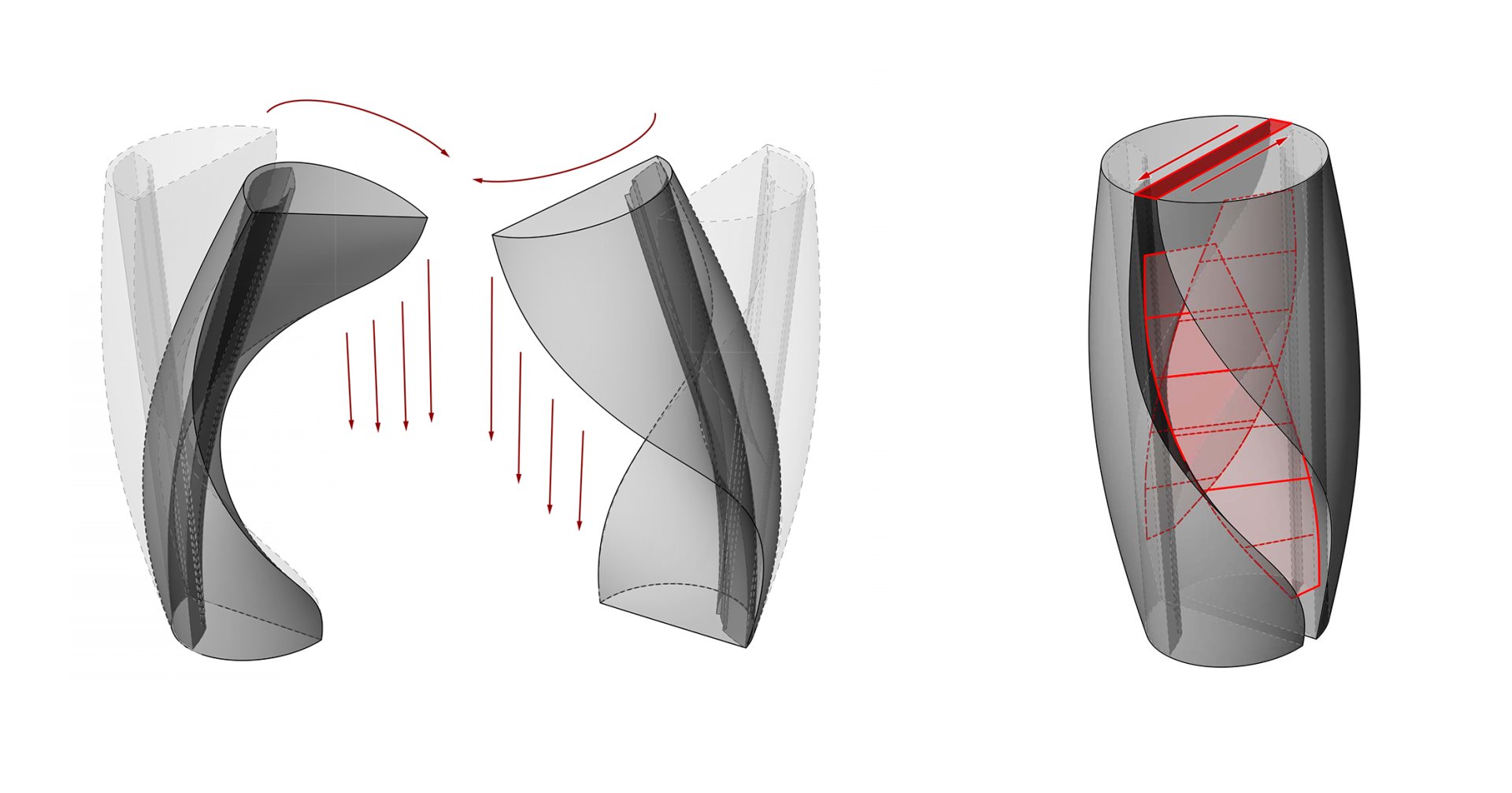

On its own, each of the two towers would twist and bend due to its cantilevers and asymmetric shape. The high-rise building consists of two overhanging parts, leaning against each other and building a symbiotic whole. The vertical loads are transferred by inclined columns related to the buildings overall shape and the walls of the two concrete cores. To allow the wide span and to save weight and costs, slabs are proposed as reinforced concrete composite slabs. Trapezoidal sheets are carried by steel beams and establish the formwork for the reinforced concrete. The overall form causes horizontal loads, these loads are carried through the slabs into the concrete walls of the cores. Horizontal loads are carried through the concrete cores into the ground. The vertical forces of the tower are carried via piles into the ground. The piles cause a minimized impact to the existing metro tunnel, as they embed below the tunnel into the ground.
