© querkraft architekten/miss 3

MON company building

en | de | no | hu
City, Country Karlsruhe, Germany
Year since 2016
Client Montana Tech Components
Architect querkraft architekten ZT GmbH
Services Structural engineering
Facts GFA: 5,000 m²

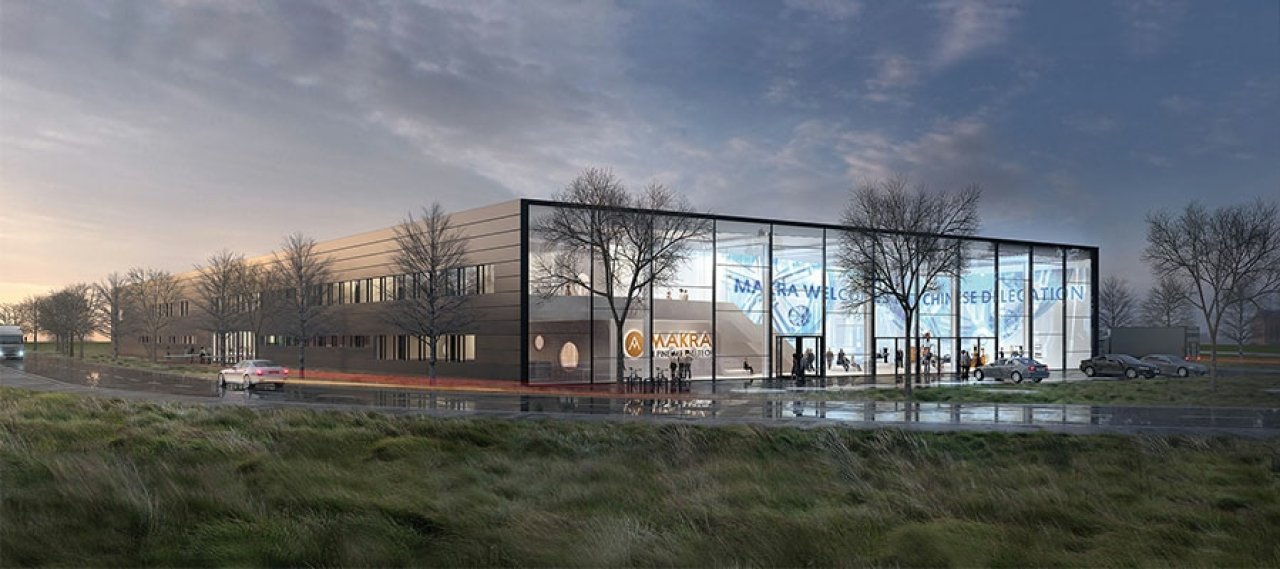

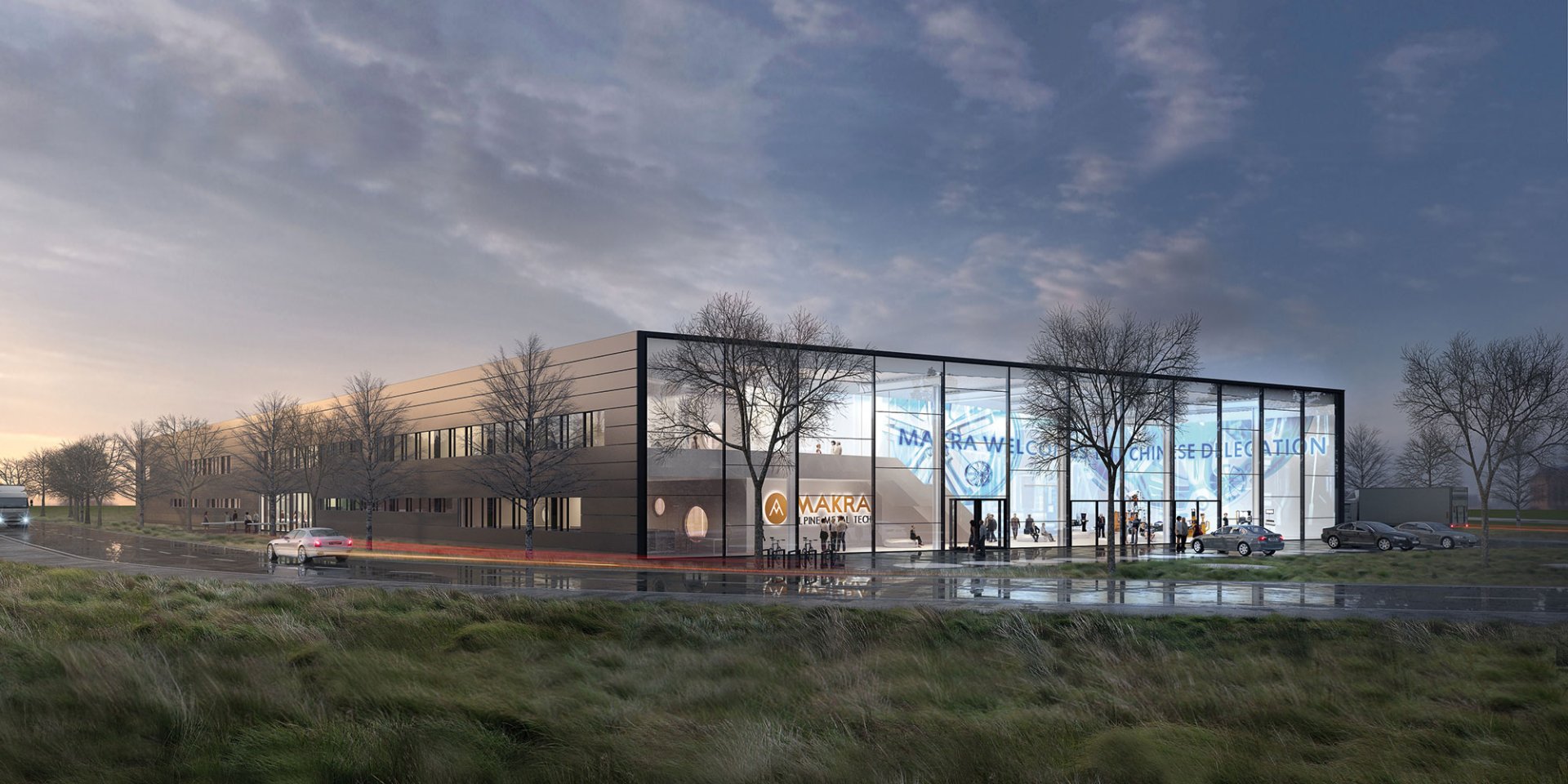

The new corporate design for the headquarter for Makra Alpine Metal Tech combines office and production spaces in a 100x48m building. The main characteristic is the large glazed entrance which acts as a display window, while the remaining areas are planned in a more efficient industrial building construction with a simple yet elegant metal façade.

The main structure of the hall is planned as a prefabricated reinforced concrete framework. Across the hall span two main beams which together form a Gerber beam system and cantilever up to 6m above the office areas. The beams are supported by a column grid with dimensions of 6.7 m. The structure of the entrance area and the presentation room is planned as a steel construction.
