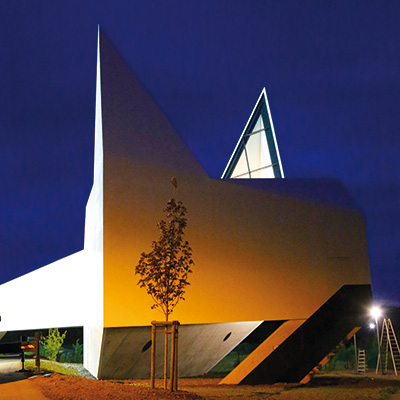

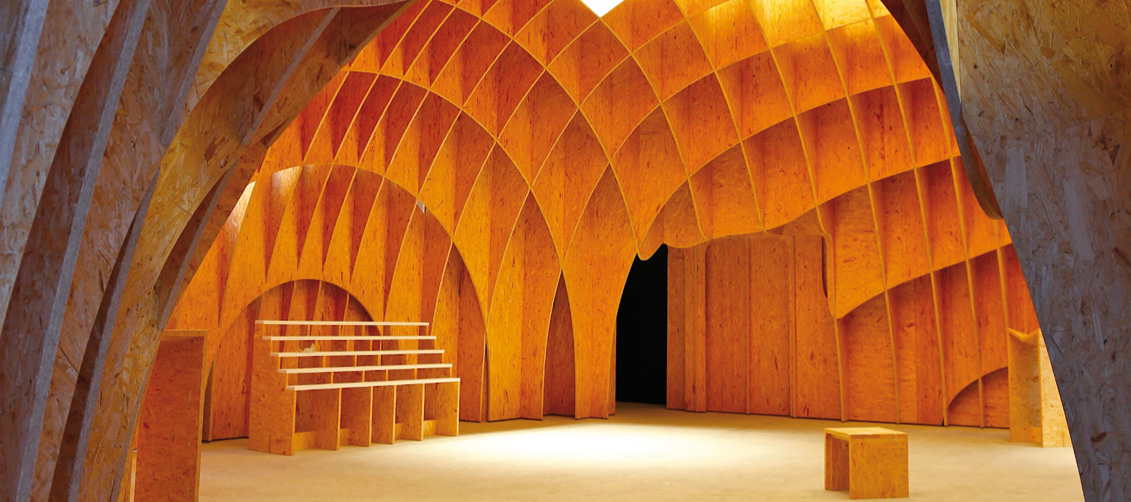

The ecumenical motorway church in Siegerland, Germany, consists of the church itself and an access bridge. The design is characterised by its abstract external shape and a spacious interior, which is derived from a spherical volume. Through specifically modeled shafts the daylight is indirectly channeled into the church and thus supports the room’s mystical character.
The substructure is a mezzanine level which houses the mechanical equipment and whose sloping walls taper towards the foundation. The upper level of the church is a lightweight timber structure, whereas the substructure and foundation consists of reinforced concrete. The access bridge, also a timber structure, is spanning between the church structure on one side and a conventional bridge abutment on the opposite side.

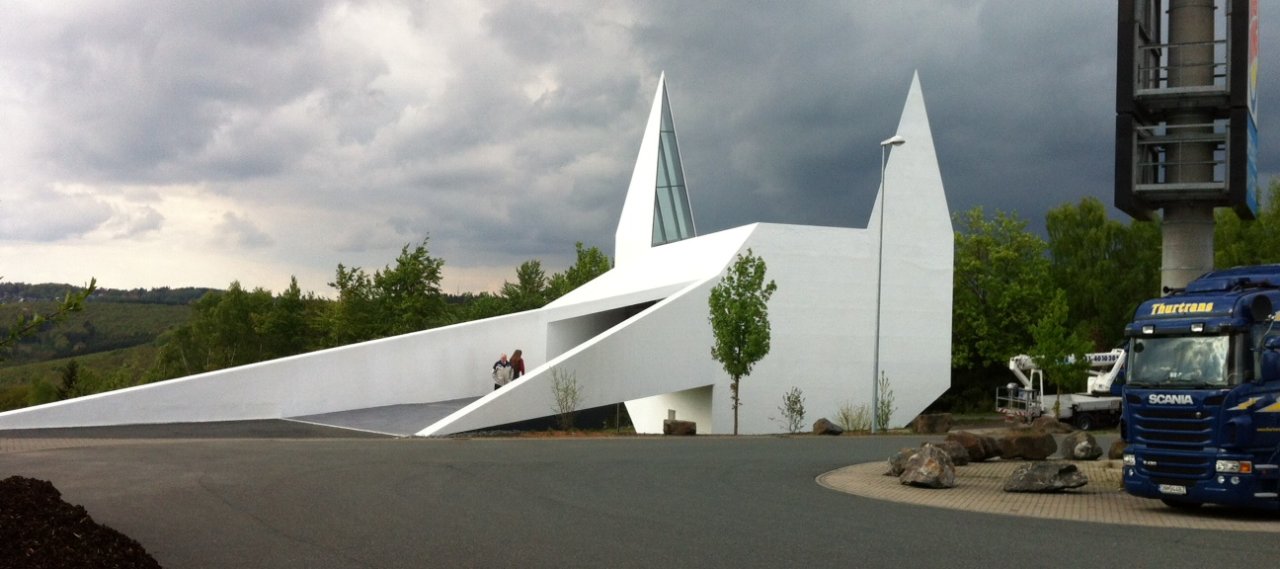

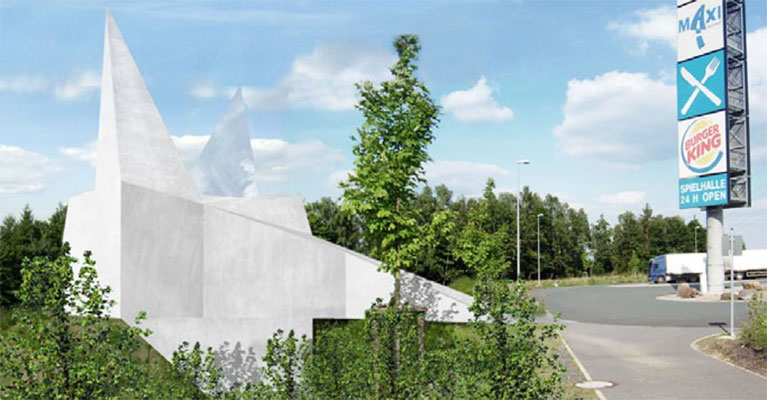

The motorway church Siegerland is just 70 m away from the A45 motorway. The timber frame construction posed a particular challenge for the sound insulation at the given distance to the motorway. The transparent openings in the church were positioned in an optimal way by means of a light study and thus support the striking architecture. The acoustics, dominated by the inner dome (sphere), ensure the spatial feel of a church, overshadowing the size of the space.
Autobahnkirche Siegerland e.V.
Gross volume: 2,050 m³ | Total area: approx. 240 m²Service:
Structural engineering, Building physics
DAM Preis für Architektur in Deutschland 2013, Award
ICONIC AWARDS 2013, Category: Best of Best Architecture
Autobahnkirche in Wilnsdorf, in: DETAIL, 2014, 1/2, S. 53
Wo Beten noch helfen soll, in: FAZ, Frankfurter allgemeine Zeitung, 14.08.2013, S. 27
Gott muss Fernfahrer sein, in: MODULOR, 07/2013, S. 50 - 58
Berührende Rast, in: AIT, 06/2013
