Glass Roof at Goetheplatz

en | de | fr
City, Country Frankfurt, Germany
Year 2012–2014
Client FGP Sàrl
Architect Christoph Mäckler Architekten
Services Structural Engineering

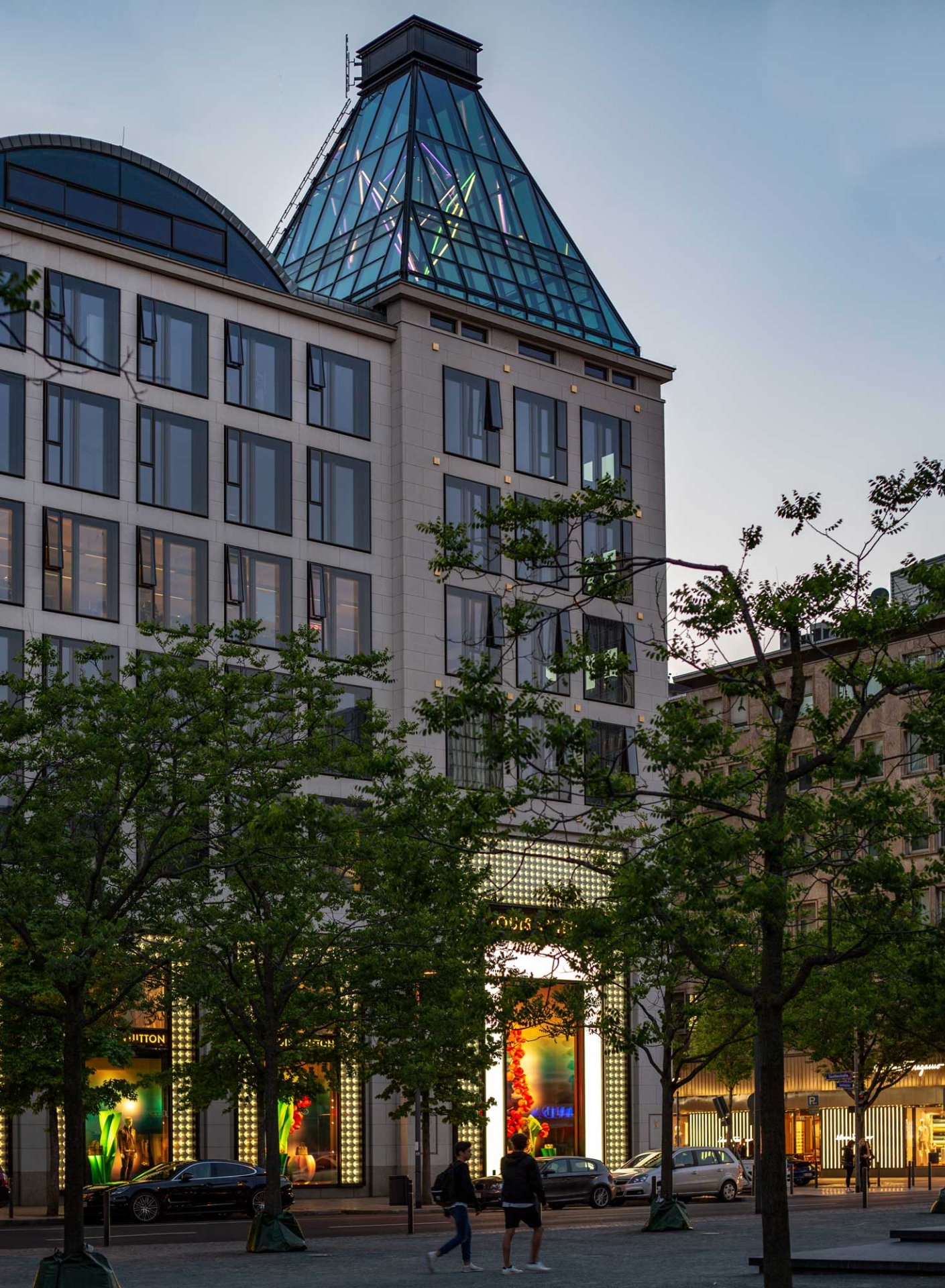

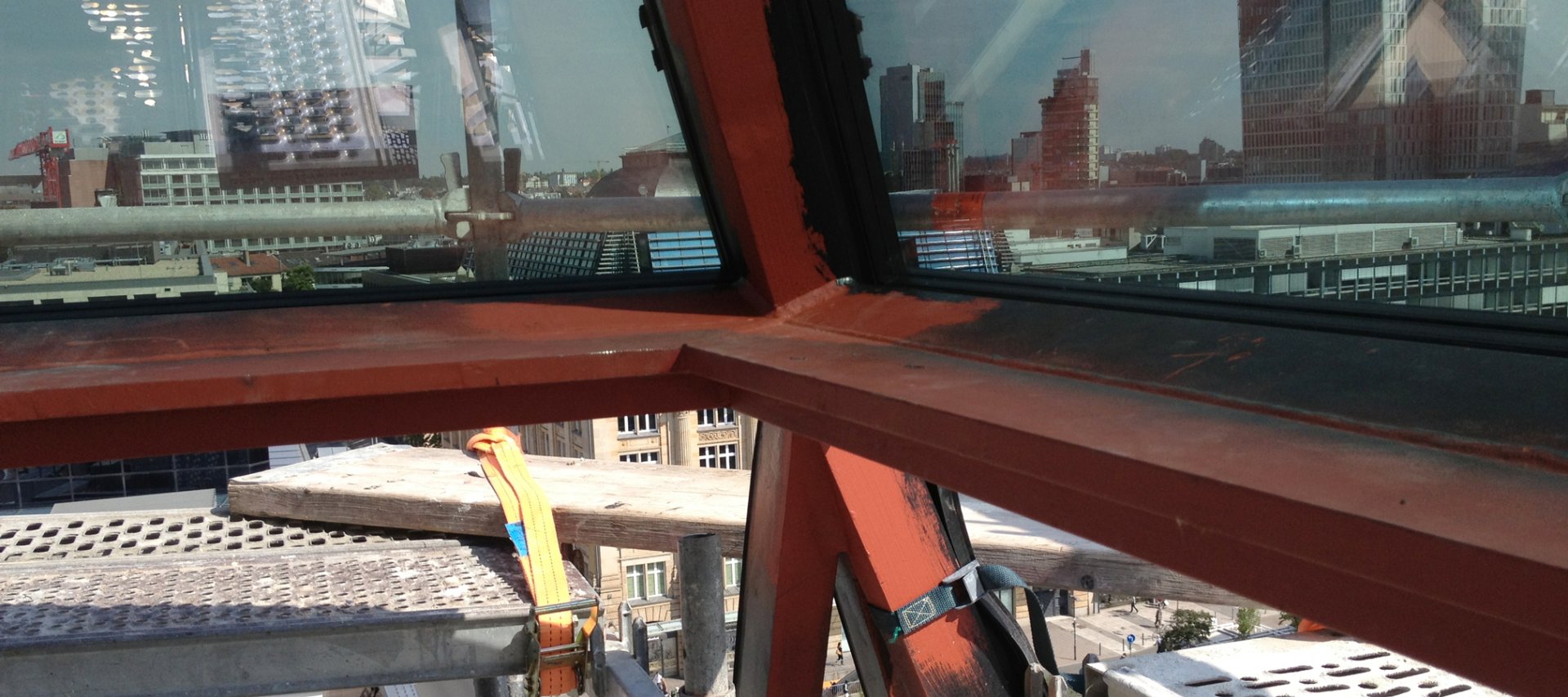

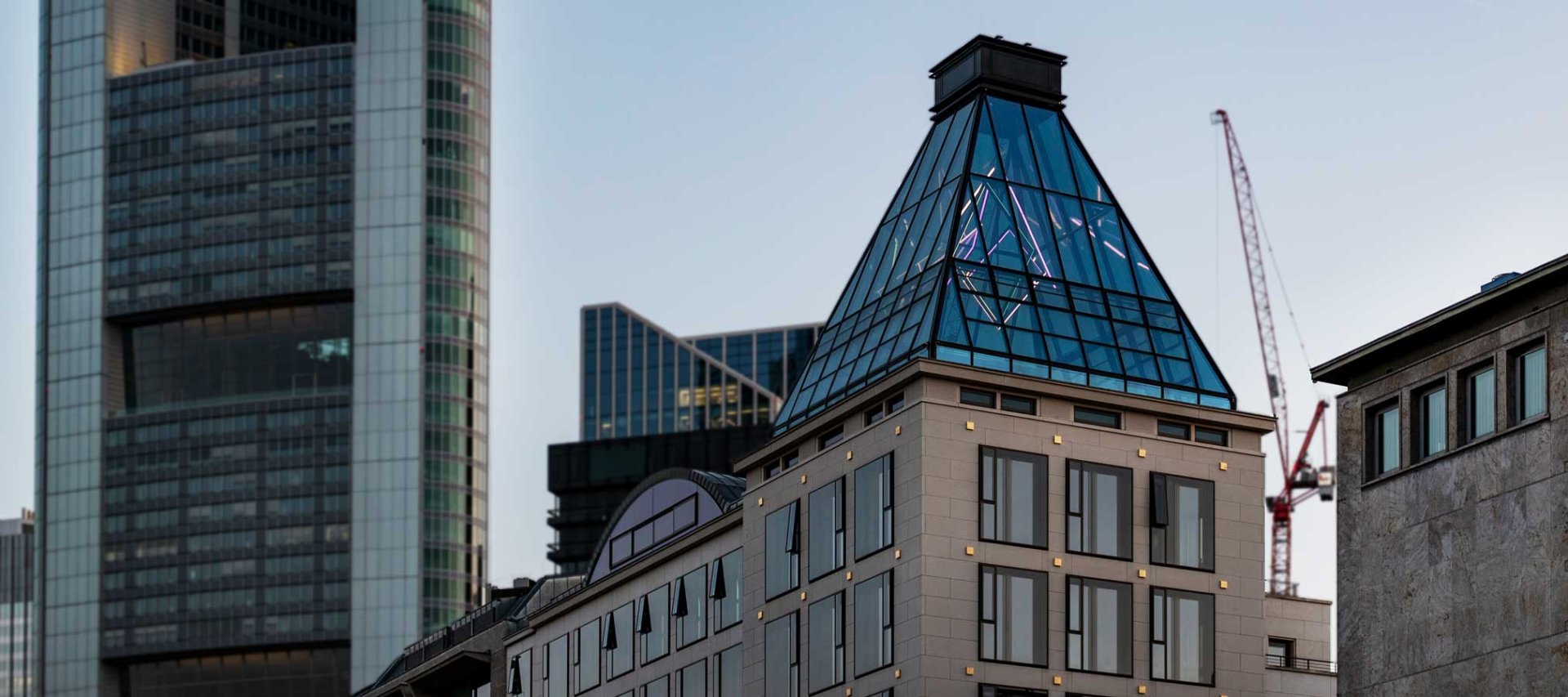

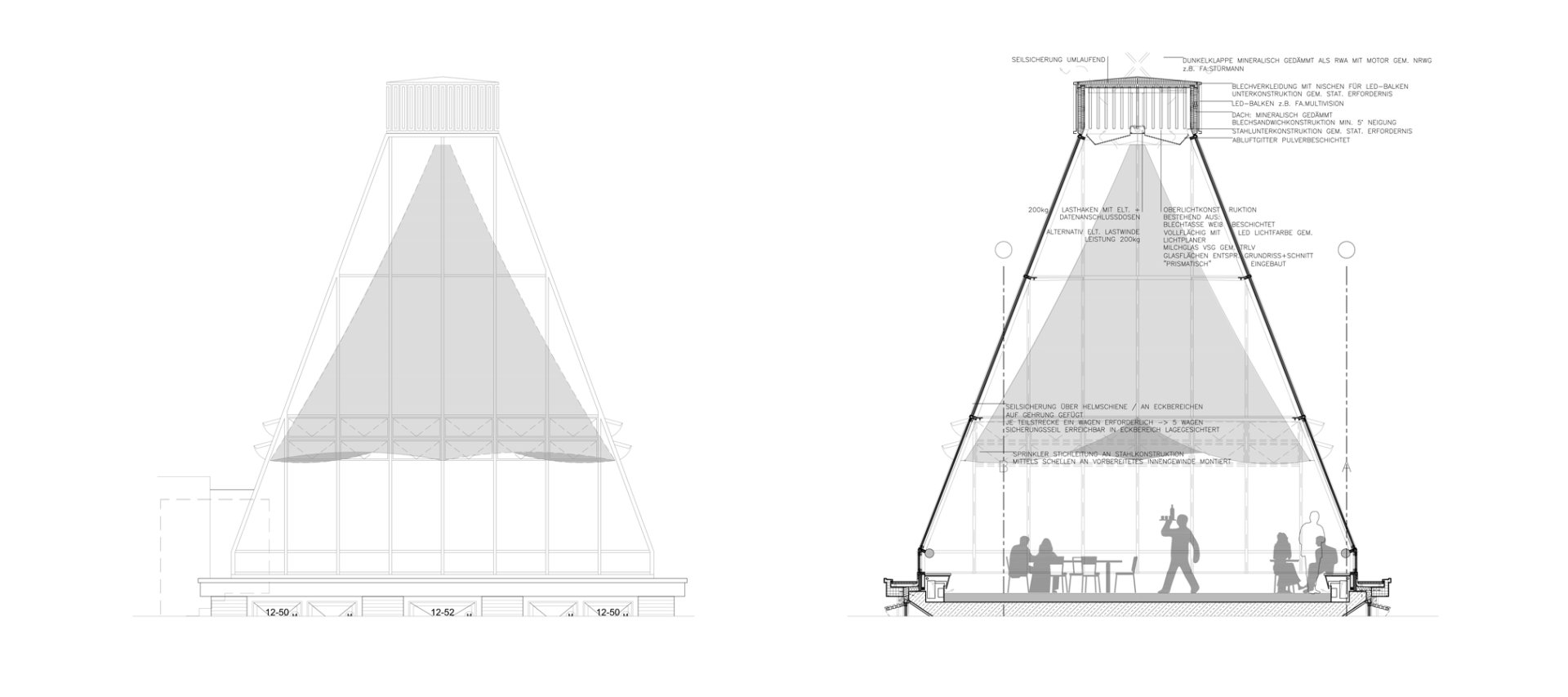

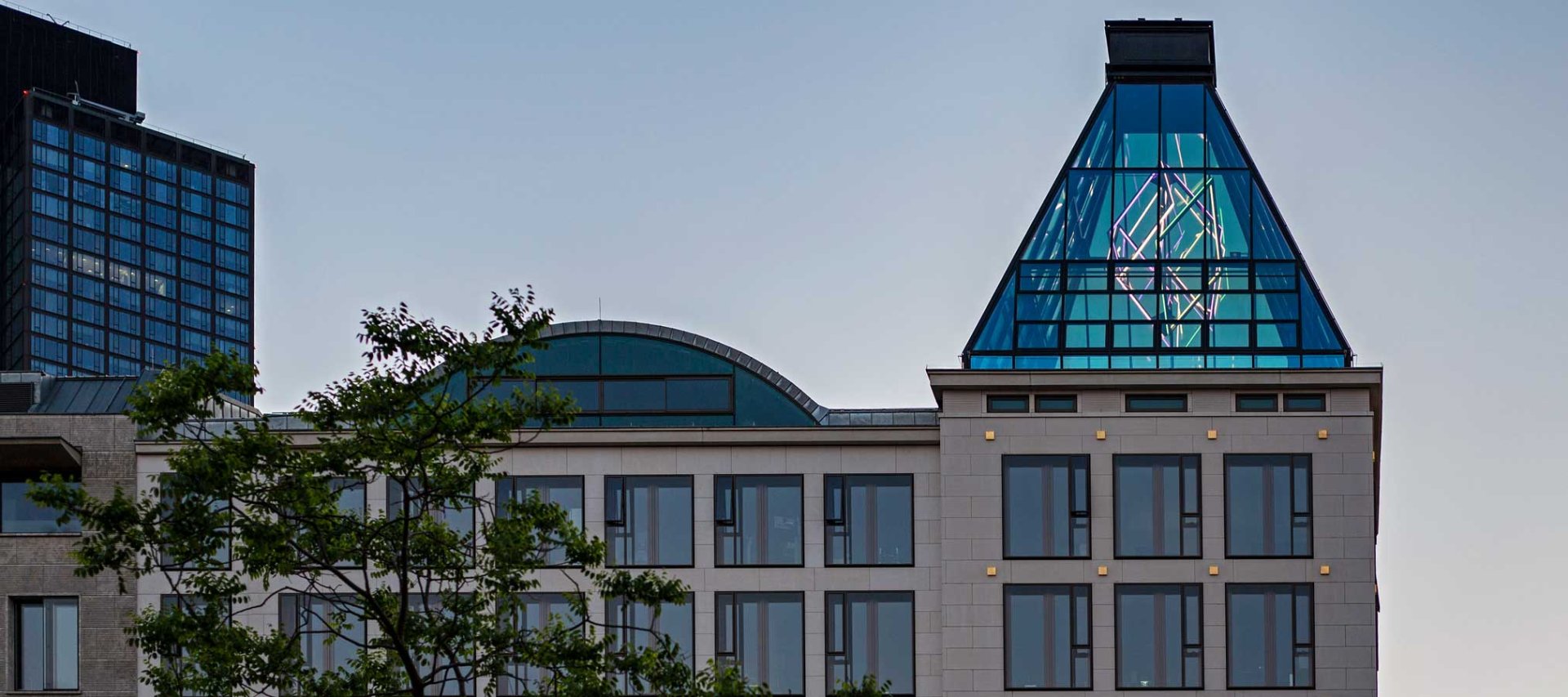

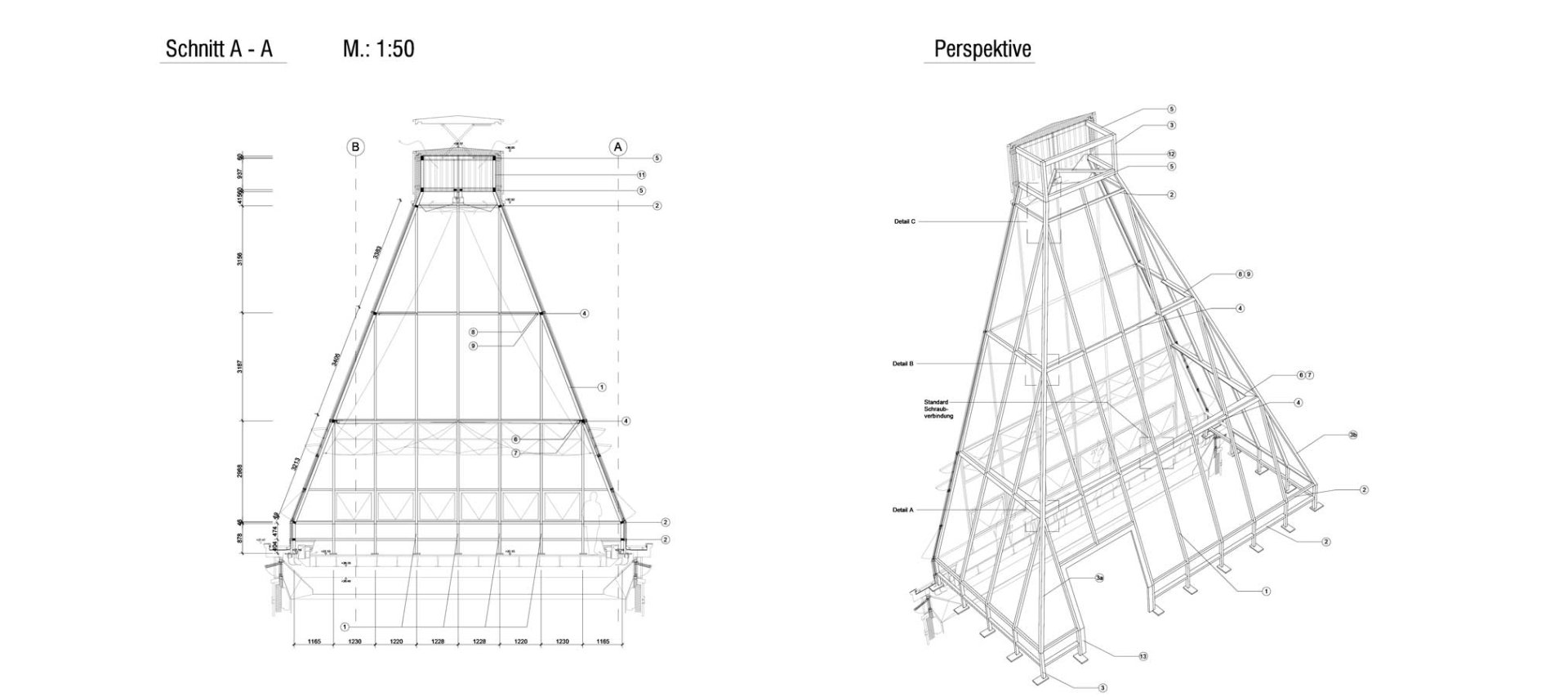

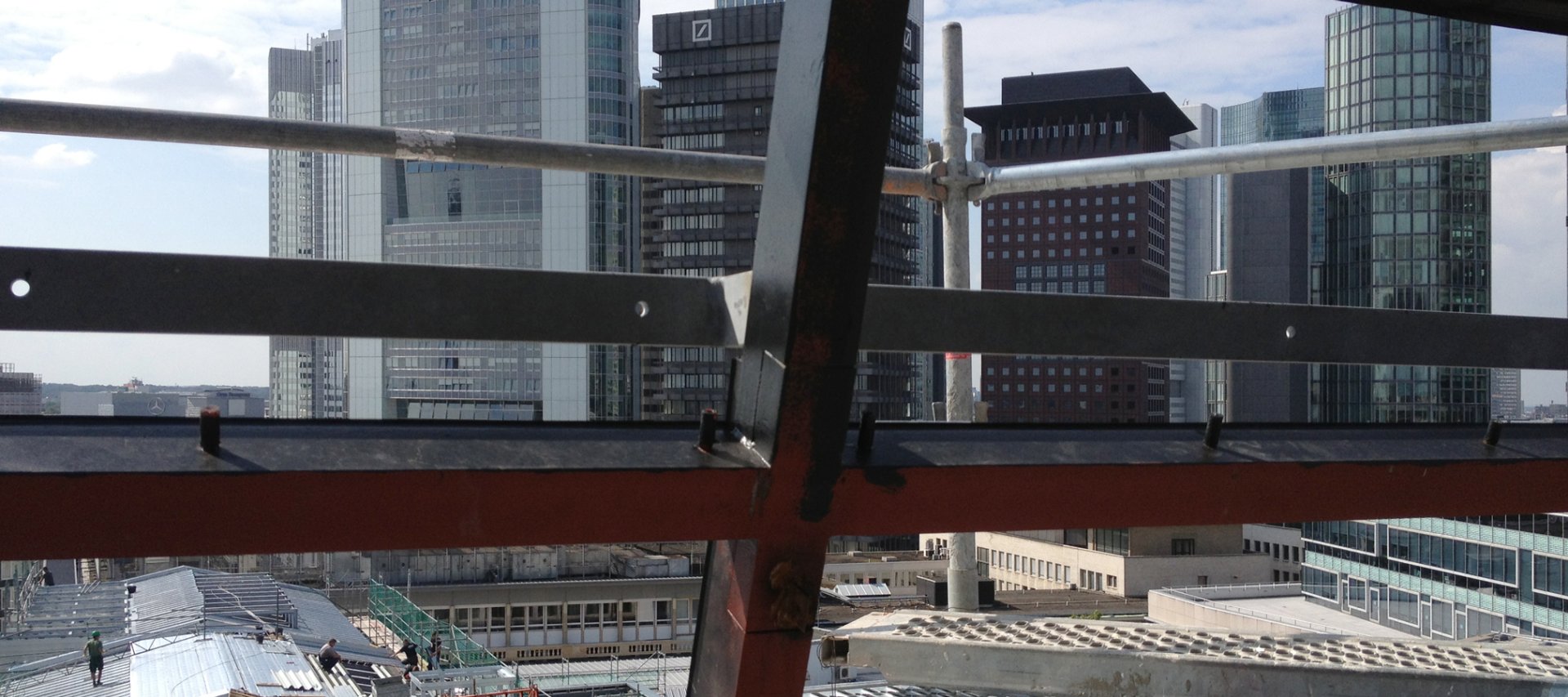

The construction project is the roof of the corner tower of a building at Goetheplatz in Frankfurt am Main. It is designed as a glass roof with a steel substructure. The truncated pyramid-shaped cubature has a base area of 9.63 x 9.23 m and a height of 9.3 m. The flexural rigid compression rings and the four corners support to form a Vierendeel system.

Steel
Glass
