| City, Country | Neckarweihingen, Germany | |
| Year | 2012–2015 | |
| Client | City of Ludwigsburg, Germany | |
| Architect | ars herrmann + hornung | |
| Services | Object Planning Structural Engineering Services provided by the Stuttgart branch (formerly EFA Ingenieure) |
|
| Facts | ||
La passerella ciclopedonale alla periferia di Neckarweihingen è un ponte strallato con pilone laterale e disposizione unilaterale degli stralli. La curvatura in pianta consente la sospensione su un solo lato della struttura in acciaio, particolarmente leggera e slanciata.

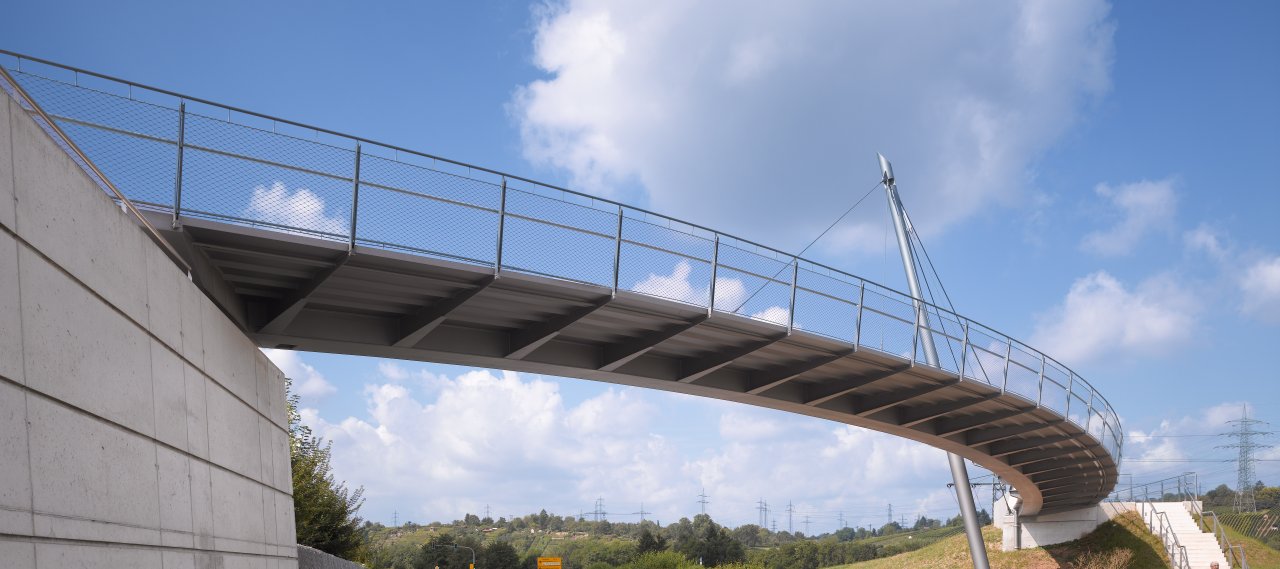

The structure is characterised by its double-curved geometry and filigree steel construction. It is a cable-stayed bridge with a pylon on one side and a suspension on the other side. The bridge deck is curved in plan and measures around 40 m long and 3 m wide. It consists of a box girder with radial ribs and a cover plate with narrow longitudinal ribs, which, covered with a thin-film coating, directly forms the traffic surface. The guardrail with stainless steel net and handrails on both sides is finished with a tube at a height of 1.30 m for fall protection.
