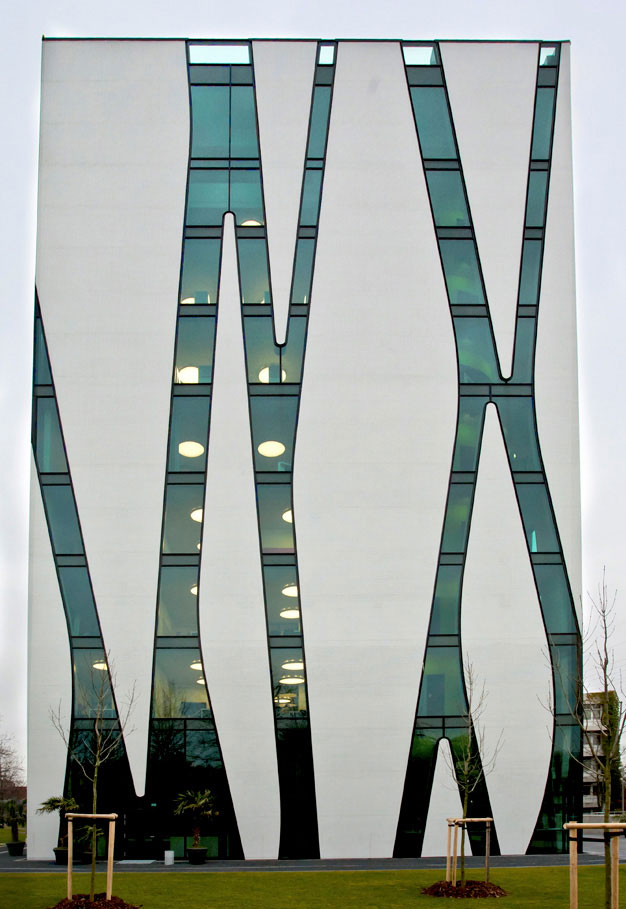

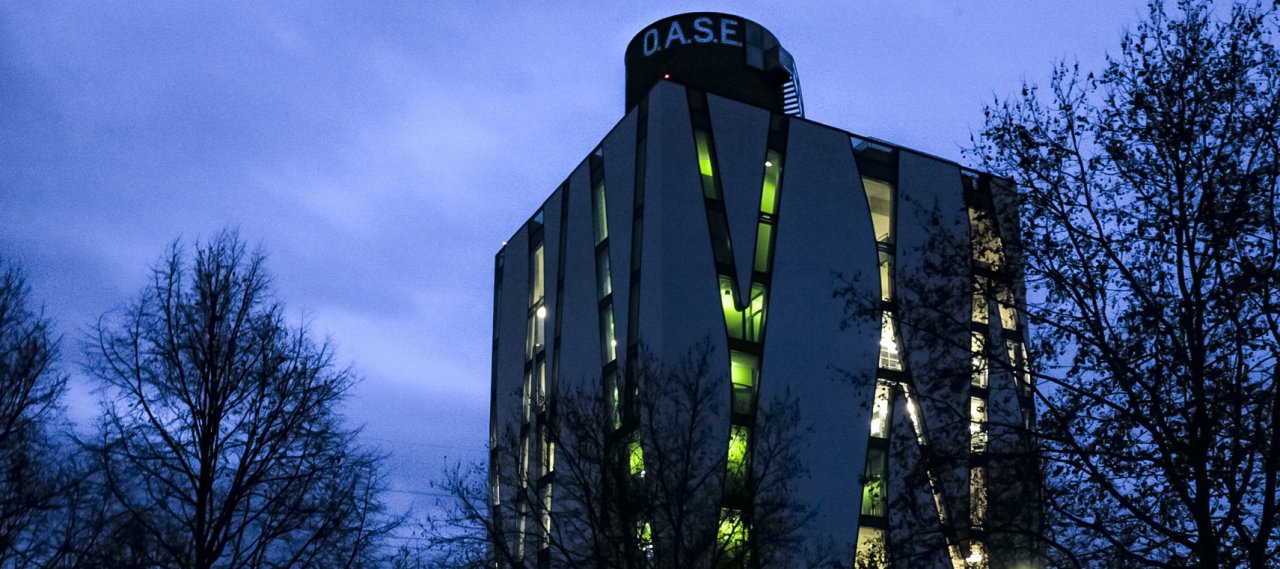

"OASE" - a new learning and communications centre creates the urban development link between the University Hospital Düsseldorf and the adjacent university campus. The building was inaugurated in November 2011. It has a square shaped footprint with a length of 22.30 m and reaches a maximum height of approximately 45 m above ground.

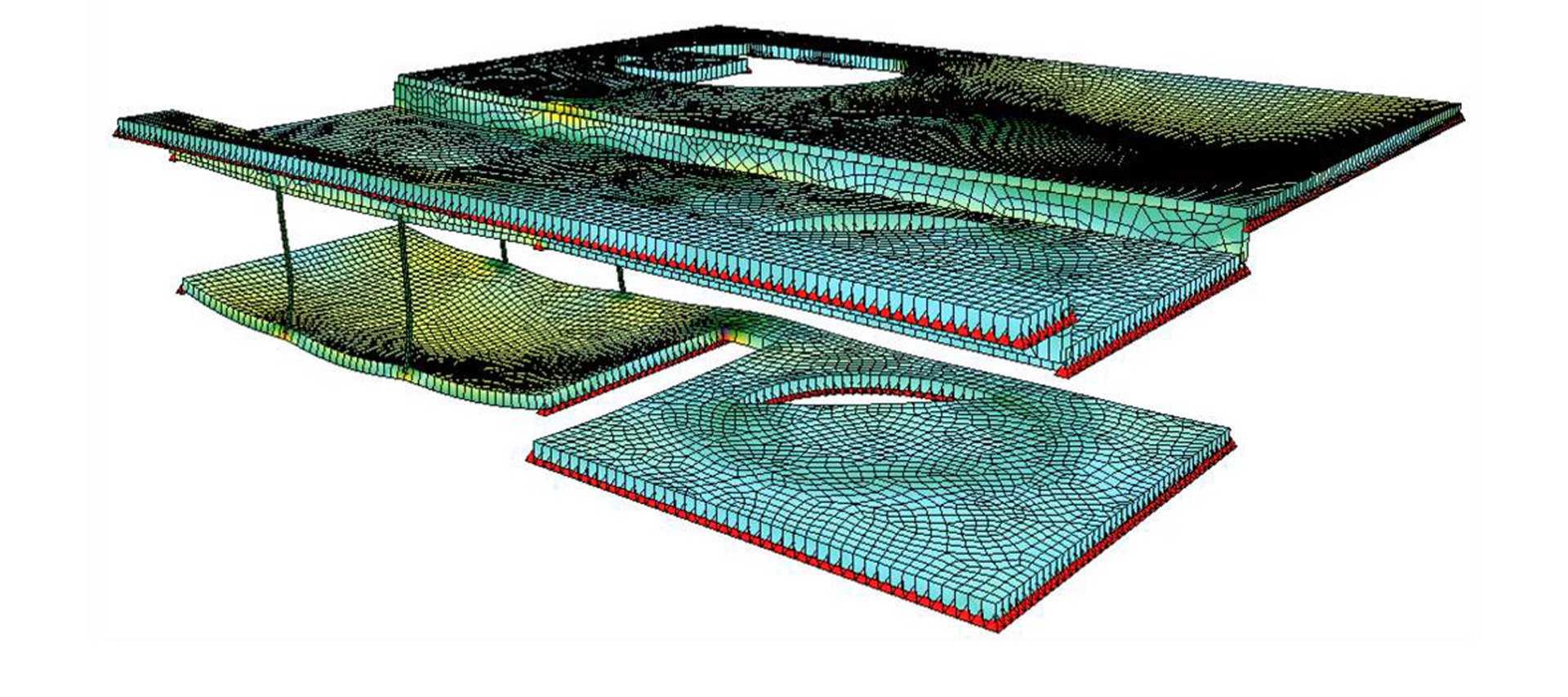

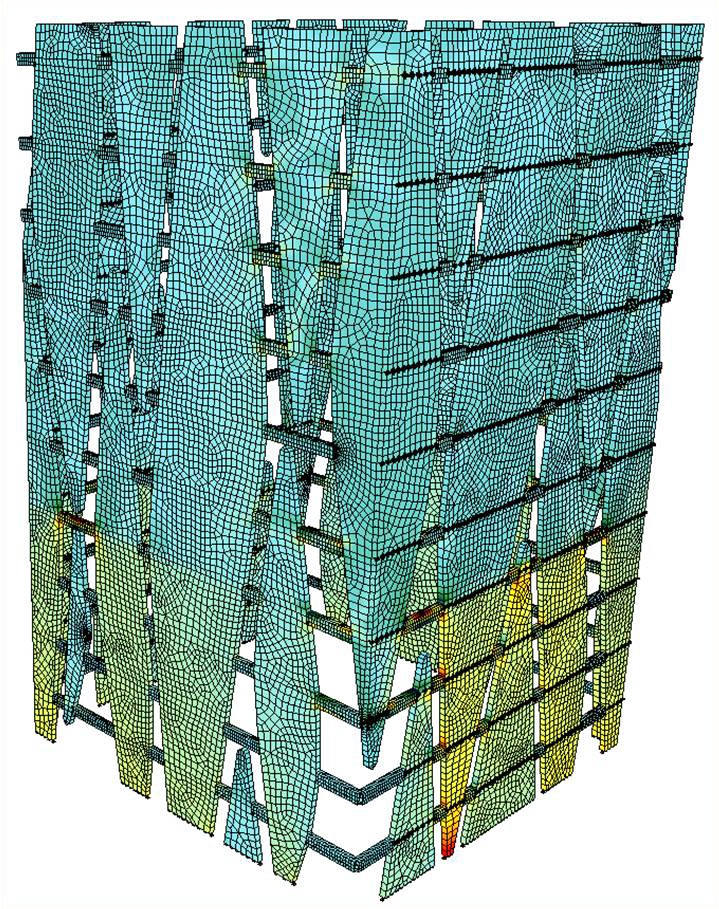

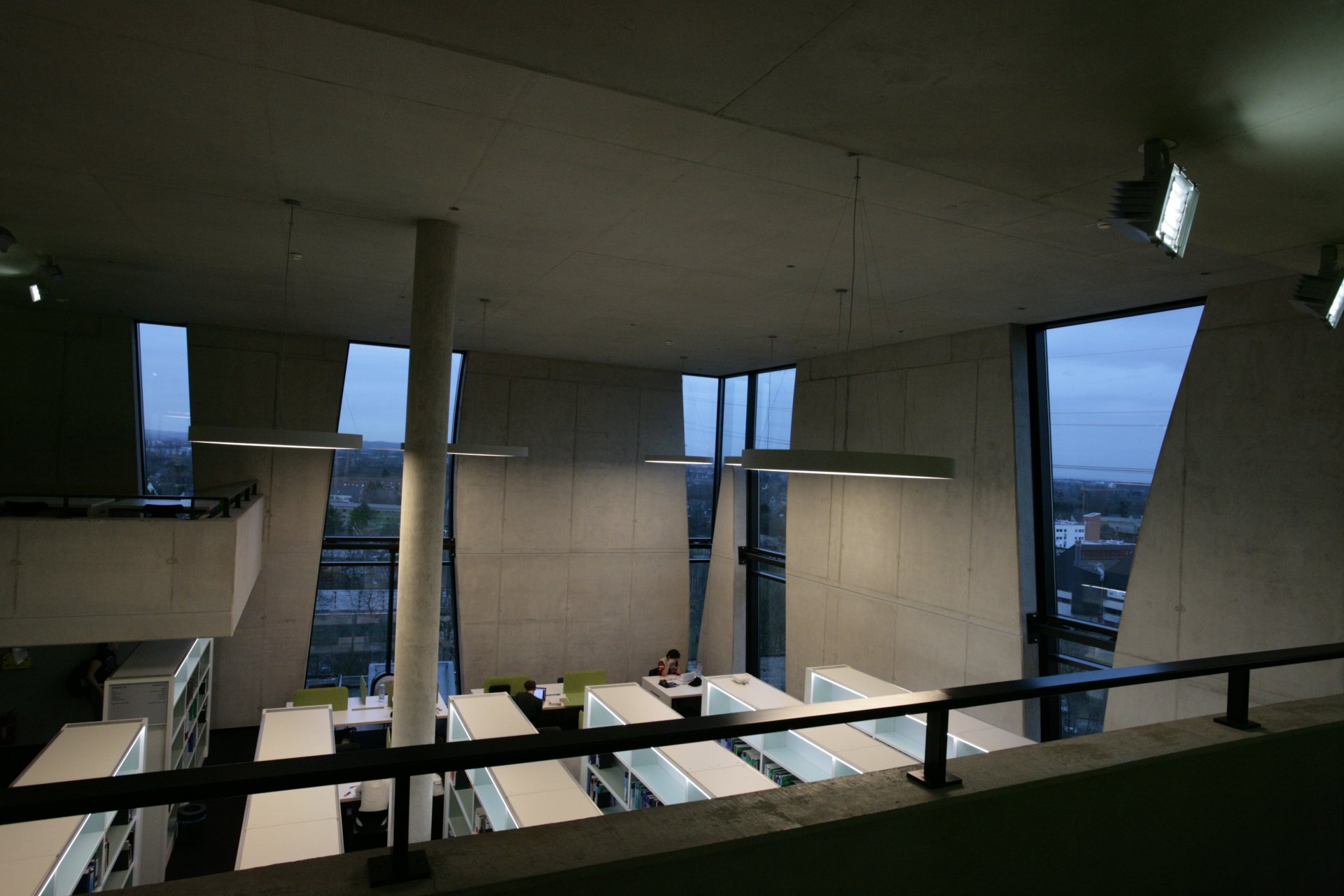

The whole structure is made of reinforced concrete using flat slabs spanning between core walls, columns or the load bearing façade. The façade is a key feature adding to the "Oase's" distinctive appearance. Most parts of this load-bearing façade do not continue to the foundation which makes the structural design of the entire building challenging. All structural concrete façade elements are connected to the slab edges forming a framework. This 3D-framework was designed considering the different construction stages. As a result of the close cooperation of the whole design team throughout the design or construction process, the building was finished in an impressively short time.
Universitätsklinikum Düsseldorf, Germany
HPP Hentrich-Petschnigg und Partner
GFA: 5,055 m²Service:
Auszeichnung Guter Bauten des BDA Düsseldorf 2014, Recognition
Leuchtturm: Medizinische Fachbibliothek O.A.S.E., Düsseldorf, in: DBZ, Bauverlag, München, 2/2012, S. 60 - 67
Tragende Haut: Fassadenkonstruktion der O.A.S.E., in: DBZ, Bauverlag, München, 02/2012, S. 68-73
