Roof over Tram Station "Buschmannshof"

en | de | fr
City, Country Herne, Germany
Year 2008–2013
Client corporation tram Herne-Castrop-Rauxel
Architect Hummert Architekten
Services Structural Engineering
Facts Roofing surface: 2,100 m² | Total weight dome: 80 t
Awards Auszeichnung Guter Bauten des BDA Bochum 2014, Recognition

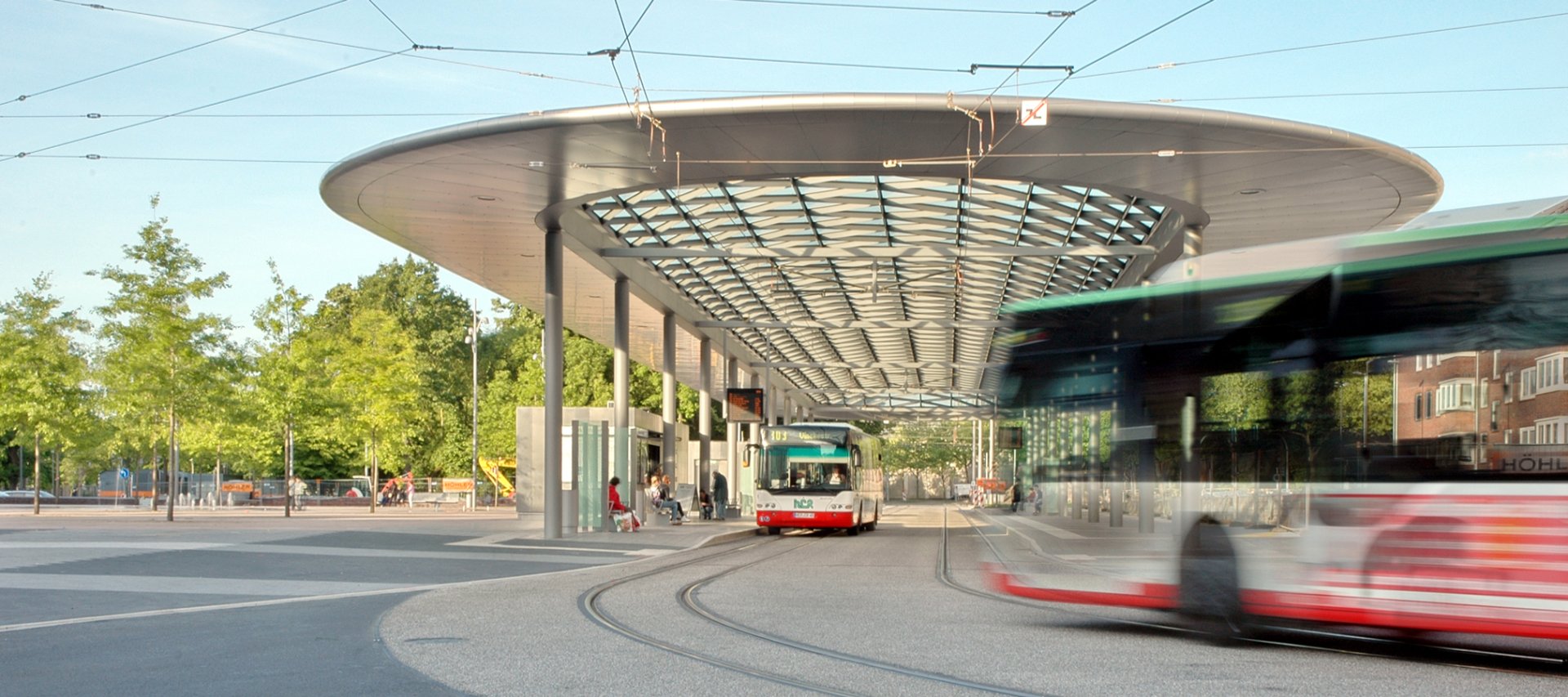

After the roofing of the central bus stop at Herne station, the second roofing now followed at the central bus stop Buschmannshof in the district of Wanne-Eickel. It consists of a steel frame construction of clamped supports and arched "pressure bars", which is connected to the supports via a torsion beam with a rectangular cross-section. Welded T-sections in two steel grades were used for the elements of the roof. The arches are spaced approx. 1.70 m apart, the purlin spacing varies. The purlins serve as bracing for the arch profiles. The roof cantilevers 3.60 m outwards.

The roof surface in the arched area consists of linear glazing with a maximum of 16 mm thick laminated safety glass. In the area of the cantilever arm, the roof surface or cladding consists of metal sheeting.
