Wien Museum Neu

en | de | fr | no | it | nl | hu
City, Country Vienna, Austria
Year 2016–2023
Client Wien Museum Projektgesellschaft
Architect Ferdinand Certov Architects, Winkler+Ruck Architekten
Services Structural Engineering
Facts GFA: 12,000 m² | Height: 25.1 m | Length: 58.7 m | Width: 40.3 m | Level: 6

The winning design for the museum’s renovation and extension emerged from an international competition in 2015. The concept comprises a notable extension of glass and reinforced concrete ‘floating’ on top of the existing building, which opened in 1959 and was designed by Oswald Haerdtl.

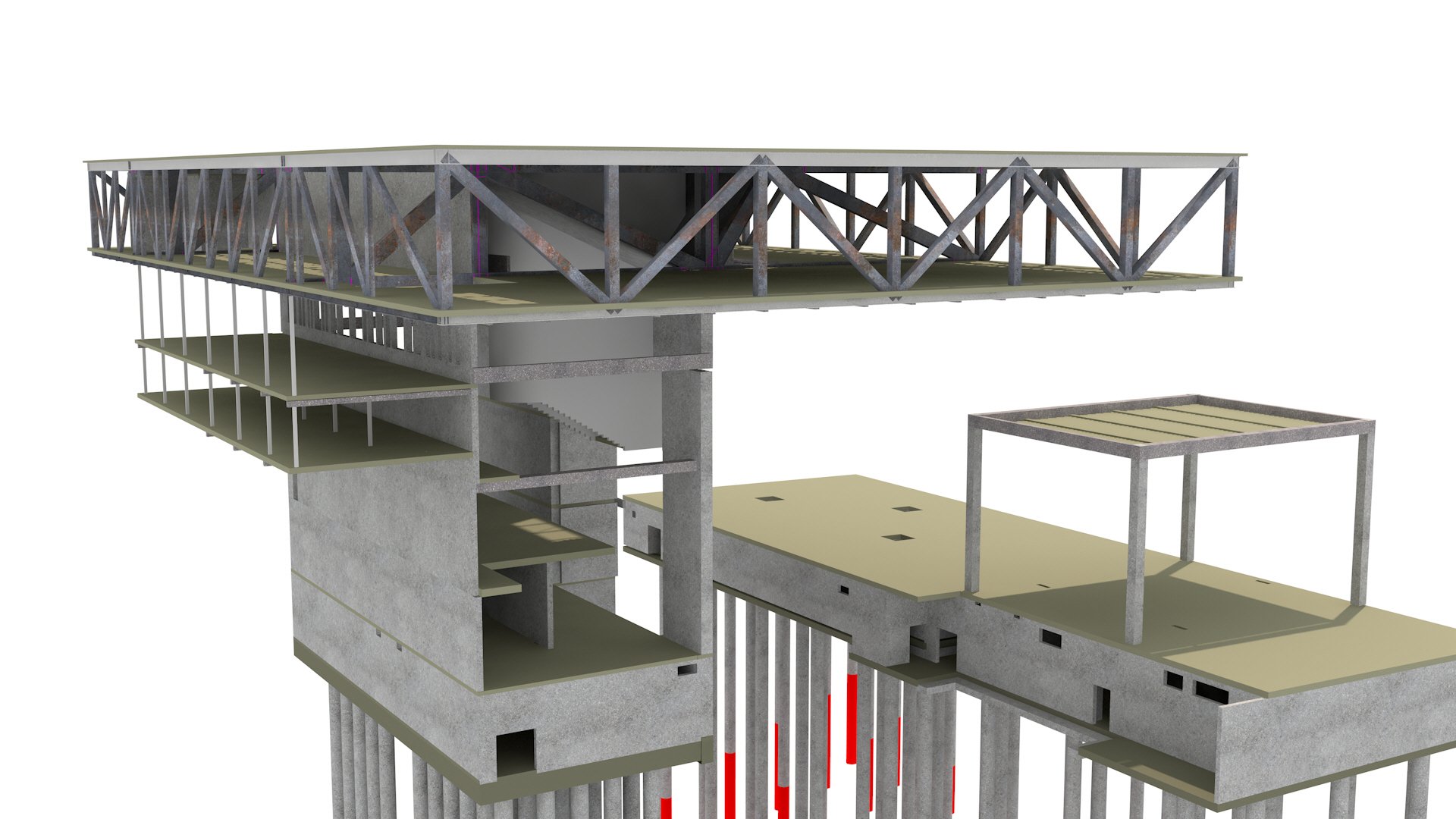

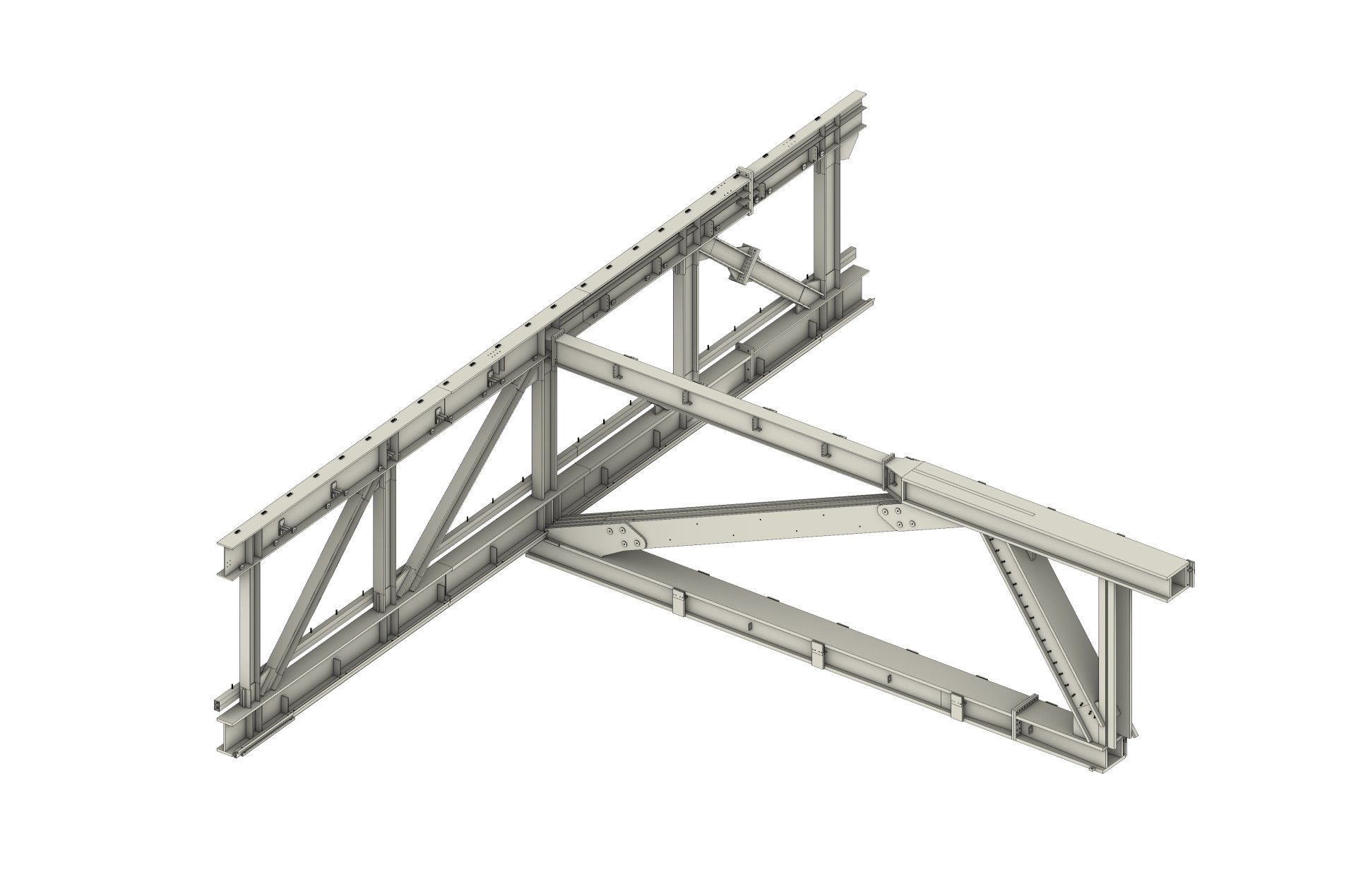

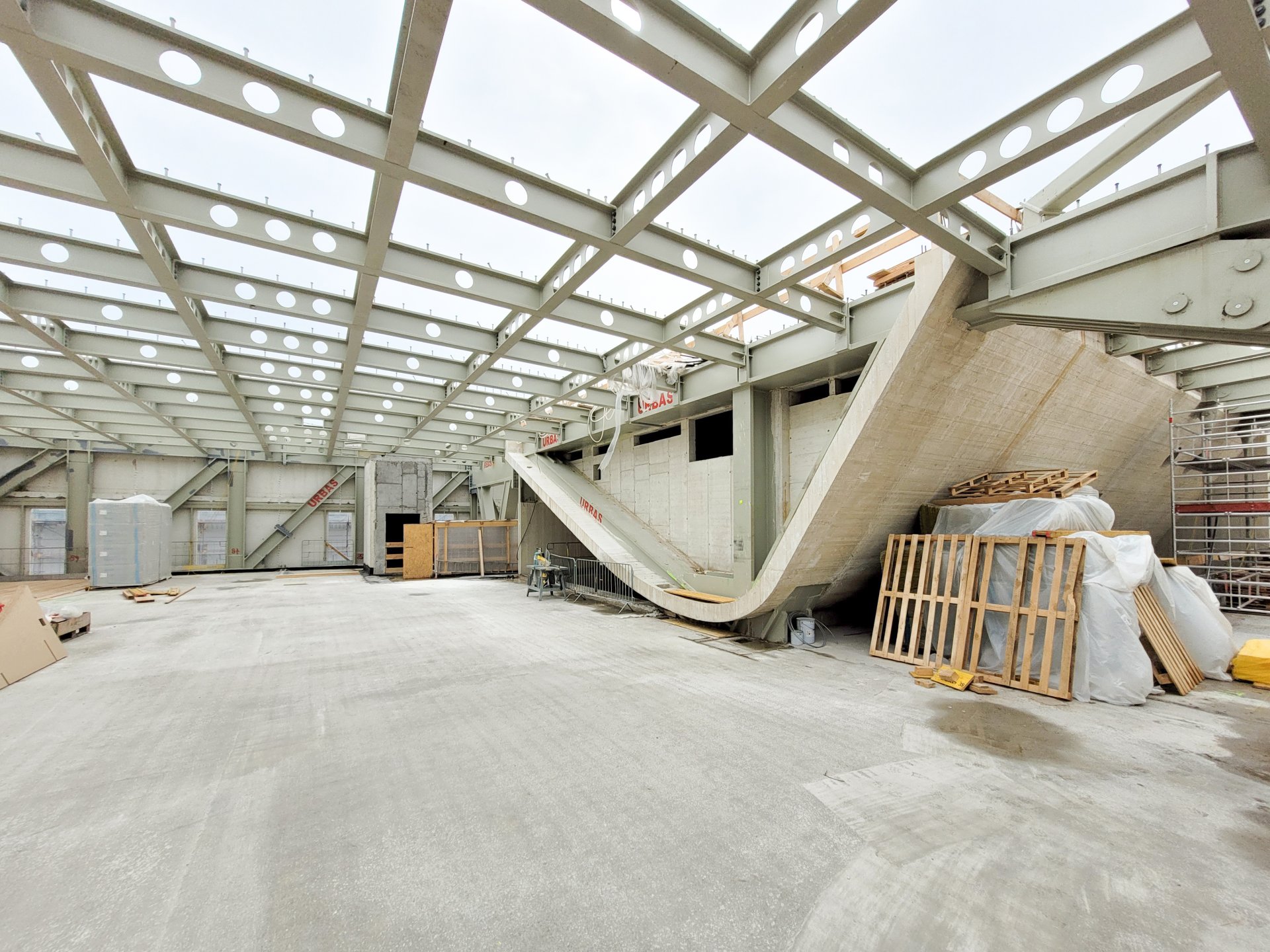

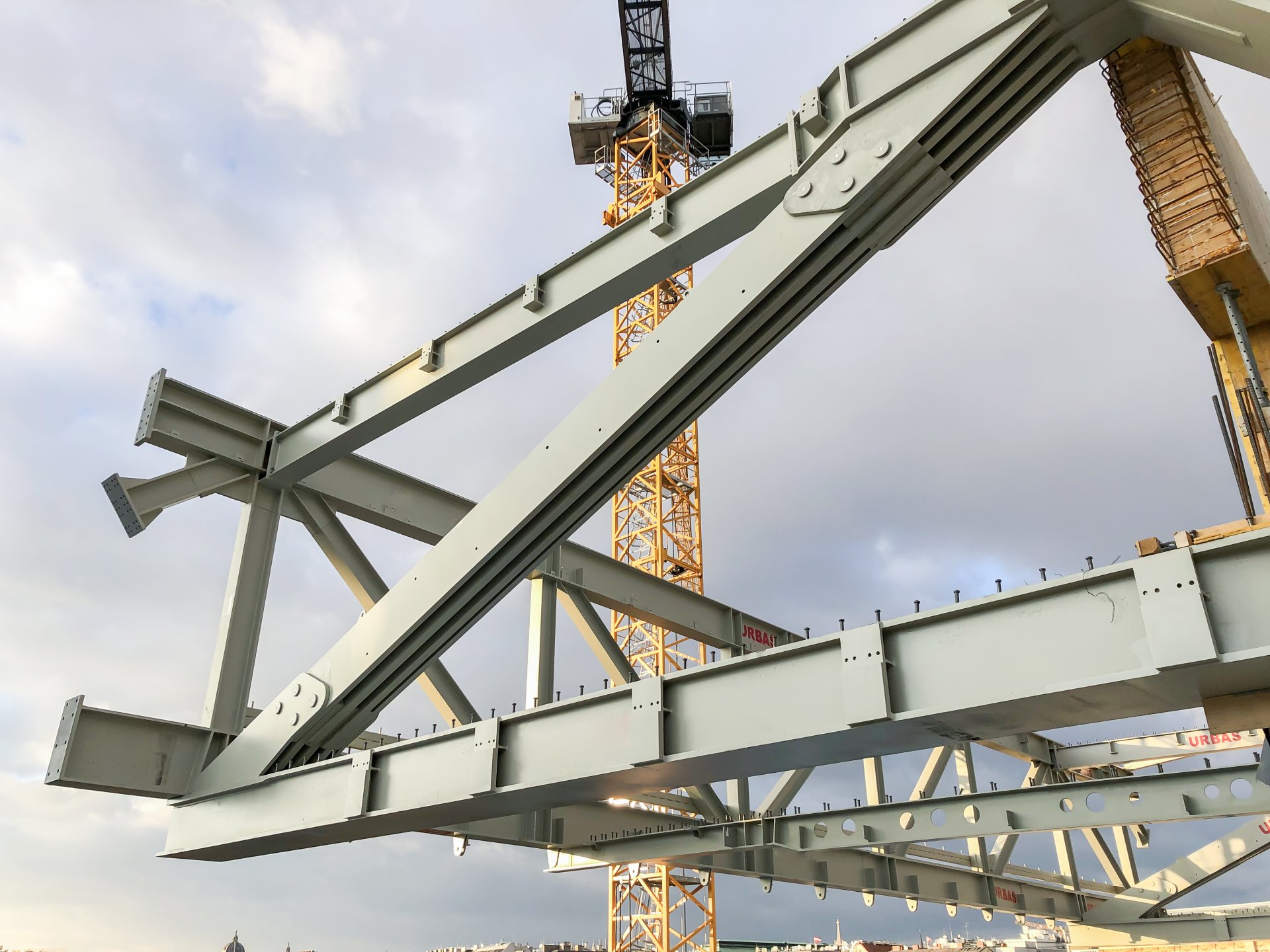

A distinctive aspect of the supporting structure design is integrating two separate building components: the existing structure and a new two-storey addition above it. The extension’s substantial cantilever is made possible by two-storey-high steel trusses positioned along the shorter sides of the inner courtyard, combined with a ring-shaped, point-supported steel truss anchored to the building shell on the fourth floor.

Structural Engineering
Building Retrofit
Extension
Cultural

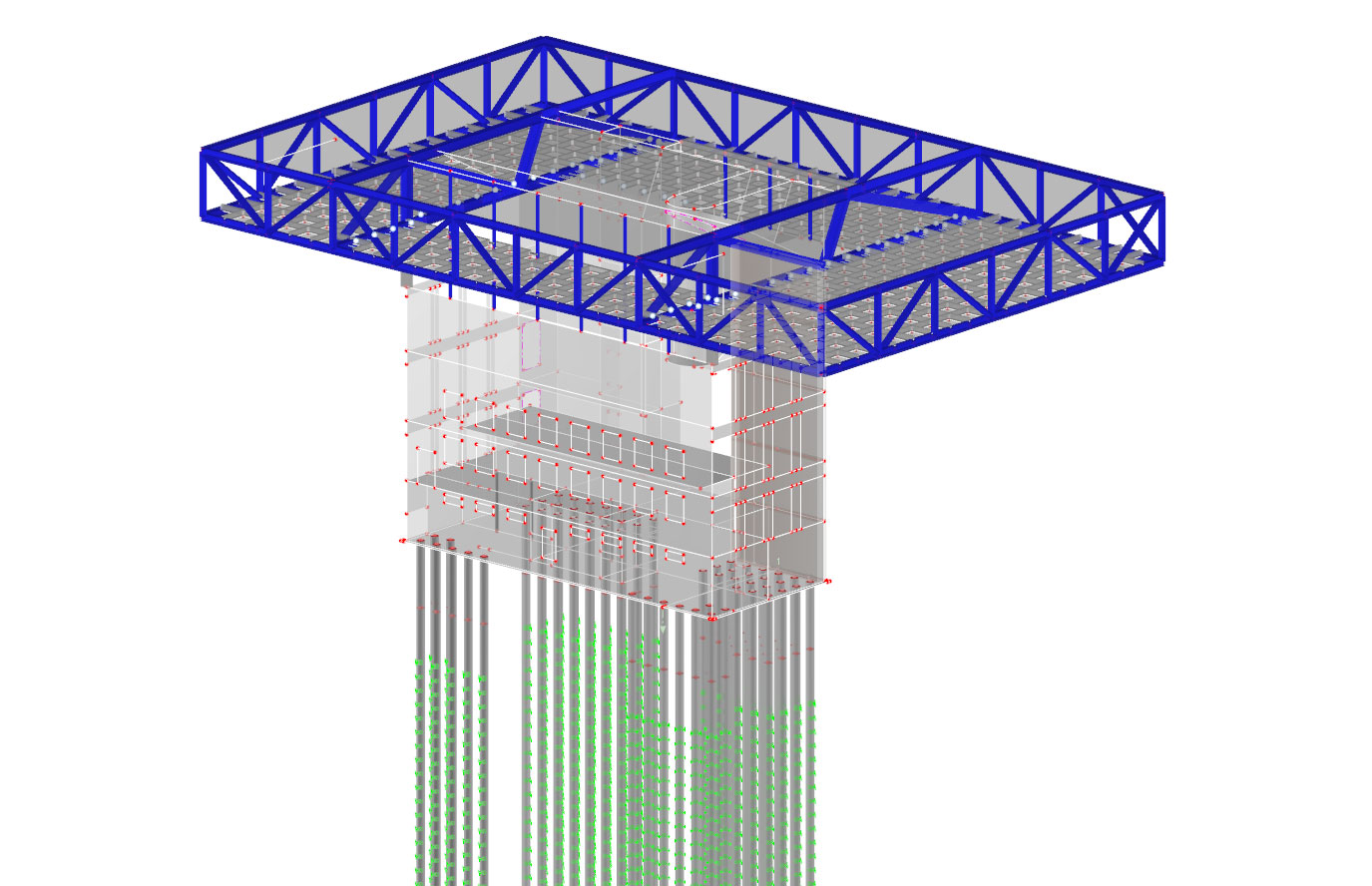

Planning
© B+G

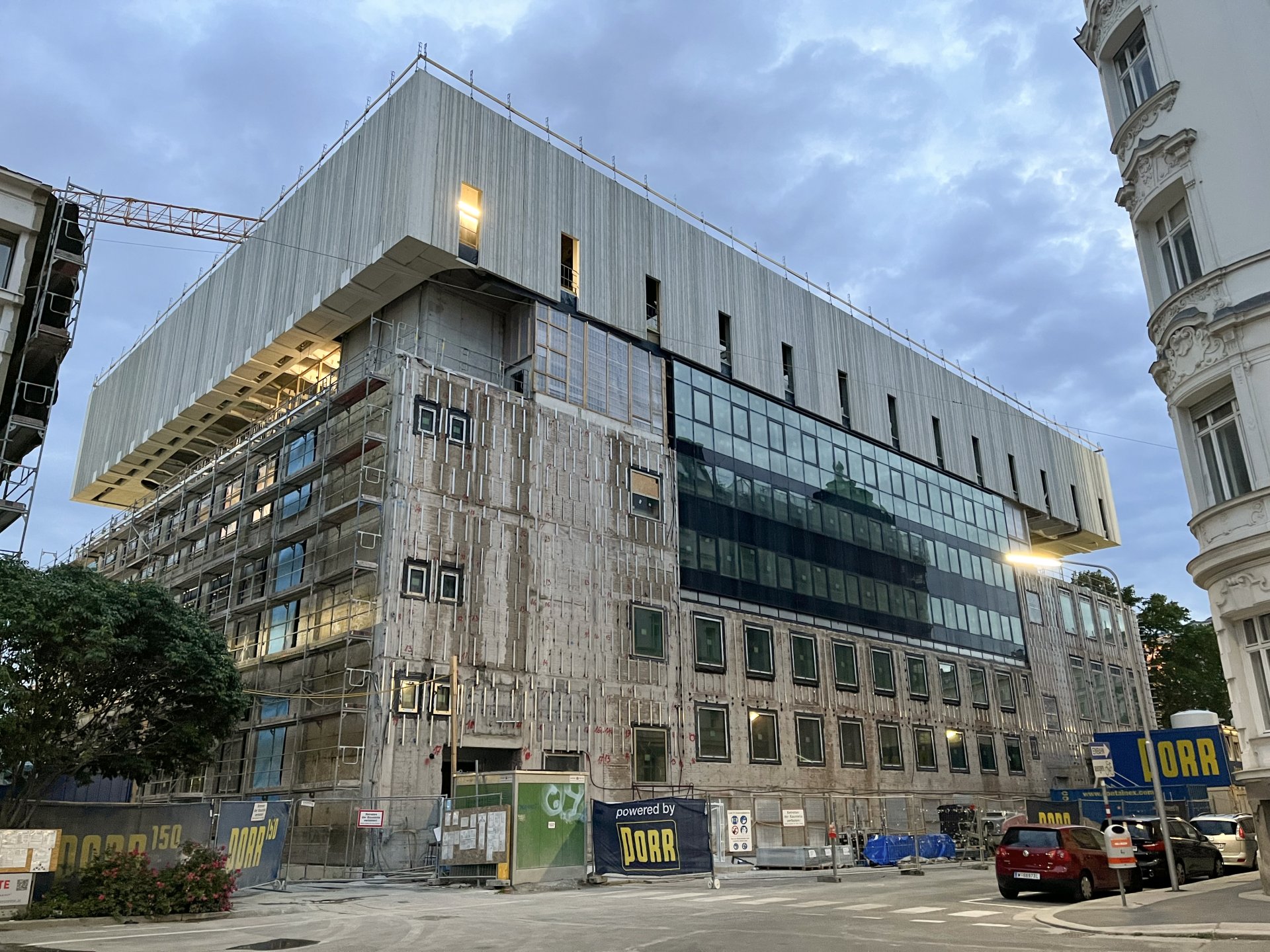

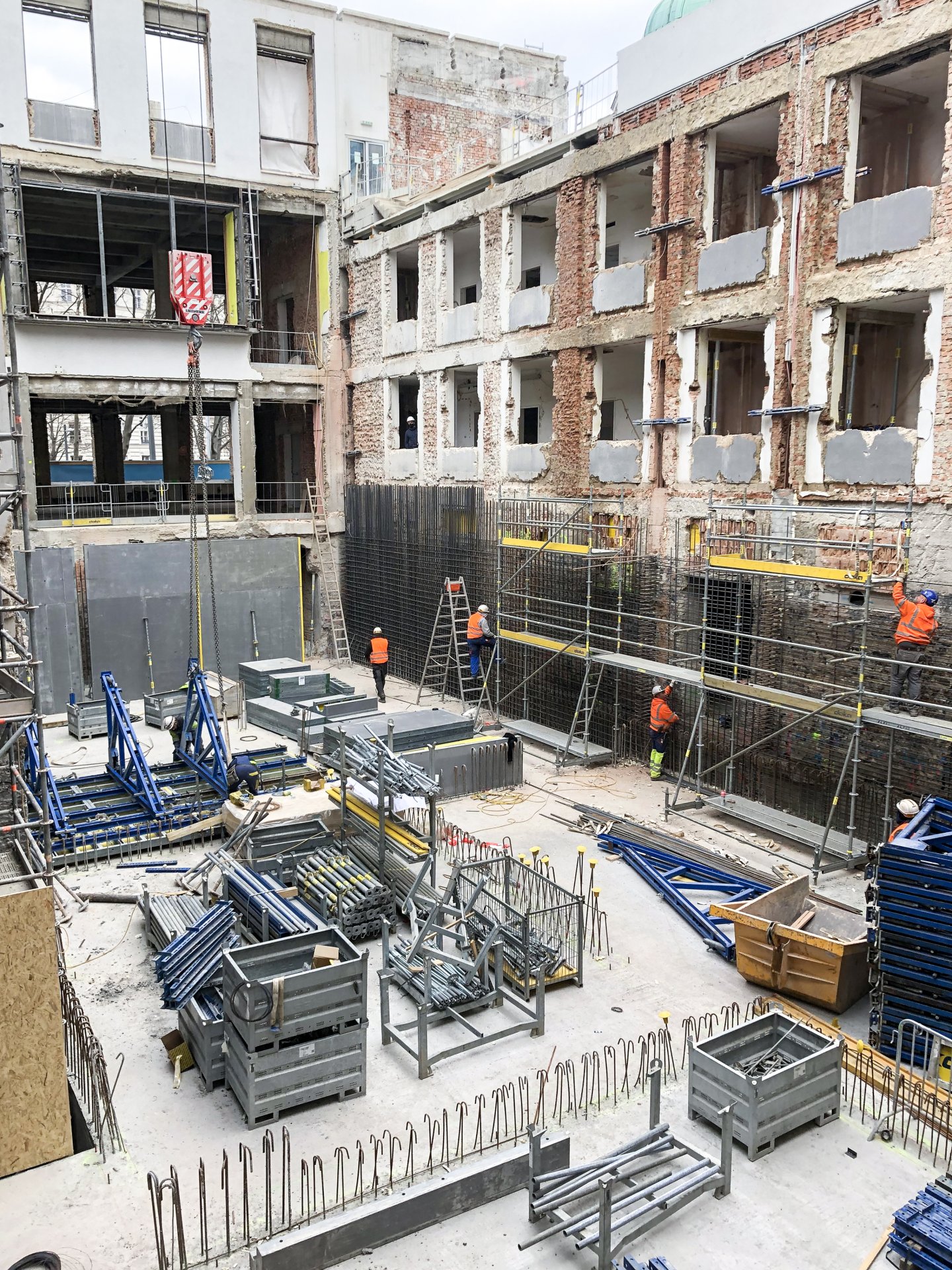

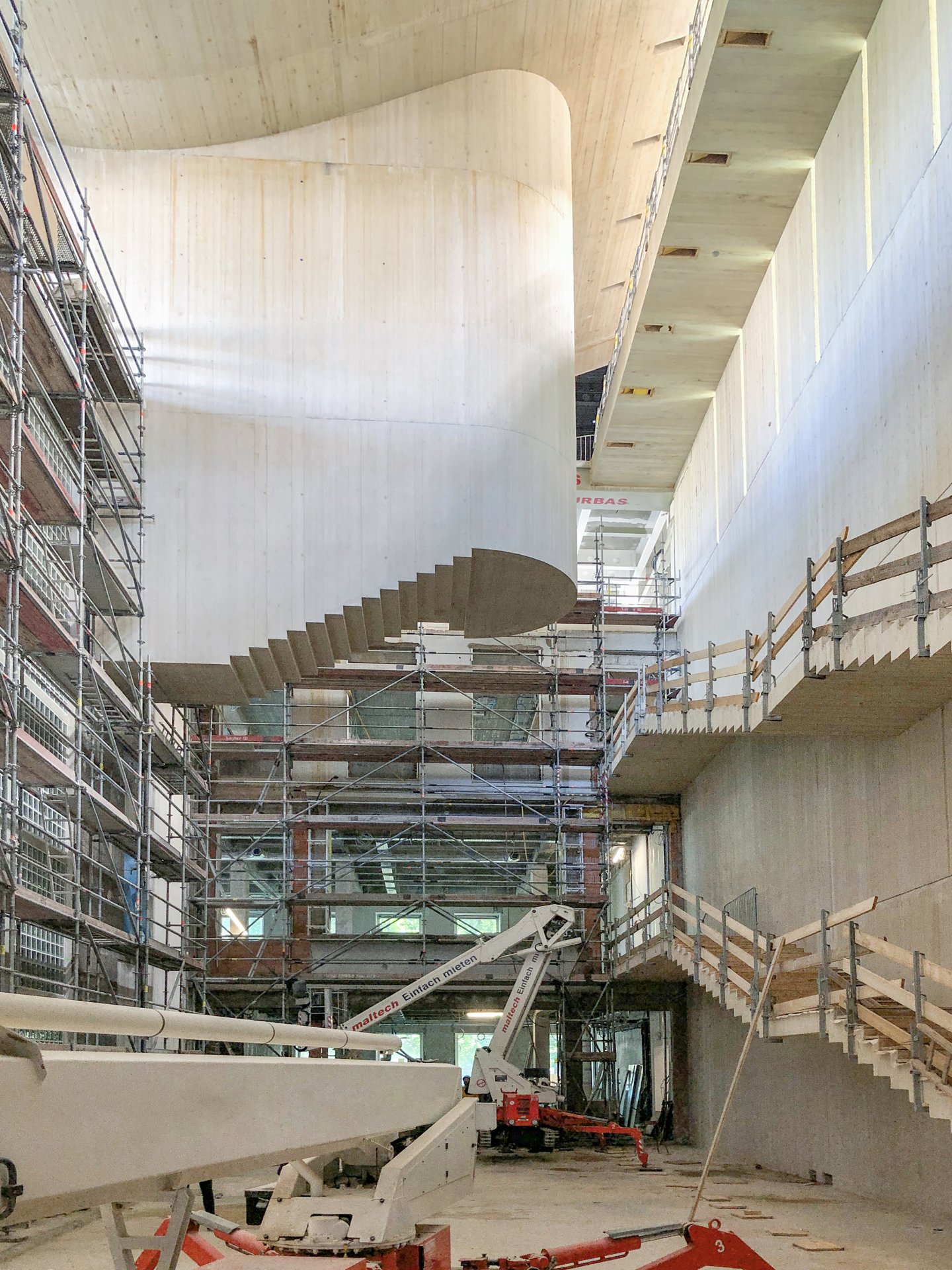

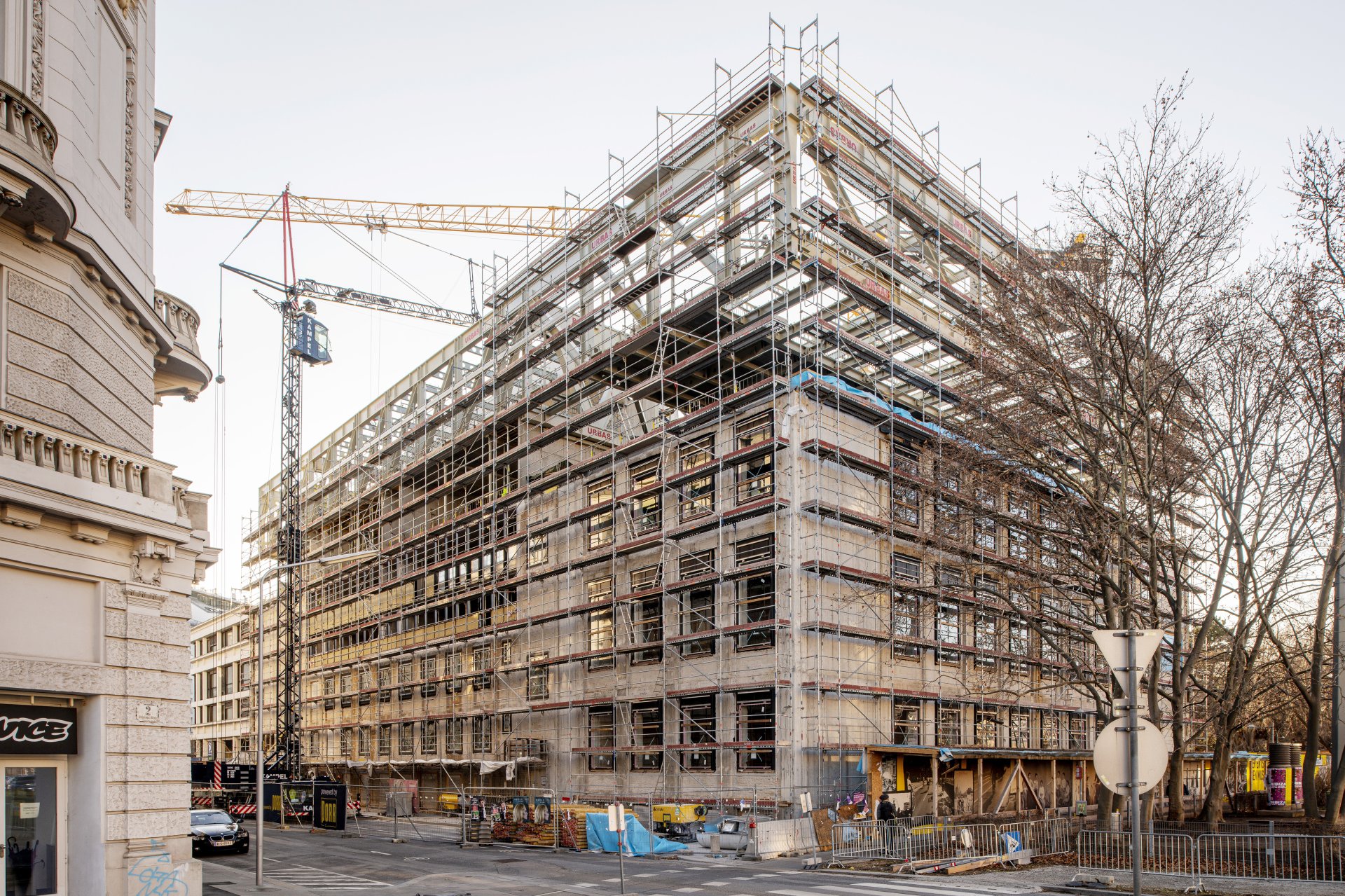

Construction
© Kollektiv Fischka

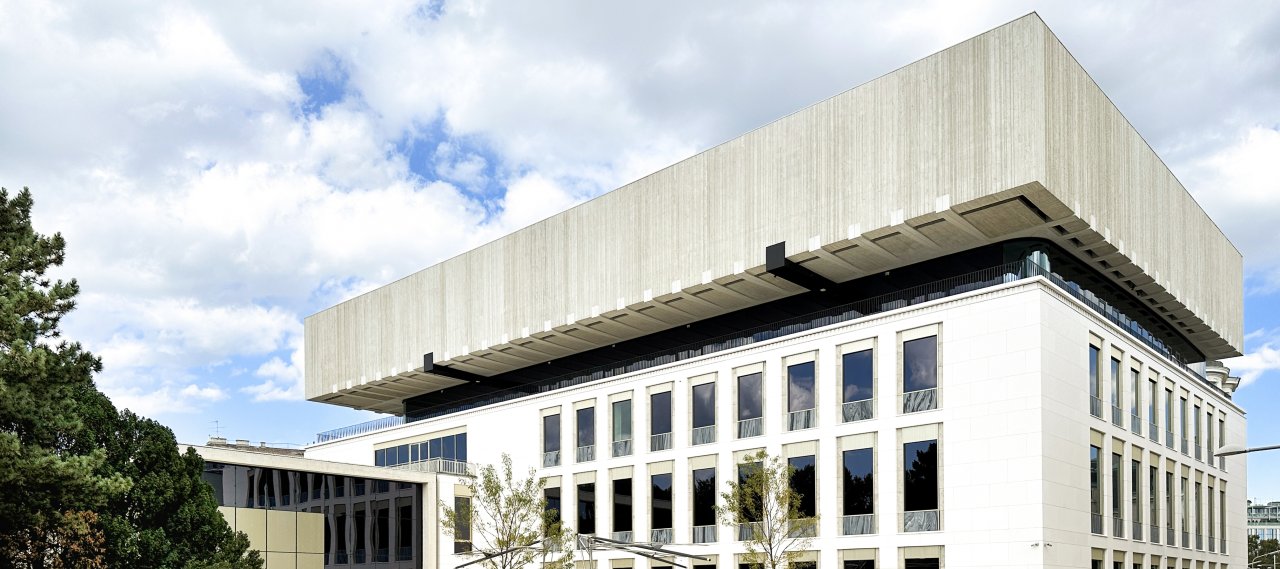

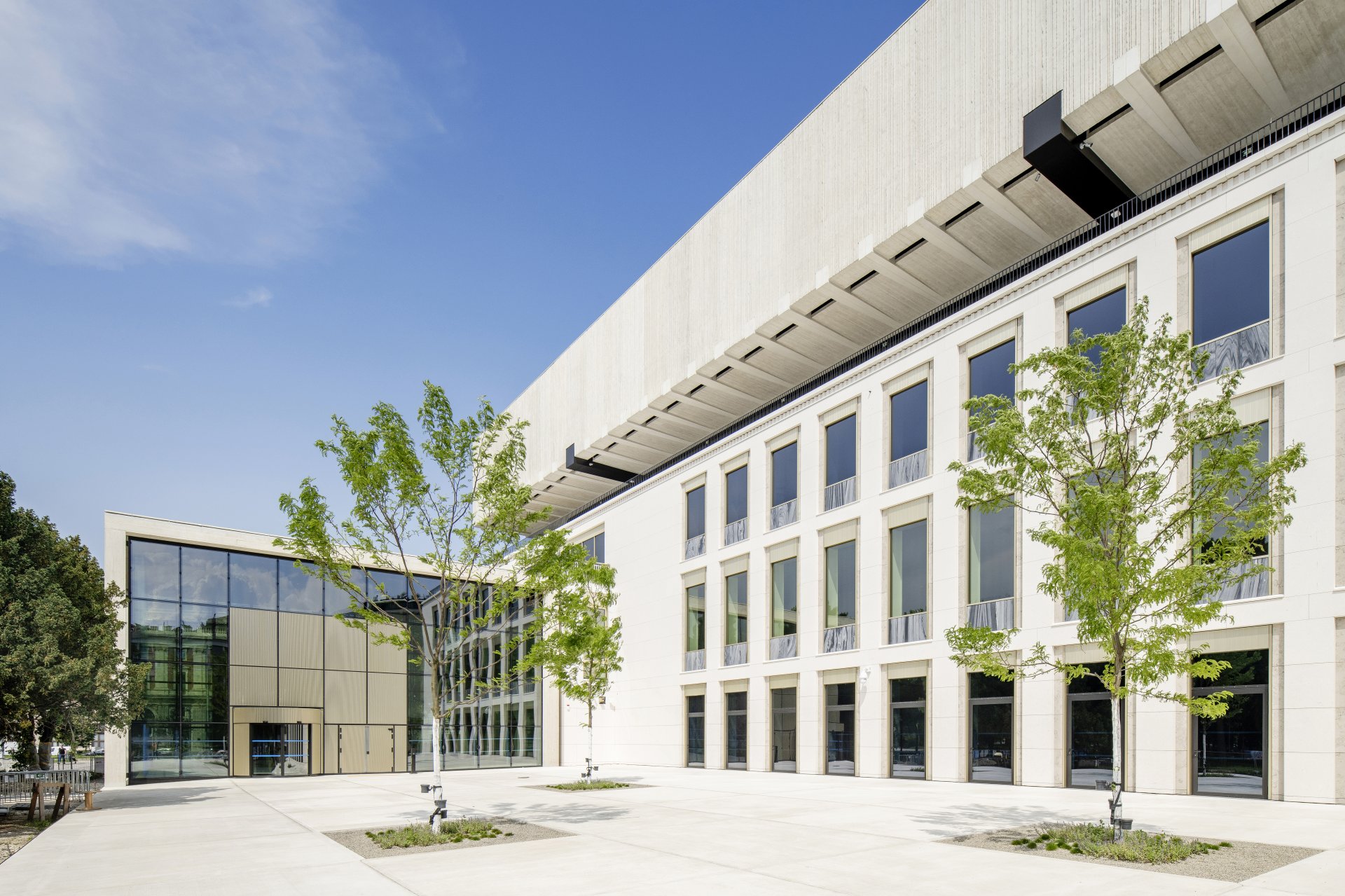

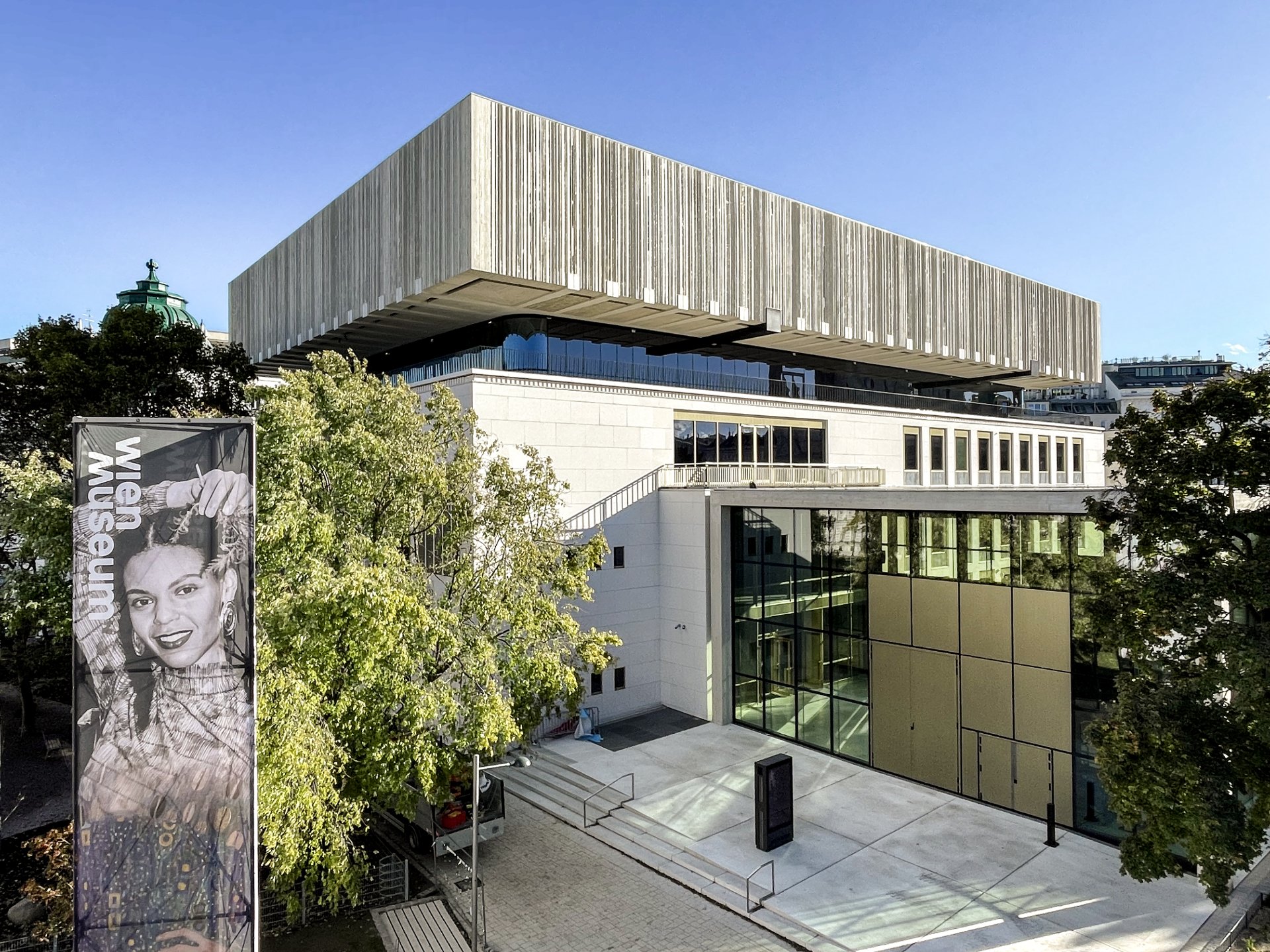

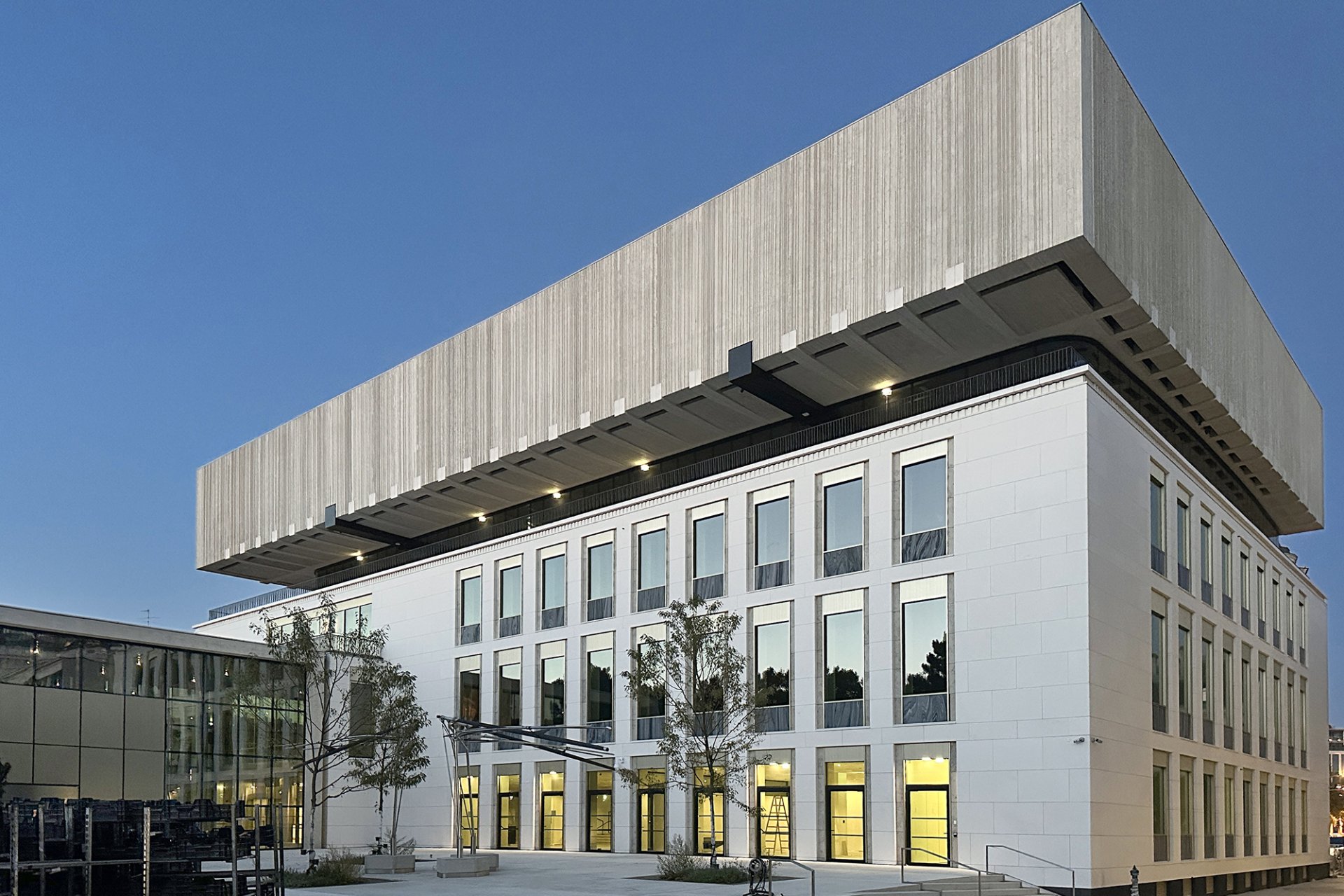

Completion
© B+G
